Description

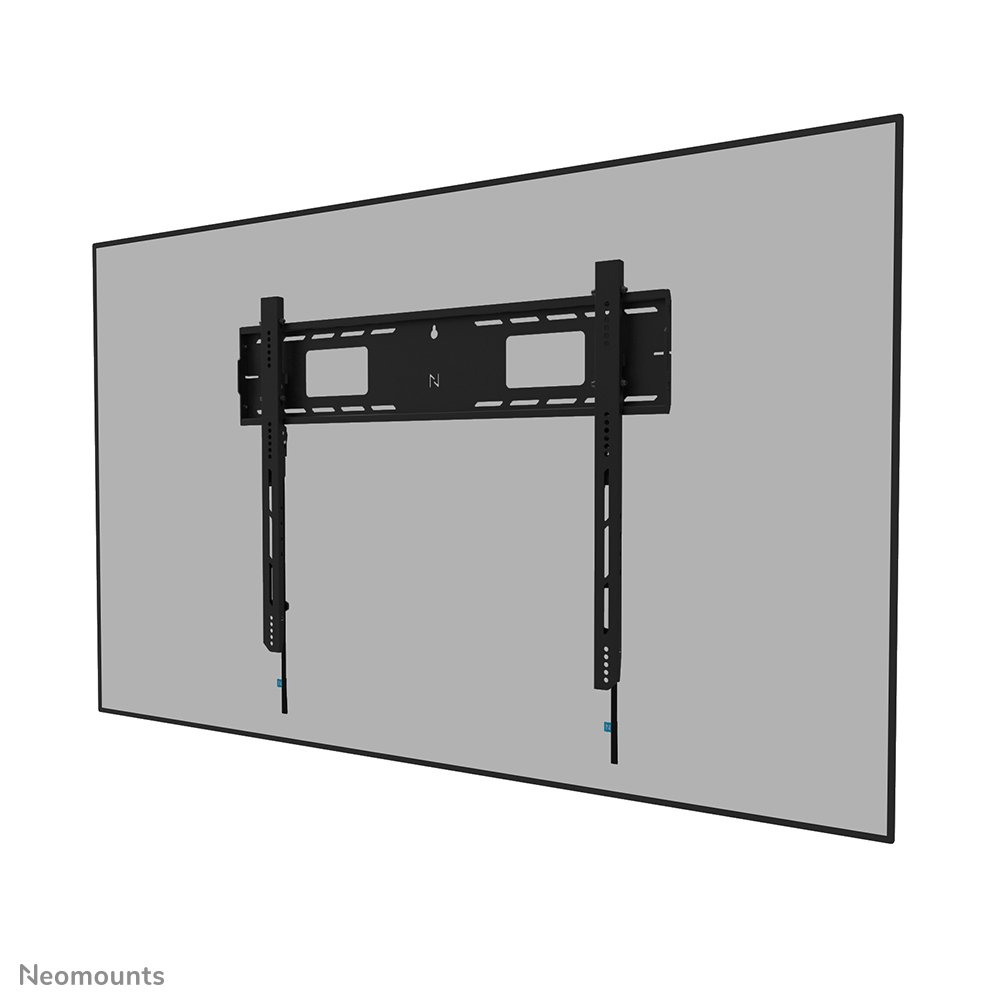

The wall mount is designed to provide the sturdiest and most stable touch screen experience. The brackets of the WL30-750BL18 feature depth adjustable wall supports on the lower brackets for better weight distribution and maximum stability. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it. The LEVEL-750 wall mount has a profile depth of 4,2 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x600 mm. Its quickly connectable wall plate allows for multiple screen mounting, while a clever kickstand service position provides easy access to cables and connectors. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables.
Specifications
| Min. screen size (inch) | 55 |
|---|---|
| Max. screen size (inch) | 98 |
| Max. weight (kg) | 125 |
| Screens | 1 |
| Min. VESA | 100x100 mm |
| Max. VESA | 800x600 mm |
| VESA pattern | 100x200, 200x400, 400x400, 400x600, 200x300, 300x300, 440x400, 500x400, 600x200, 600x300, 600x400, 680x300, 800x200, 400x300, 400x500, 600x500, 600x600, 800x500, 200x100, 300x100, 100x150, 120x120, 350x350, 400x200, 700x400, 500x500, 150x200, 800x450, 200x150, 100x100, 200x200, 300x200, 800x400, 800x600 |
| Mount | Wall |
| Type | Fixed |
| Height adjustment | 1 cm |
| Width (cm) | 88,6 cm |
| Depth (cm) | 4,2 cm |
| Height (cm) | 68,4 cm |
| Distance to wall (cm) | 4,2 cm |
| Cable management | Yes |
| Main material | Steel |
| Lockable | Lockable - Padlock not included |
| Net weight of product (kg) | 6.3 |
| Gross weight of packaging (kg) | 7.7 |
| Country of origin | China |
| EAN code | 8717371443306 |
Use and tips
A wall mount frees the floor and the furniture completely, which makes it the most durable option for meeting rooms, receptions and digital signage. Identify the wall type before installation: concrete and solid brick take the supplied anchors, while a hollow partition or a metal stud frame needs suitable fixings and often a reinforcement.
Frequently asked questions
Is my screen compatible?
This model accepts 55 to 98 inch, 125 kg maximum, VESA 100x100 to 800x600. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure, our contact page puts you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge: our Neomounts support page takes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
