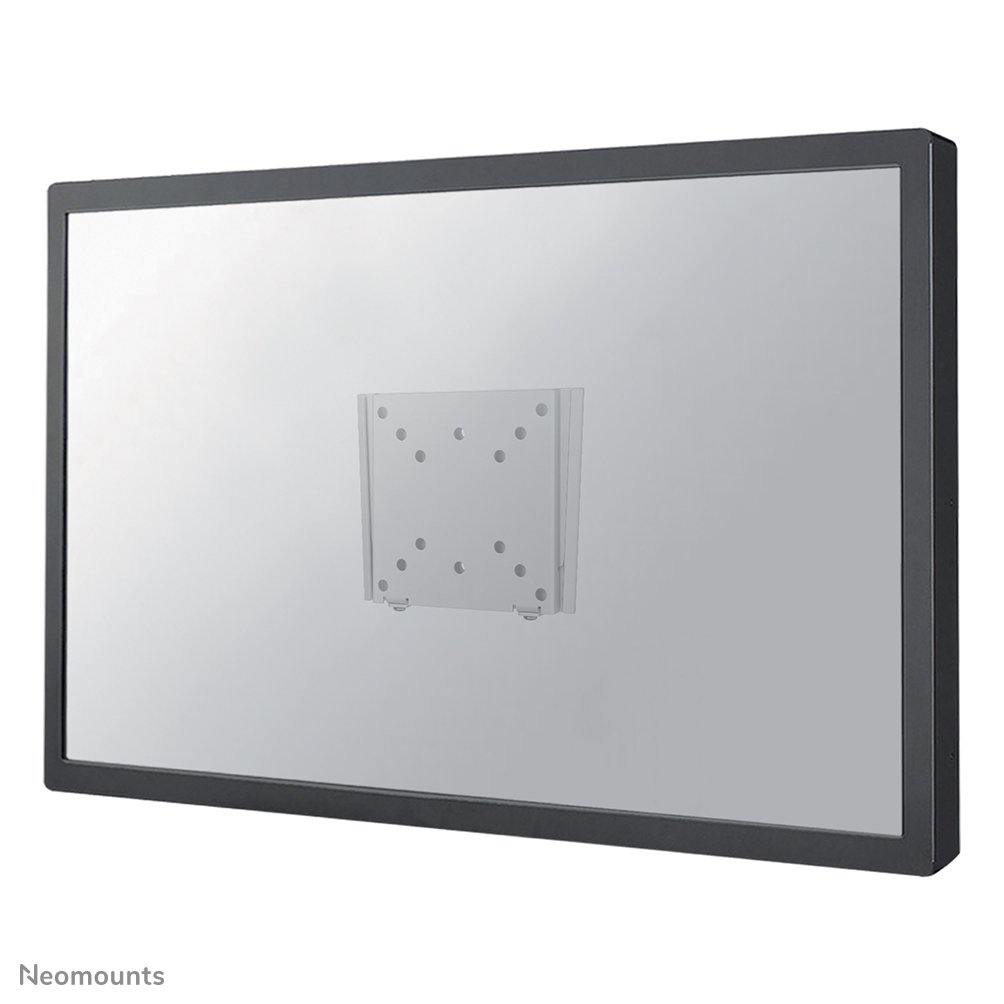

Depth of this mount is 1,5 centimetres. Neomounts FPMA-W25 is suitable for screens up to 30" (76 cm). The weight capacity of this product is 30 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 50x50 to 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates. Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema. All installation material including anti-theft lock is included with the product. The product can be locked by 2 screws on the below part of the plate.
Specifications
| Min. screen size (inch) | 10 |
|---|---|
| Max. screen size (inch) | 30 |
| Max. weight (kg) | 30 |
| Screens | 1 |
| Min. VESA | 50x50 mm |
| Max. VESA | 100x100 mm |
| VESA pattern | 75x75, 50x50, 100x100 |
| Mount | Wall |
| Type | Fixed |
| Distance to wall (cm) | 1,5 cm |
| Main material | Steel |
| Net weight of product (kg) | 0.55 |
| Gross weight of packaging (kg) | 0.6 |
| Country of origin | China |
| EAN code | 8717371441319 |
Use and tips
A wall mount frees the floor and the furniture completely, which makes it the most durable option for meeting rooms, receptions and digital signage. Identify the wall type before installation: concrete and solid brick take the supplied anchors, while a hollow partition or a metal stud frame needs suitable fixings and often a reinforcement.
Frequently asked questions
Is my screen compatible?
This model accepts 10 to 30 inch, 30 kg maximum, VESA 50x50 to 100x100. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure, our contact page puts you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge: our Neomounts support page takes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
