Description

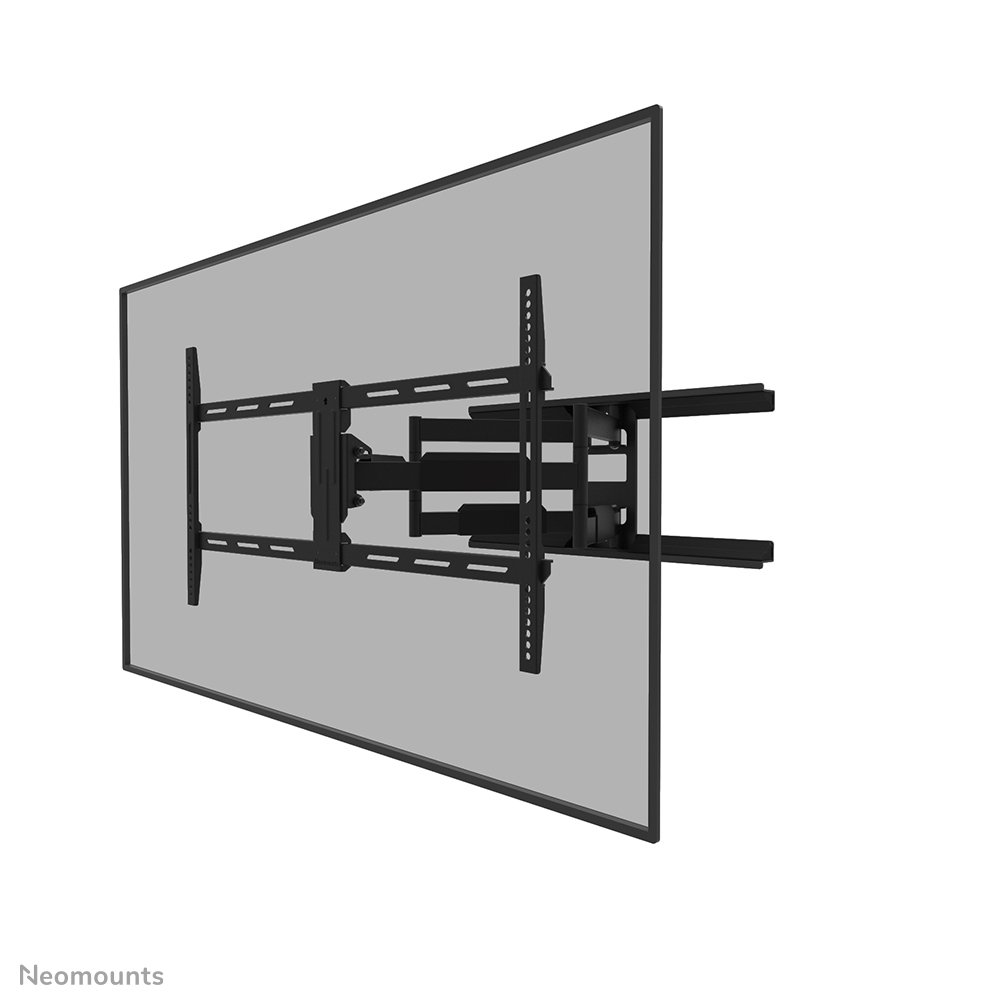

The mount can be levelled for the perfect installation. The LEVEL-550 wall mount has a depth of 5,5-71 cm and is suitable for screens that meet VESA hole pattern 200x100 to 800x400 mm. The WL40-550BL18 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.
Specifications
| Min. screen size (inch) | 43 |
|---|---|
| Max. screen size (inch) | 75 |
| Max. weight (kg) | 45 |
| Screens | 1 |
| Min. VESA | 200x100 mm |
| Max. VESA | 800x400 mm |
| VESA pattern | 200x400, 400x400, 200x300, 300x300, 440x400, 500x400, 600x200, 600x300, 600x400, 680x300, 800x200, 400x300, 200x100, 350x350, 400x200, 200x150, 200x200, 300x200, 800x400 |
| Mount | Wall |
| Type | Tilt, Swivel, Full motion |
| Tilt (degrees) | +15°, -3° |
| Rotate (degrees) | +3°, -3° |
| Swivel (degrees) | 54° |
| Width (cm) | 85 cm |
| Depth (cm) | 5,5 cm |
| Height (cm) | 43,6 cm |
| Distance to wall (cm) | 5,5-71 cm |
| Cable management | Yes |
| Main material | Steel |
| Lockable | Not lockable |
| Net weight of product (kg) | 9.9 |
| EAN code | 8717371448769 |
Use and tips
A wall mount frees the floor and the furniture completely, which makes it the most durable option for meeting rooms, receptions and digital signage. Identify the wall type before installation: concrete and solid brick take the supplied anchors, while a hollow partition or a metal stud frame needs suitable fixings and often a reinforcement.
Frequently asked questions
Is my screen compatible?
This model accepts 43 to 75 inch, 45 kg maximum, VESA 200x100 to 800x400. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure,our contact pageputs you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge:our Neomounts support pagetakes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
