Description

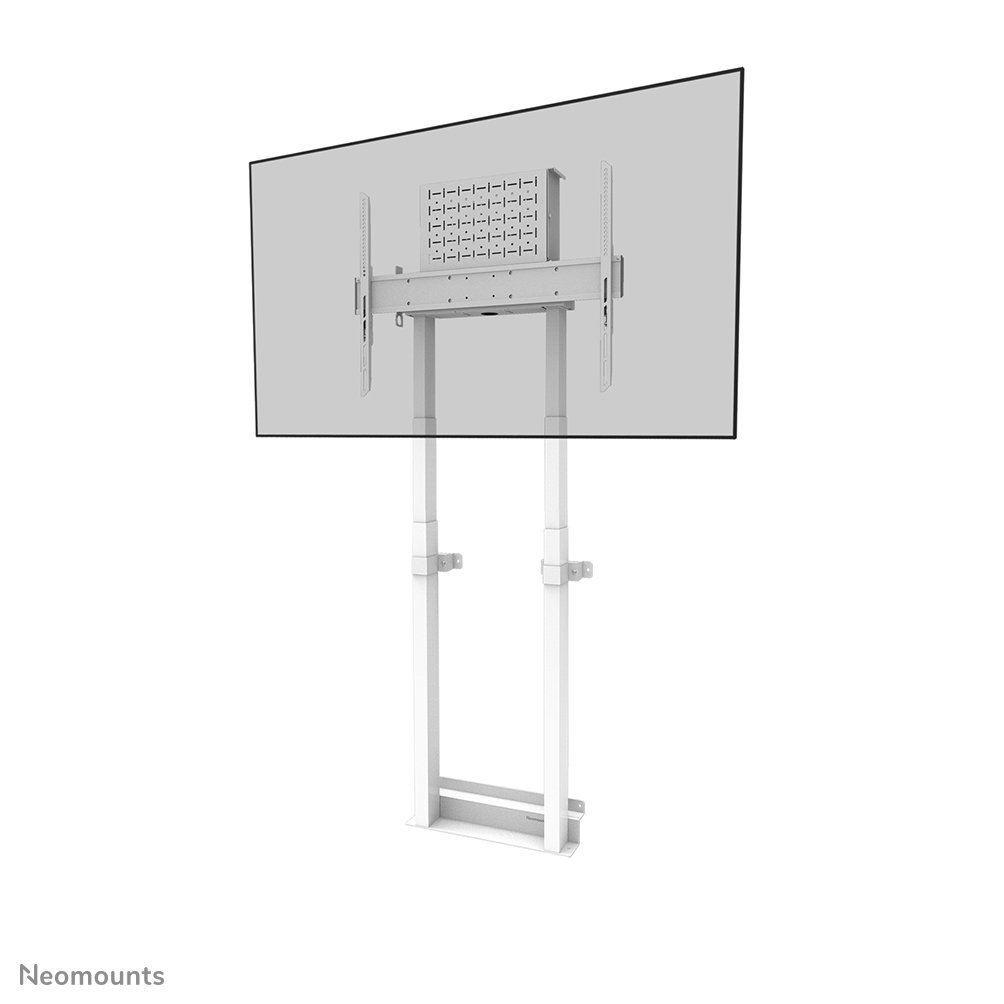

A lockable, ventilated hardware compartment with cable opening is included and optional for installation. The floor plate of the mount, with space for floor baseboards, ensures solid and secure installation. The included cable duct, optional to install, conceal and route cables from wall mount to screen. The MOVE Lift wall mount is packed partially pre-assembled, to ensure fast and easy installation and can be locked using a padlock (not included). Additionally, the WL55-875WH1 is compactly packed for optimized transportation and storage. The universal AFL-875WH1 and AV1-875BL videobar & multimedia kits are optionally available and enable the installation of a separate cam shelf and multimedia device shelf to the trolley. Included to the kits are an adapter for respectively the Logitech Rally Bar (Mini) or Bose Professional VB-S/VB1.
Specifications
| Min. screen size (inch) | 55 |
|---|---|
| Max. screen size (inch) | 100 |
| Max. weight (kg) | 110 |
| Screens | 1 |
| Min. VESA | 100x100 mm |
| Max. VESA | 800x600 mm |
| VESA pattern | 100x200, 200x400, 400x400, 400x600, 200x300, 300x300, 300x400, 440x400, 500x400, 600x200, 600x300, 600x400, 680x300, 800x200, 400x300, 400x500, 600x500, 600x600, 800x500, 200x100, 300x100, 100x150, 120x120, 350x350, 400x200, 500x500, 100x100, 200x200, 300x200, 800x400, 800x600 |
| Mount | Wall |
| Type | Fixed |
| Height adjustment | 98-163 cm |
| Width (cm) | 88,8 cm |
| Depth (cm) | 17,2 cm |
| Height (cm) | 196,5 cm |
| Distance to wall (cm) | 17,2 cm |
| Cable management | Yes |
| Main material | Steel |
| Lockable | Lockable - Padlock not included |
| Net weight of product (kg) | 33.9 |
| Gross weight of packaging (kg) | 38 |
| Country of origin | China |
| EAN code | 8717371449742 |
Use and tips
A wall mount frees the floor and the furniture completely, which makes it the most durable option for meeting rooms, receptions and digital signage. Identify the wall type before installation: concrete and solid brick take the supplied anchors, while a hollow partition or a metal stud frame needs suitable fixings and often a reinforcement.
Frequently asked questions
Is my screen compatible?
This model accepts 55 to 100 inch, 110 kg maximum, VESA 100x100 to 800x600. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure, our contact page puts you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge: our Neomounts support page takes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
