Key strengths
- Built-in front-loading thermal printer, no extra device on the counter
- Fanless Intel Celeron N97 processor, silent operation with no dust intake
- Compact aluminum housing on a folding stand, suited to narrow counters
- Compatible with Windows 11 and Linux for most point of sale software
Description

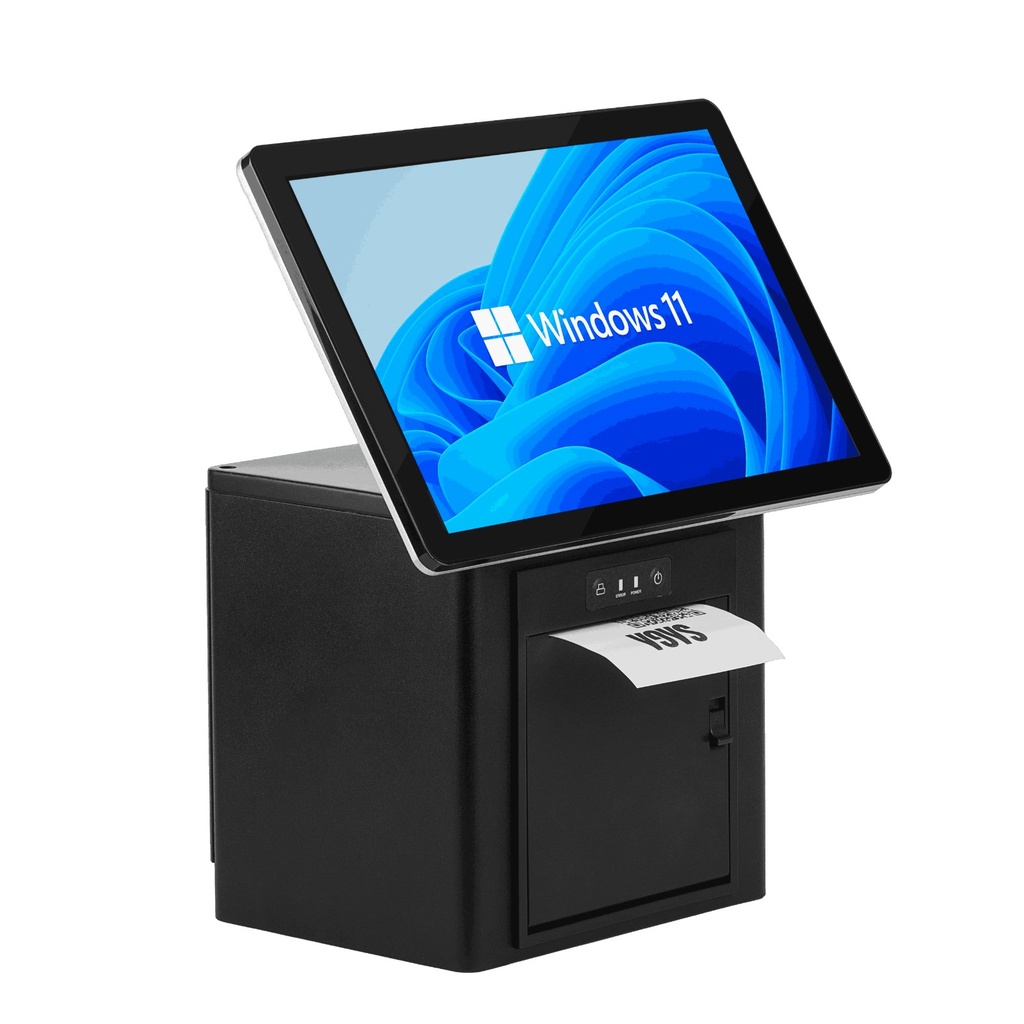

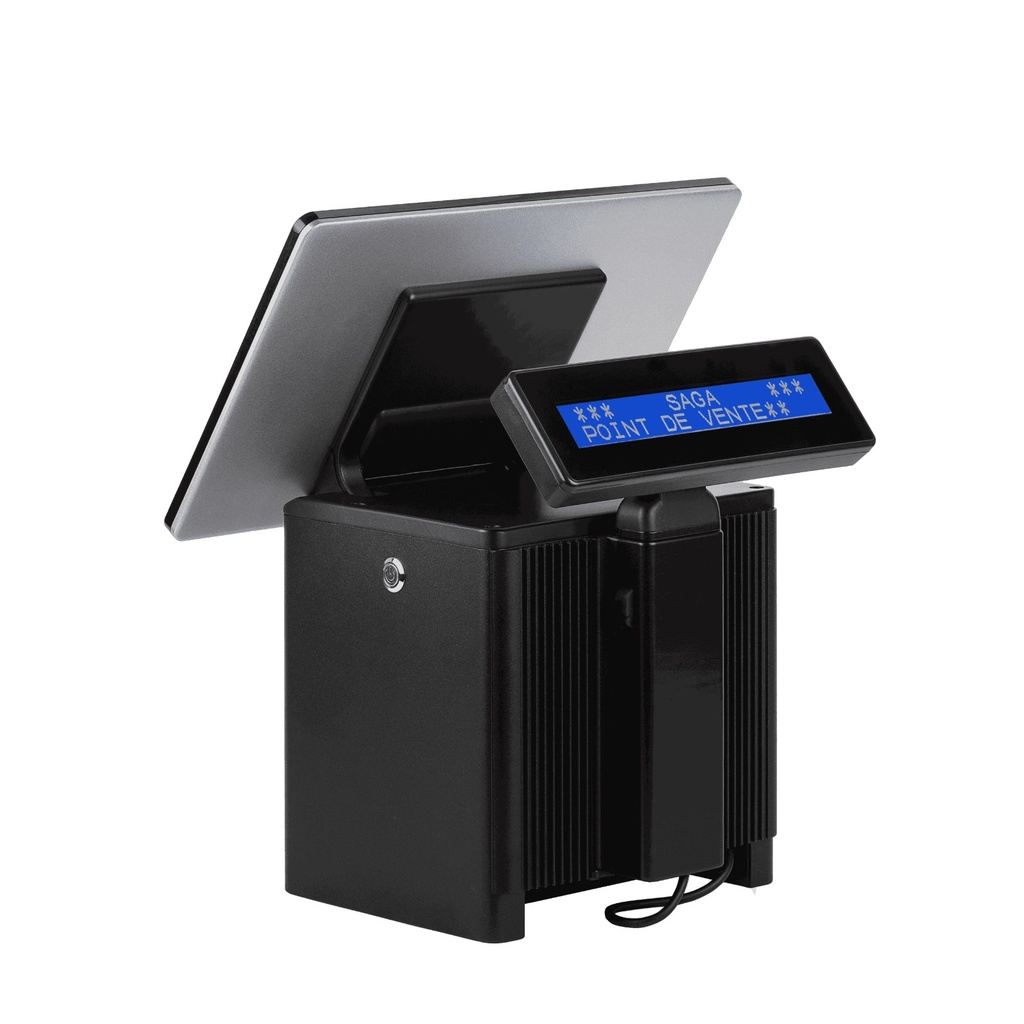

An all-in-one point of sale solution, this terminal was designed for environments where space is precious and packs everything needed to take payments into an ultra-compact format. Its 14 inch 16:9 LED screen (1280 x 800, 350 cd/m²) is fitted with a projected capacitive touch panel. It runs on a fanless Intel Celeron N97 Alder Lake processor clocked at 2.60 GHz, with 8 GB of DDR4 memory and a 128 GB M.2 SSD. The built-in thermal printer (160 mm/s, front loading) removes the need for an external printer, and a 2-line customer display is available as an option. Connectivity includes six USB ports, one COM port, two RJ45, one LAN, one RJ11 and an HDMI output. The aluminum housing sits on a folding ABS stand, and the external 12 V power supply is included. The terminal runs Windows 11 or Linux, with the Windows 11 IoT license available as an option. On this 14 inch version, a 2D scanner and a Dallas reader can be built in as options, which is not possible on the 10.1 inch version.
Specifications
| Screen | 14 inch LED, projected capacitive touch, 1280 x 800, 350 cd/m² |
|---|---|
| Aspect ratio | 16:9 |
| Processor | Intel Celeron N97 (Alder Lake), 2.60 GHz, fanless |
| Memory | 8 GB DDR4 SO-DIMM |
| Storage | 128 GB M.2 SSD |
| Interfaces | 6 x USB, 1 x COM, 2 x RJ45, 1 x LAN, 1 x RJ11, 1 x HDMI |
| Built-in printer | 80 mm thermal (72 mm print width), 160 mm/s, USB and serial, front loading |

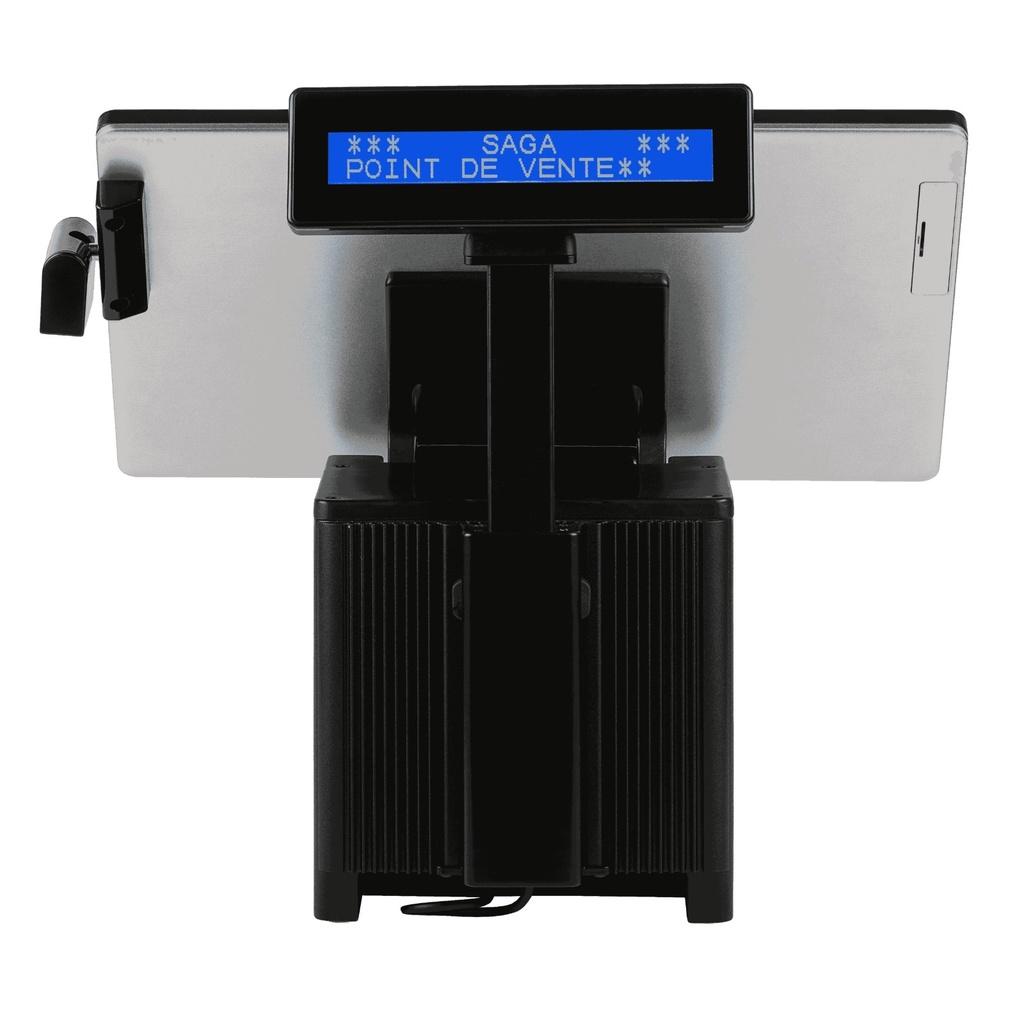

| Customer display | 2 lines x 20 characters (optional) |
| 2D scanner and Dallas reader | Available as built-in options |
| Housing | Aluminum |
| Stand | Folding, ABS plastic |
| Power supply | External 12 V 7.5 A, included |
| Operating system | Windows 11 or Linux (Windows 11 IoT license optional) |
| Warranty | 3 years, return to workshop |
Delivery and warranty
Free shipping: shipped directly from the manufacturer’s warehouse, handed to the carrier within 48 to 72 business hours after order confirmation. Manufacturer warranty: 3 years return to workshop; 36 month on-site (next business day) extension available as an option. A UPS is required to keep the warranty of integrated systems (Perimatic terms).
Use and tips
This register fits on the counter of a shop, bakery, salon or kiosk, and can also serve as an extra checkout in a larger store. Plan for 80 mm thermal paper rolls for the built-in printer, a Windows 11 IoT license if your software runs on Windows, and a UPS to protect the system from power cuts.
Frequently asked questions
Which software and equipment does this product work with?
Open PC architecture: the terminal accepts point of sale software for Windows 11 or Linux. Its USB, COM, RJ45, RJ11 and HDMI ports connect a cash drawer, scanner, payment terminal or customer display.
How is it delivered?
Free shipping: shipped directly from the manufacturer’s warehouse, handed to the carrier within 48 to 72 business hours after order confirmation. Tracking is sent by email as soon as the carrier picks up the parcel.
What is the warranty?
Manufacturer warranty: 3 years return to workshop; 36 month on-site (next business day) extension available as an option. After-sales service is provided by Perimatic, maker of the SAGA brand; contact us for any support request.
