Key strengths
- Terminal, SGPR-200III printer and Windows 11 IoT license combined in a single item
- Windows 11 IoT Enterprise LTSC 2024 preinstalled: the station is ready for the point of sale software
- Fast SGPR-200III 80 mm thermal printer, connecting via USB, serial or Ethernet
- 14 mm aluminum housing with adjustable joint and built-in Wi-Fi as standard
Description

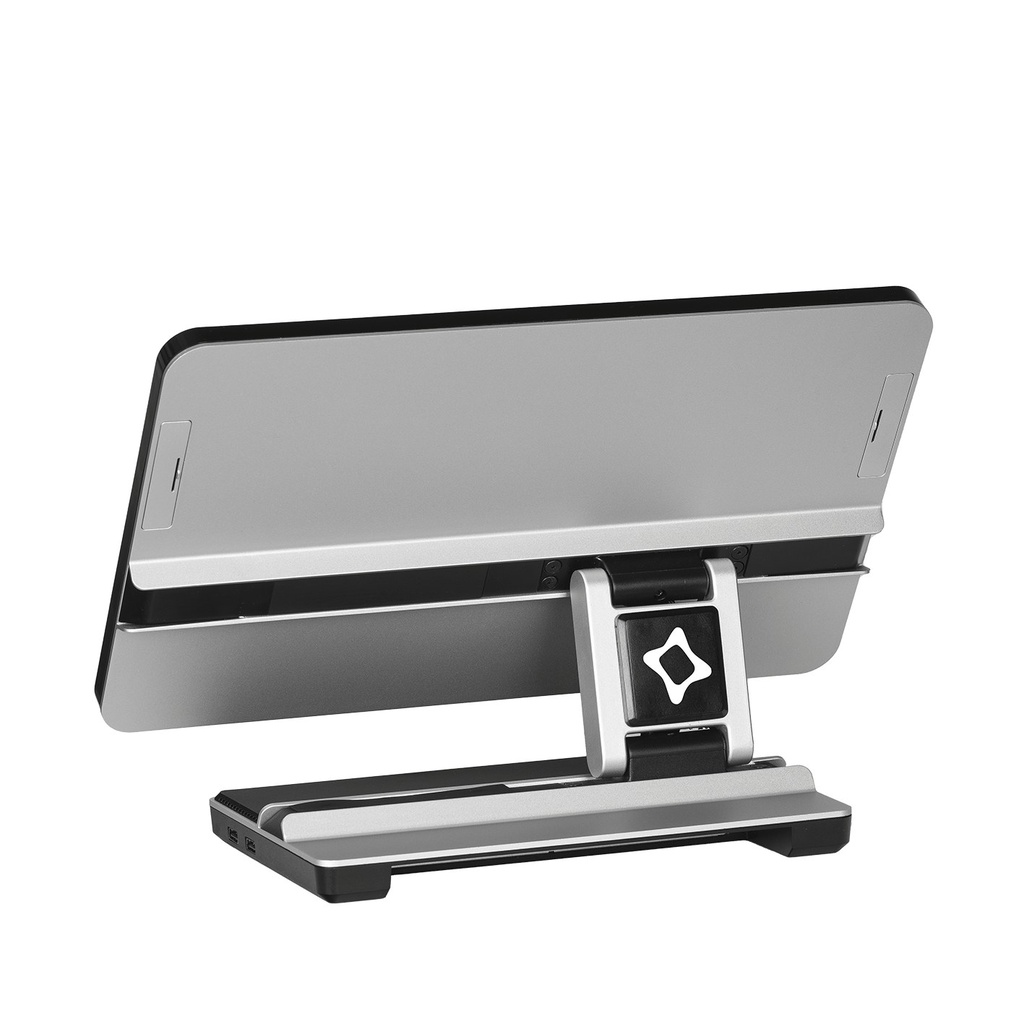

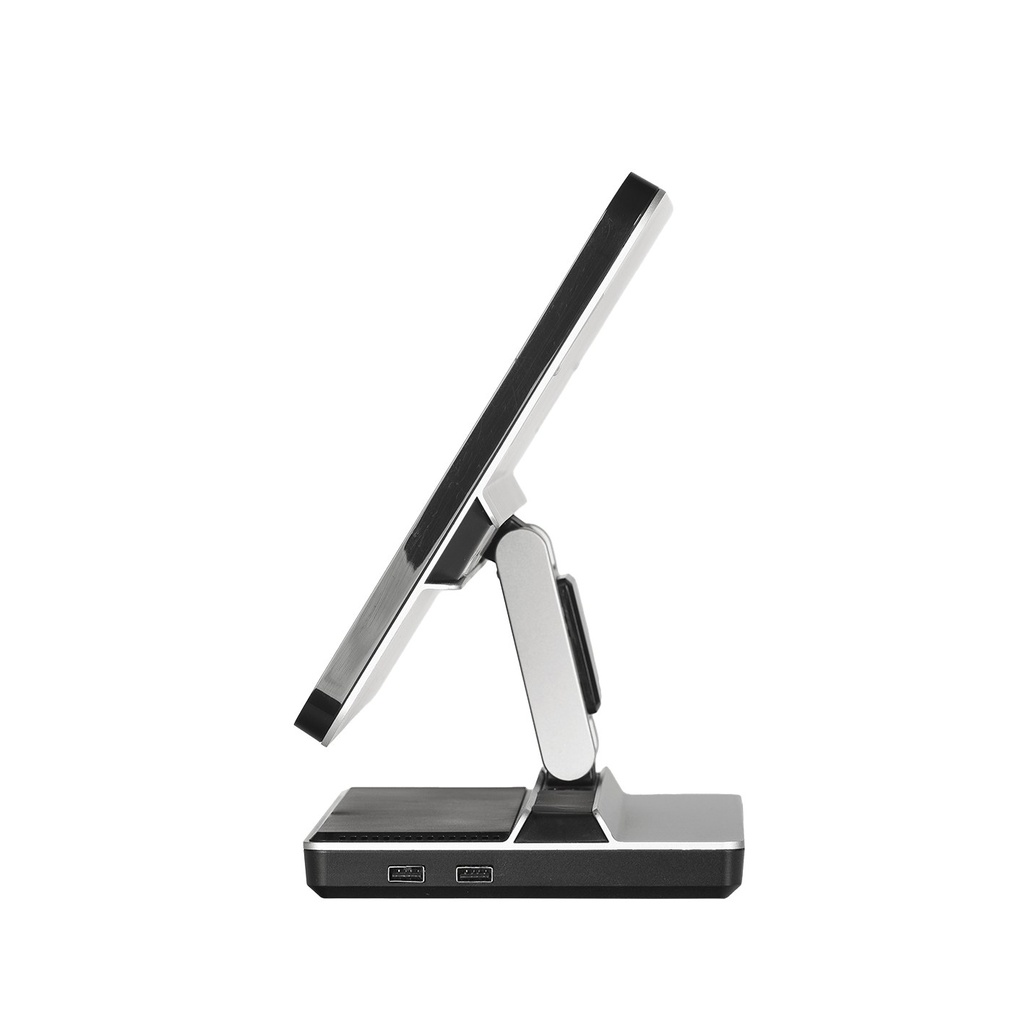

This bundle brings together everything needed to open a checkout: the JOA 15.6 inch aluminum touch terminal, the SGPR-200III receipt printer and the Windows 11 IoT Enterprise LTSC 2024 license, included and preinstalled. The terminal pairs an anti-glare 16:9 LED screen (1920 x 1080, 400 cd/m²) with a 10 point projected capacitive panel, a fanless quad core Intel Core i5-1035G4 processor, 8 GB of DDR4, a 128 GB SSD removable under the stand and built-in Wi-Fi; its aluminum joint with two ball heads angles the screen and its mini LCD displays your logo. The thermal printer at 260 mm/s, connecting via USB, serial or Ethernet, prints receipts on 80 mm thermal paper. Windows 11 IoT Enterprise LTSC 2024 is an edition designed for dedicated equipment and stable over time, so the station is ready for your point of sale software straight out of the box. One parcel, one item to order, and the 3 year return-to-workshop warranty on the terminal.
Specifications
| Bundle contents | JOA156I POS terminal + SGPR-200III receipt printer + Windows 11 IoT Enterprise LTSC 2024 license |
|---|---|
| Screen | 15.6 inch anti-glare LED 16:9, projected capacitive touch, 1920 x 1080, 400 cd/m² |
| Touch panel | 10 point projected capacitive |
| Processor | Intel Core i5-1035G4, 1.5 GHz quad core, fanless |
| Memory | 8 GB DDR4 SO-DIMM 2666 MHz (max 32 GB) |
| Storage | 128 GB mSATA SSD, removable, access under the stand |
| Interfaces | 6 x USB, 1 x USB-C, 2 x RJ-COM, 1 x LAN, 1 x cash drawer |
| Connectivity | Wi-Fi (built-in Intel card) |
| Power supply | External 12 V 5 A, included |
| Housing | 14 mm aluminum, joint with two ball heads, 45 x 45 mm mini LCD |
| Stand | Folding, aluminum |

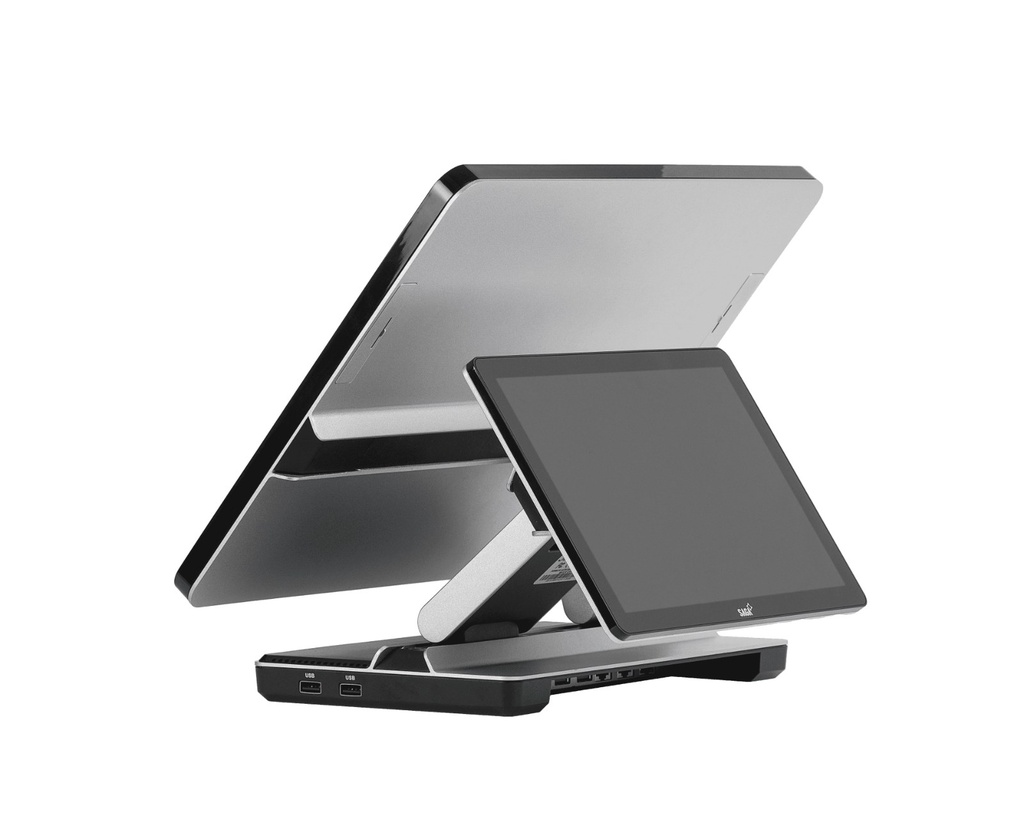

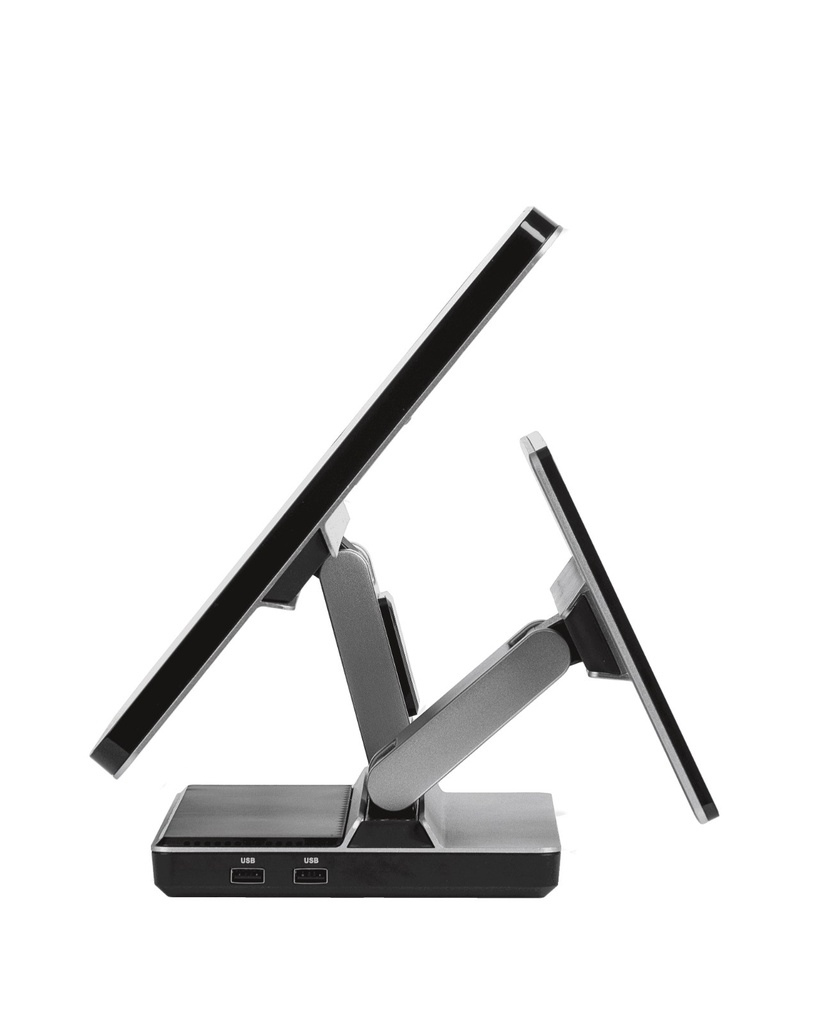

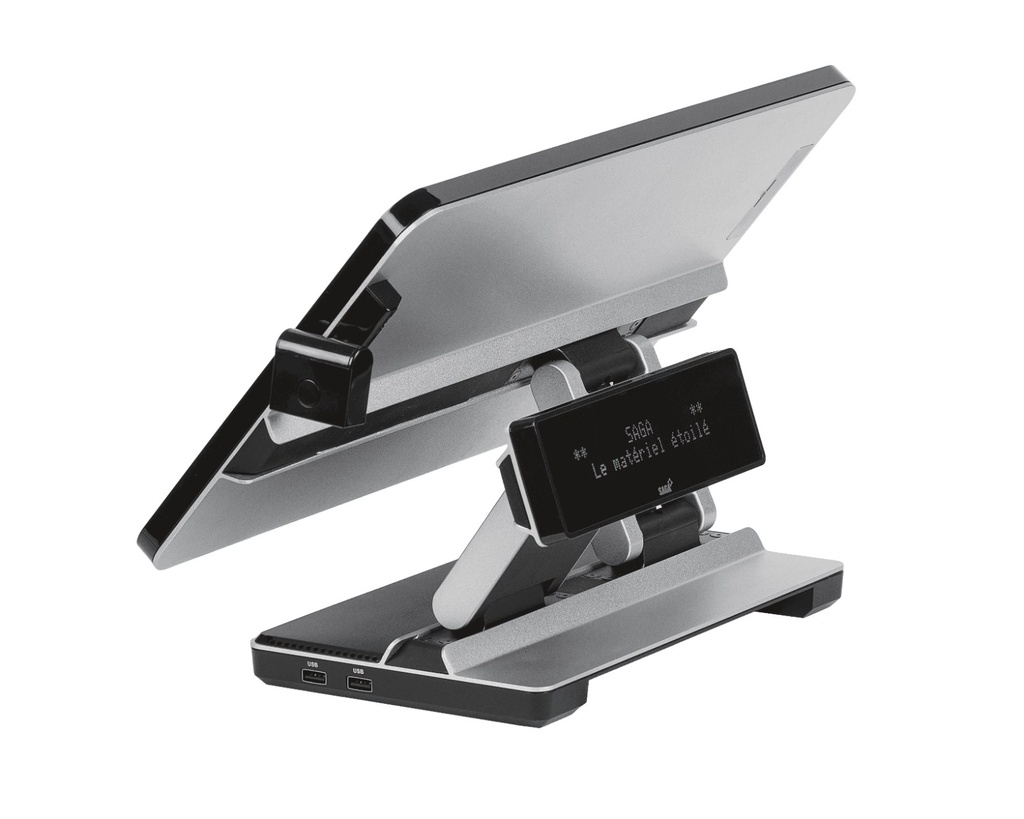

| Options | JOA200 display, JOA101 customer screen, JOA2D 2D scanner, JOA02VU Dallas reader, VESA 75 adapter |
| Matching peripherals | SGPR-300L printer, SGDK410 cash drawer |

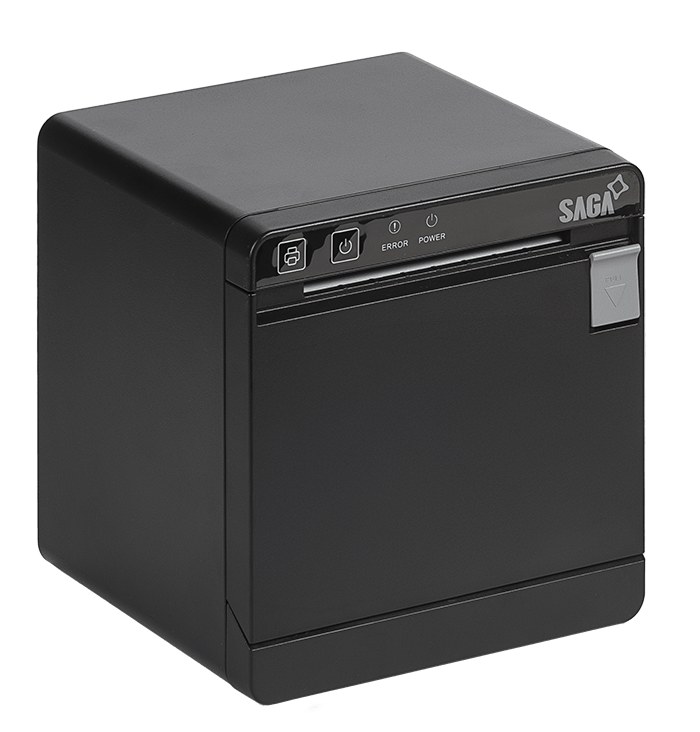

| Bundled printer | SGPR-200III 80 mm thermal, 260 mm/s, USB, serial, Ethernet |
| Operating system | Windows 11 IoT Enterprise LTSC 2024 (license included) |
| Warranty | 3 years, return to workshop |
Delivery and warranty
Free shipping: shipped directly from the manufacturer’s warehouse, handed to the carrier within 48 to 72 business hours after order confirmation. Manufacturer warranty: 3 years return to workshop; 36 month on-site (next business day) extension available as an option. A UPS is required to keep the warranty of integrated systems (Perimatic terms).
Use and tips
This bundle is meant for shops and restaurants that want a checkout station up and running quickly: all that remains is to install the point of sale software and connect the printer. Plan for 80 mm thermal paper rolls, a cash drawer and a UPS to protect the system in case of a power cut.
Frequently asked questions
Which software and equipment does this product work with?
The terminal ships with Windows 11 IoT Enterprise LTSC 2024 and accepts point of sale software for Windows. The SGPR-200III printer connects via USB, serial or Ethernet and is driven with ESC/POS commands.
How is it delivered?
Free shipping: shipped directly from the manufacturer’s warehouse, handed to the carrier within 48 to 72 business hours after order confirmation. Tracking is sent by email as soon as the carrier picks up the parcel.
What is the warranty?
Manufacturer warranty: 3 years return to workshop; 36 month on-site (next business day) extension available as an option. After-sales service is provided by Perimatic, maker of the SAGA brand; contact us for any support request.
