Key strengths
- Fanless Intel Core i3-1215U processor, up to 4.4 GHz in turbo mode
- 128 GB SSD removable on a rack for quick maintenance of the registers
- LED backlit logo, customizable in the colors of the point of sale
- Folding Z-shaped aluminum stand and scratch resistant 10 point touch panel
Description

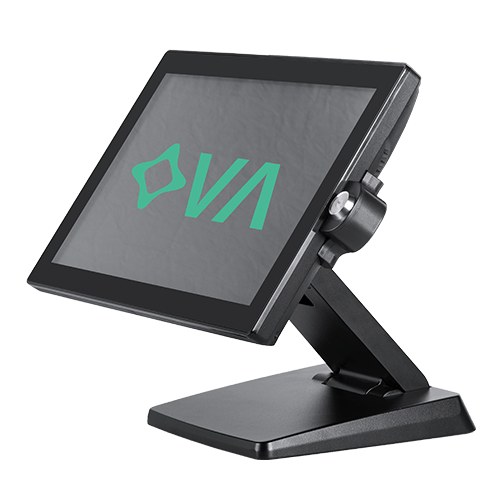

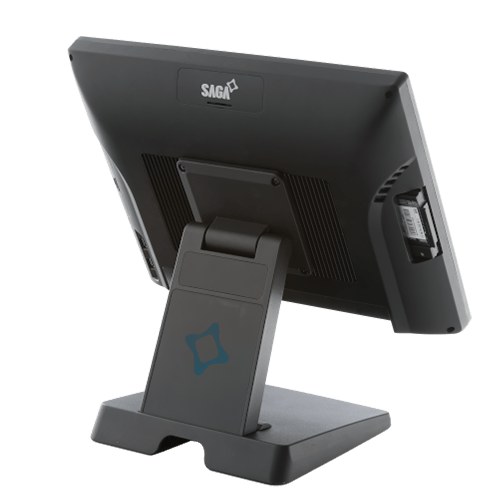

Second generation of SAGA touch terminals, this model is a 15 inch 4:3 point of sale system that accepts a wide range of checkout applications on Linux as well as Windows, whatever the line of business. Its LED screen (1366 x 768, 250 cd/m²) is covered by a scratch resistant 10 point projected capacitive touch panel. The terminal sits on a folding Z-shaped aluminum stand and carries an LED backlit logo that can be customized in the colors of the point of sale. The fanless motherboard carries an Intel Core i3-1215U (1.20 GHz, 4.4 GHz turbo), 8 GB of DDR4 expandable to 16 GB and a 128 GB M.2 SATA SSD removable on a rack, with a free M.2 NVMe slot. Connectivity is extensive: eleven USB ports including one type C and one 24 V port, two DB-9, two RJ45-RS232, one LAN, an HDMI output, a 24 V Hosiden output and an audio output. The external 24 V 5 A power supply is included, and the Windows 11 IoT license is offered as an option. A 2D scanner (OVA2D) and a Dallas reader (SGIB02) can be built in.
Specifications
| Screen | 15 inch LED 4:3, projected capacitive touch, 1366 x 768, 250 cd/m² |
|---|---|
| Touch panel | 10 point projected capacitive, scratch resistant |
| Processor | Intel Core i3-1215U, 1.20 GHz (4.4 GHz turbo), fanless |
| Memory | 8 GB DDR4 SO-DIMM 2666 MHz (max 16 GB) |
| Storage | 128 GB M.2 SATA III SSD, removable on rack, 1 free M.2 NVMe slot |
| Interfaces | 11 x USB (2.0, 3.0, type C, 24 V), 2 x DB-9, 2 x RJ45-RS232, 1 x LAN, 1 x HDMI, 1 x 24 V Hosiden output, 1 x COM1, audio output |
| Power supply | External 24 V 5 A, included |
| Housing | Aluminum, customizable LED backlit logo |
| Stand | Folding aluminum, Z shape |
| Options | OVA2D built-in 2D scanner, SGIB02 Dallas reader |
| Matching peripherals | SGPR-200III printer, SGDK410 cash drawer, SAGA SGD displays |
| Operating system | Windows or Linux (Windows 11 IoT license optional) |
| Warranty | 3 years, return to workshop |
Delivery and warranty
Free shipping: shipped directly from the manufacturer’s warehouse, handed to the carrier within 48 to 72 business hours after order confirmation. Manufacturer warranty: 3 years return to workshop; 36 month on-site (next business day) extension available as an option. A UPS is required to keep the warranty of integrated systems (Perimatic terms).
Use and tips

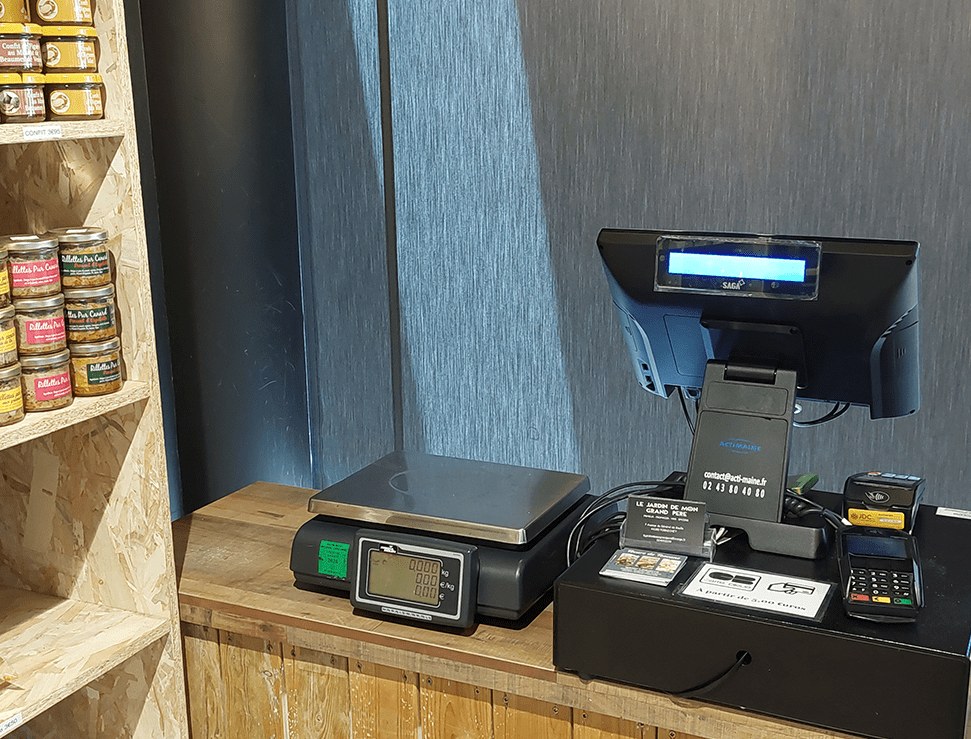

Retail, grocery, food service, pharmacy: this terminal fits most counters thanks to its folding Z stand and generous connectivity. Plan for the Windows 11 IoT license if your software runs on Windows and a UPS to protect the system; the removable SSD makes maintenance or cloning of registers easier. The 2D scanner and Dallas reader options are ordered together with the terminal.
Frequently asked questions
Which software and equipment does this product work with?
Open PC architecture compatible with point of sale software on Windows or Linux. The terminal is designed to work with the SGPR-200III printer, the SGDK410 drawer and SAGA SGD displays, and its USB, serial and LAN ports accept standard peripherals.
How is it delivered?
Free shipping: shipped directly from the manufacturer’s warehouse, handed to the carrier within 48 to 72 business hours after order confirmation. Tracking is sent by email as soon as the carrier picks up the parcel.
What is the warranty?
Manufacturer warranty: 3 years return to workshop; 36 month on-site (next business day) extension available as an option. After-sales service is provided by Perimatic, maker of the SAGA brand; contact us for any support request.
