Key strengths
- Fanless quad core Intel Celeron J6412 processor, low power and silent

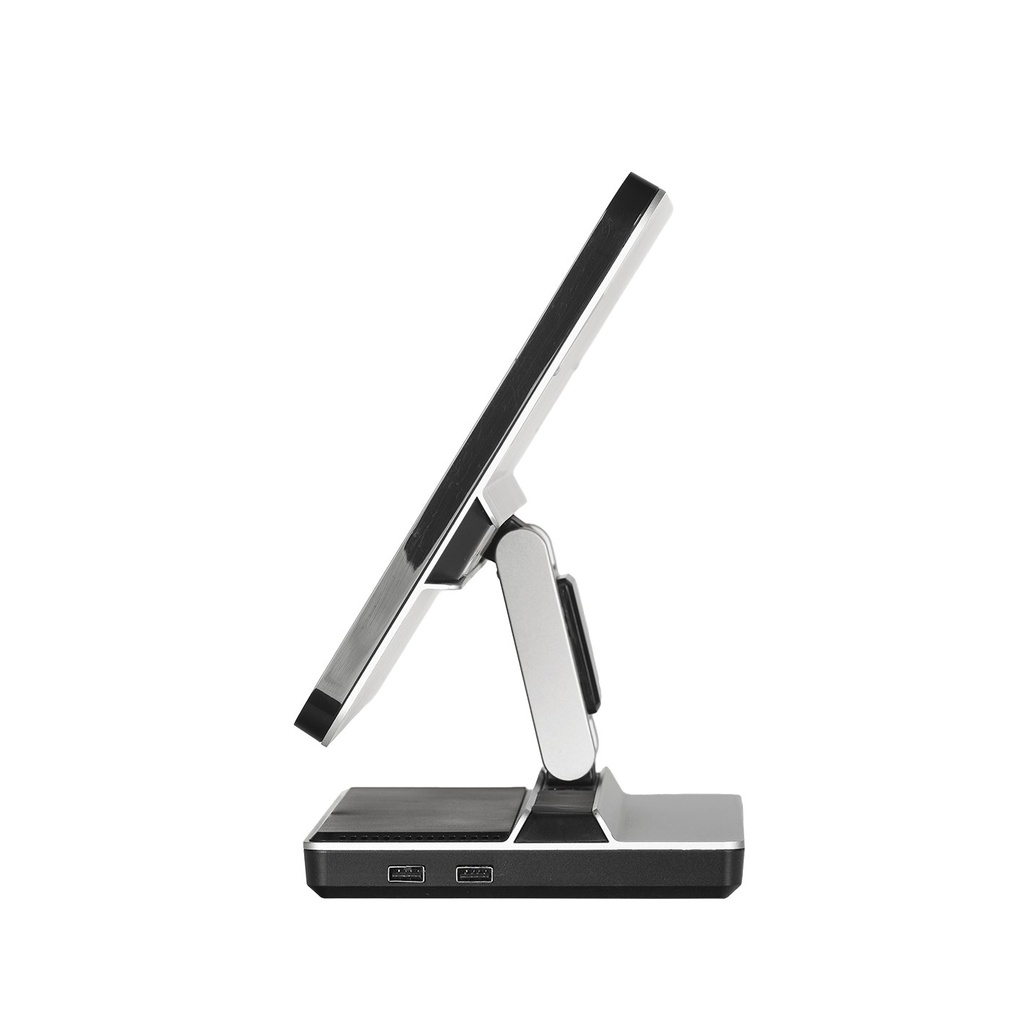

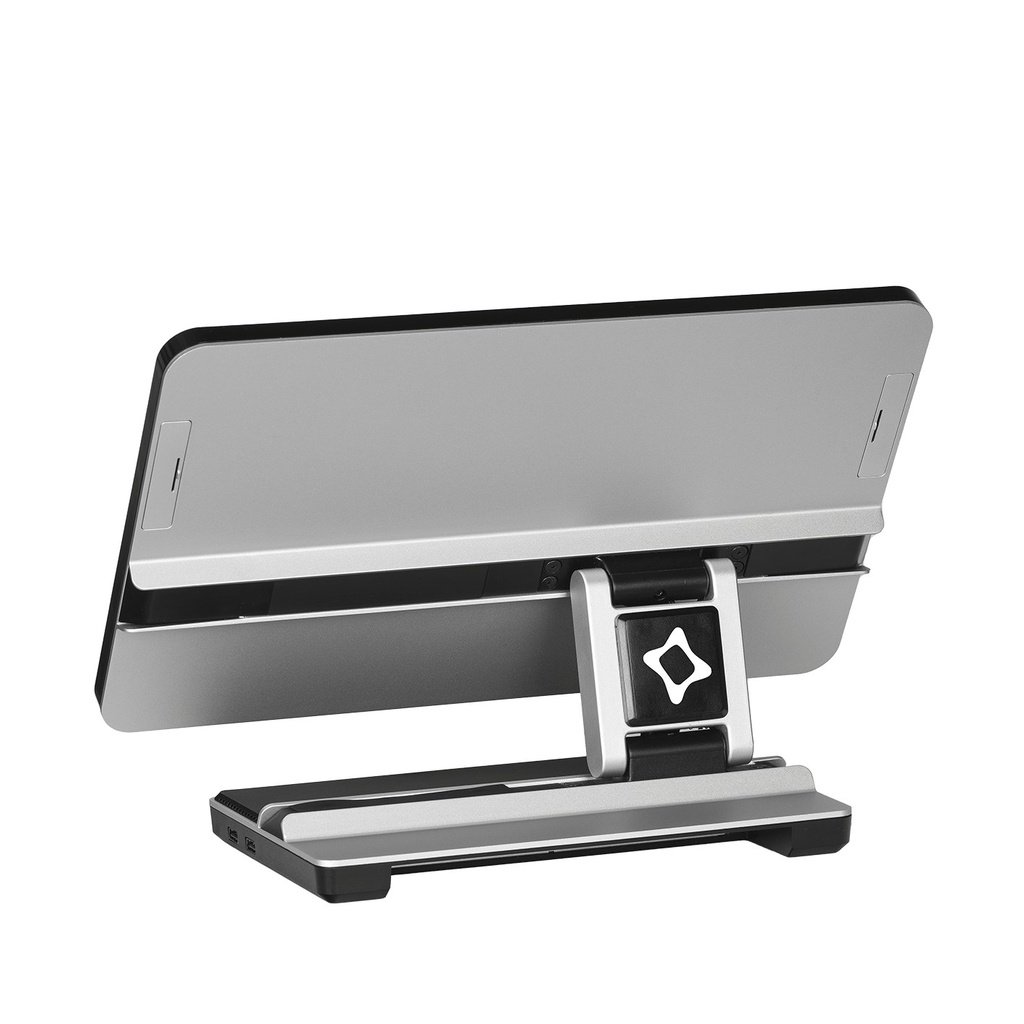

- 14 mm aluminum housing and two ball head joint to angle the screen
- 45 x 45 mm mini LCD in the joint to display a logo or message
- Built-in Wi-Fi as standard and removable 128 GB SSD under the stand
Description

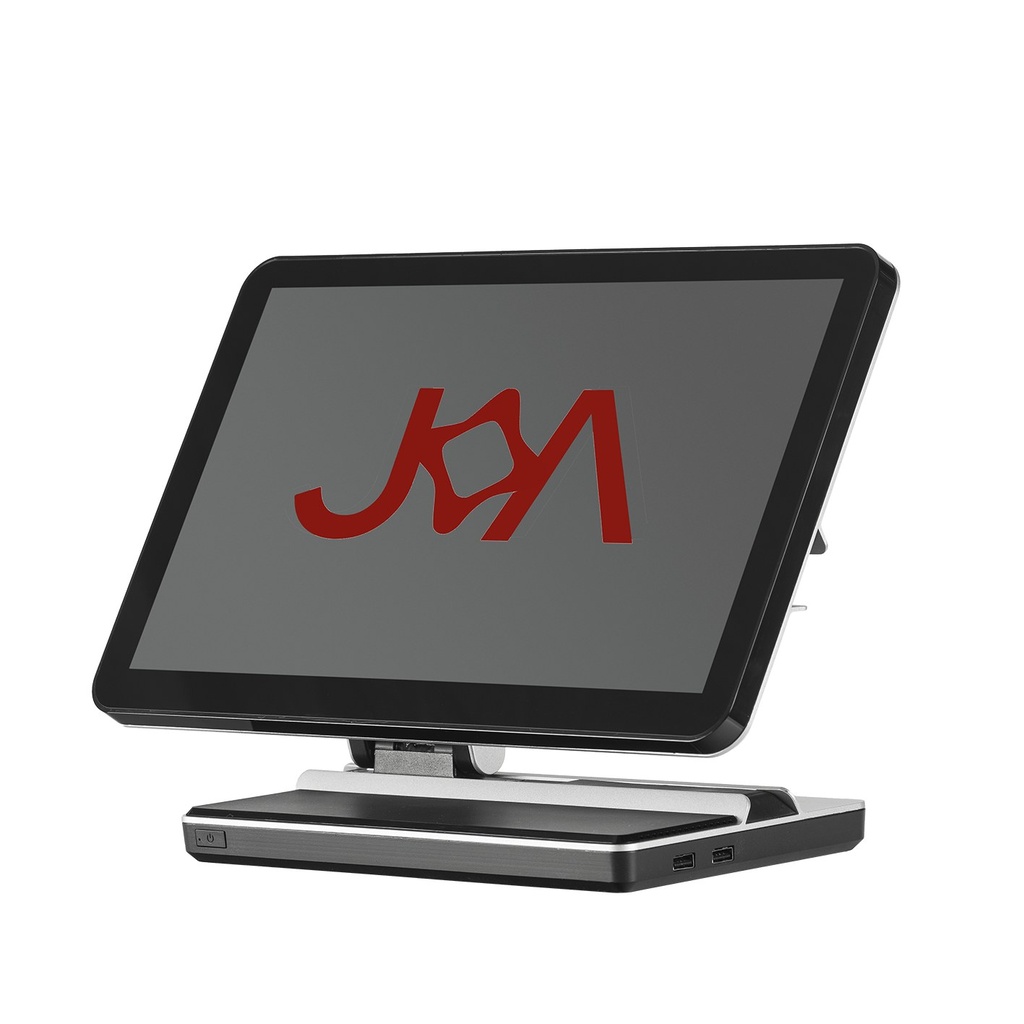

Part of the SAGA range of aluminum touch terminals, this 15 inch model runs a wide range of point of sale applications on Linux and Windows. Its aluminum joint with two ball heads lets you adjust the counter base and the cashier screen to the merchant's environment, and a small 45 x 45 mm LCD set into the joint displays a logo or a marketing message. The anti-glare 4:3 LED screen (1024 x 768, 350 cd/m²) is fitted with a 10 point projected capacitive touch panel. The fanless motherboard carries a quad core Intel Celeron J6412 at 2.0 GHz, 8 GB of DDR4 expandable to 32 GB, a 128 GB mSATA SSD removable under the stand and an Intel Wi-Fi card as standard. Connectivity brings together six USB ports, one USB-C, two RJ-COM ports, one LAN and a cash drawer port. The external 12 V 5 A power supply is included and the Windows 11 IoT license is offered as an option. JOA200 2-line display, JOA101 customer screen, JOA2D 2D scanner, JOA02VU Dallas reader and VESA 75 adapter for wall mounting are available as options.
Specifications
| Screen | 15 inch anti-glare LED 4:3, projected capacitive touch, 1024 x 768, 350 cd/m² |
|---|---|
| Touch panel | 10 point projected capacitive |
| Processor | Intel Celeron J6412, 2.0 GHz quad core, fanless |
| Memory | 8 GB DDR4 SO-DIMM 2666 MHz (max 32 GB) |
| Storage | 128 GB mSATA SSD, removable, access under the stand |
| Interfaces | 6 x USB, 1 x USB-C, 2 x RJ-COM, 1 x LAN, 1 x cash drawer |
| Connectivity | Wi-Fi (built-in Intel card) |
| Power supply | External 12 V 5 A, included |
| Housing | 14 mm aluminum, joint with two ball heads, 45 x 45 mm mini LCD |
| Stand | Folding, aluminum |

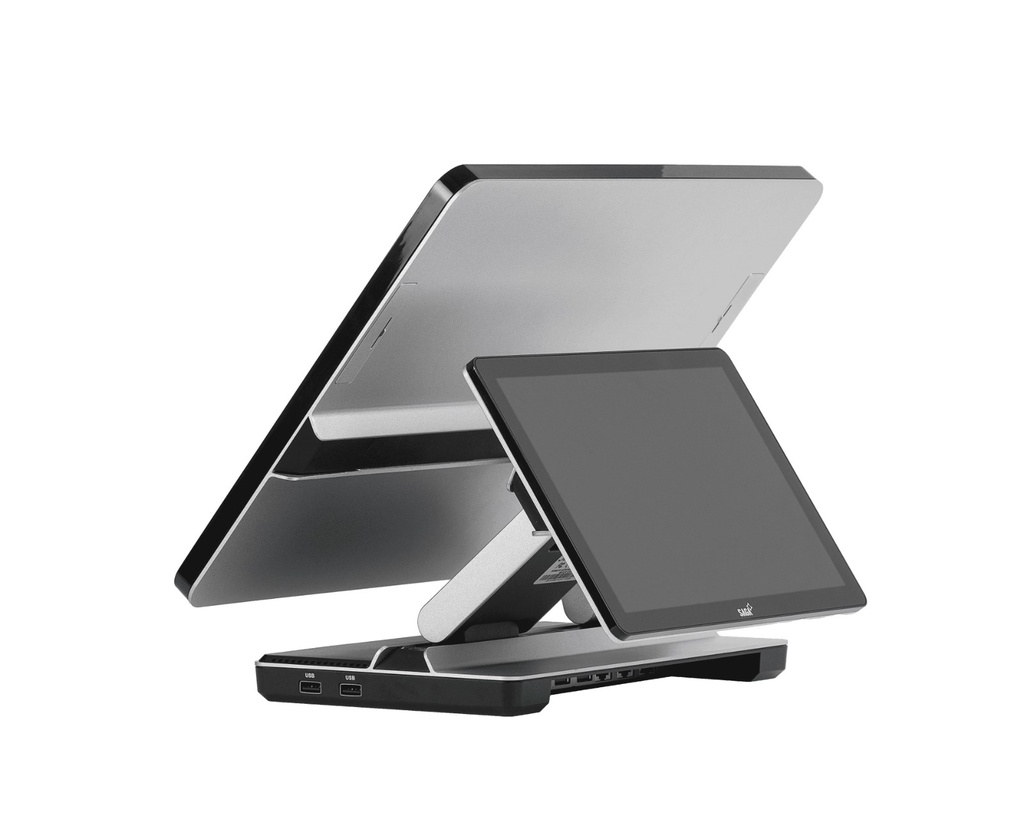

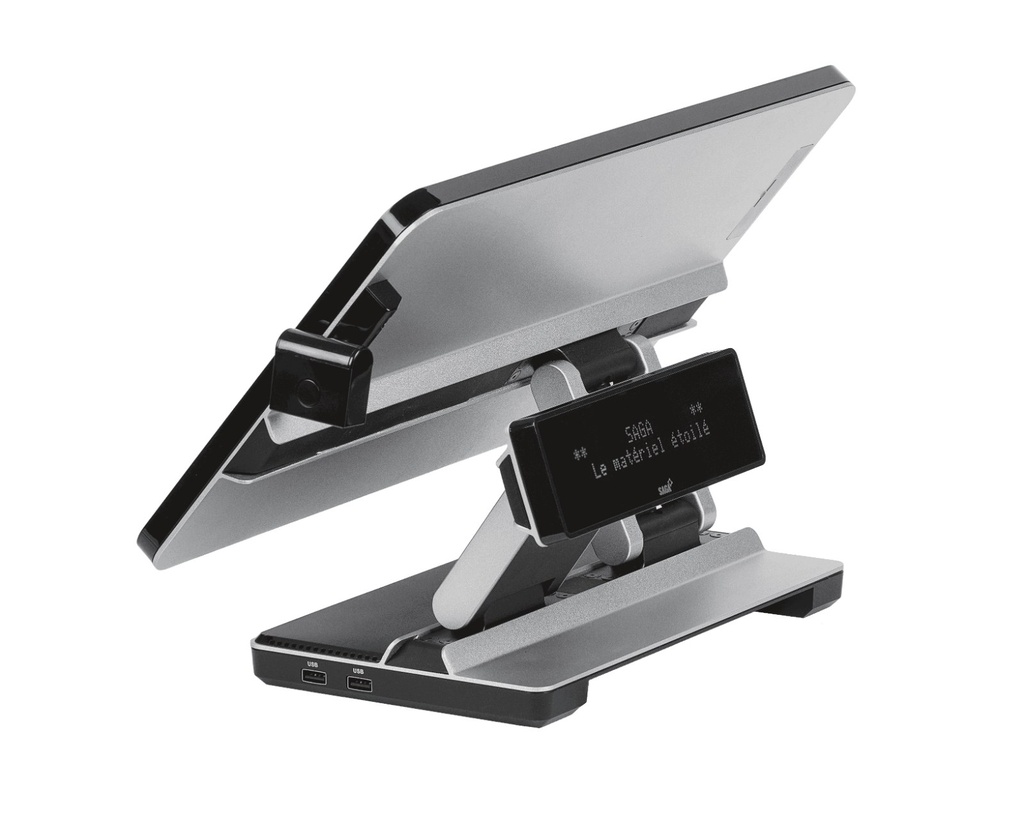

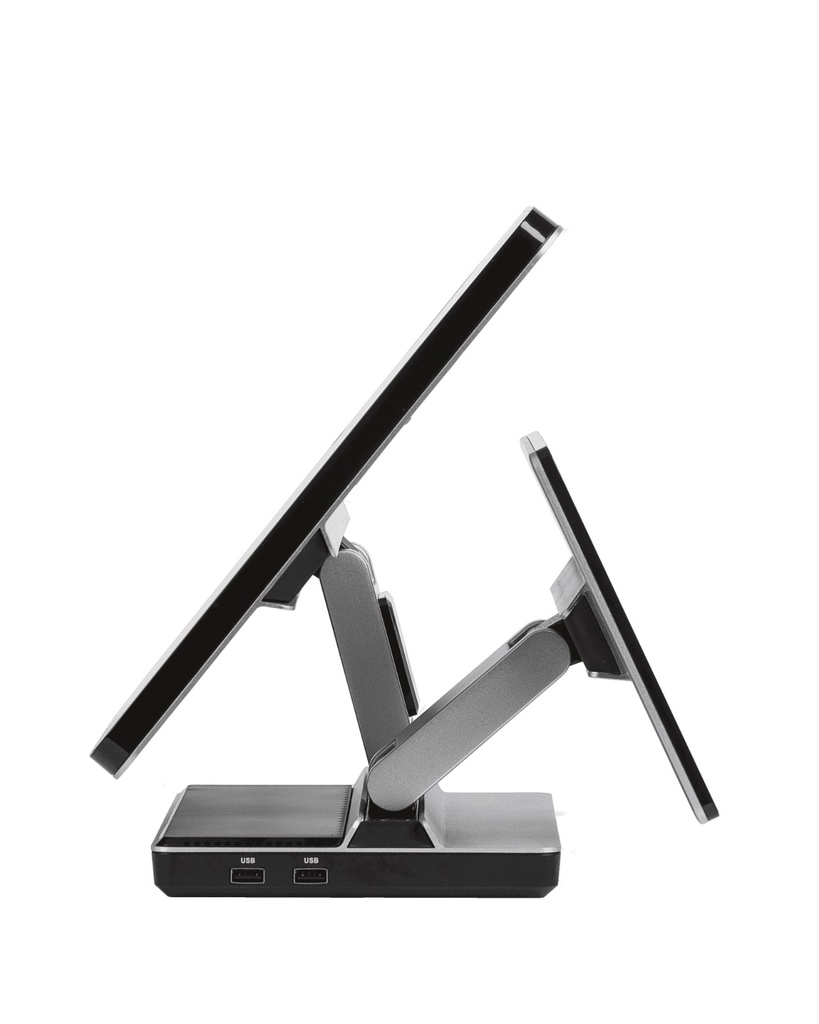

| Options | JOA200 display, JOA101 customer screen, JOA2D 2D scanner, JOA02VU Dallas reader, VESA 75 adapter |
| Matching peripherals | SGPR-300L printer, SGDK410 cash drawer |
| Operating system | Windows or Linux (Windows 11 IoT license optional) |
| Warranty | 3 years, return to workshop |
Delivery and warranty
Free shipping: shipped directly from the manufacturer’s warehouse, handed to the carrier within 48 to 72 business hours after order confirmation. Manufacturer warranty: 3 years return to workshop; 36 month on-site (next business day) extension available as an option. A UPS is required to keep the warranty of integrated systems (Perimatic terms).
Use and tips
Shops, restaurants, pharmacies or concept stores: the aluminum housing and adjustable joint let you angle the cashier screen to the counter height, and the built-in Wi-Fi simplifies installation where network cabling is missing. Plan for the Windows 11 IoT license if your software runs on Windows, a UPS to secure checkout operations and, for wall mounting, the VESA 75 adapter.
Frequently asked questions
Which software and equipment does this product work with?
Open PC architecture compatible with point of sale software on Windows or Linux. The terminal is designed for the SGPR-300L printer and the SGDK410 drawer; the optional VESA 75 adapter allows wall mounting.
How is it delivered?
Free shipping: shipped directly from the manufacturer’s warehouse, handed to the carrier within 48 to 72 business hours after order confirmation. Tracking is sent by email as soon as the carrier picks up the parcel.
What is the warranty?
Manufacturer warranty: 3 years return to workshop; 36 month on-site (next business day) extension available as an option. After-sales service is provided by Perimatic, maker of the SAGA brand; contact us for any support request.
