Description

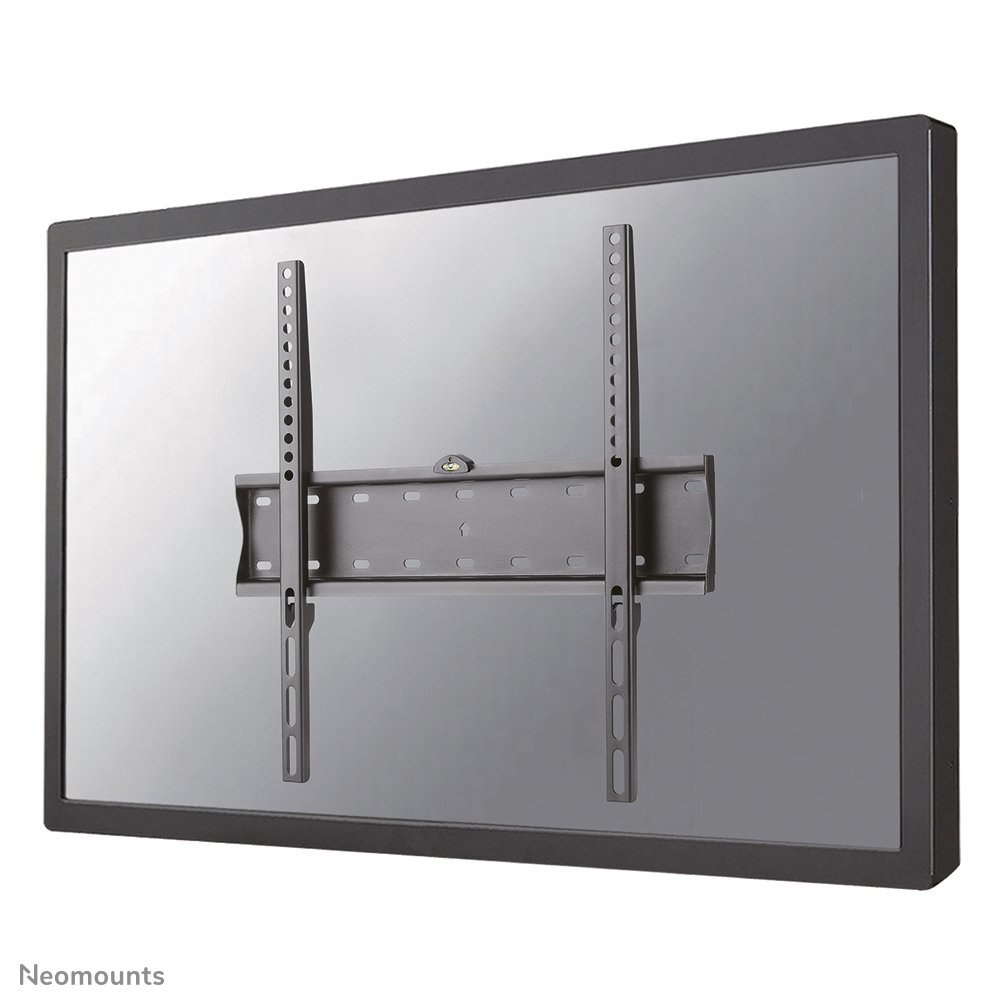

Deviant hole patterns can be covered using one of Neomounts VESA adapter plates. The integrated bubble level assures easy installation of the mount.
Specifications
| Min. screen size (inch) | 32 |
|---|---|
| Max. screen size (inch) | 55 |
| Max. weight (kg) | 40 |
| Screens | 1 |
| Min. VESA | 200x200 mm |
| Max. VESA | 400x400 mm |
| VESA pattern | 400x400, 300x300, 400x300, 400x200, 200x200 |
| Mount | Wall |
| Type | Fixed |
| Height adjustment | 42,5 cm |
| Width adjustment (cm) | 43,3 cm |
| Depth adjustment (cm) | 2,7 cm |
| Distance to wall (cm) | 2,7 cm |
| Main material | Steel |
| Net weight of product (kg) | 1.2 |
| Gross weight of packaging (kg) | 1.2 |
| Country of origin | China |
| EAN code | 8717371448424 |
Use and tips
A wall mount frees the floor and the furniture completely, which makes it the most durable option for meeting rooms, receptions and digital signage. Identify the wall type before installation: concrete and solid brick take the supplied anchors, while a hollow partition or a metal stud frame needs suitable fixings and often a reinforcement.
Frequently asked questions
Is my screen compatible?
This model accepts 32 to 55 inch, 40 kg maximum, VESA 200x200 to 400x400. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure, our contact page puts you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge: our Neomounts support page takes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
