Key strengths
- Full HD projected capacitive panel at 350 cd/m², readable and responsive all day long
- Fanless Intel Core i5-8250 processor in a silent aluminum housing
- IP65 front panel that withstands frequent cleaning in demanding environments
- Complete professional connectivity: 6 USB, 4 RS-232C, RJ45, VGA and HDMI
Description

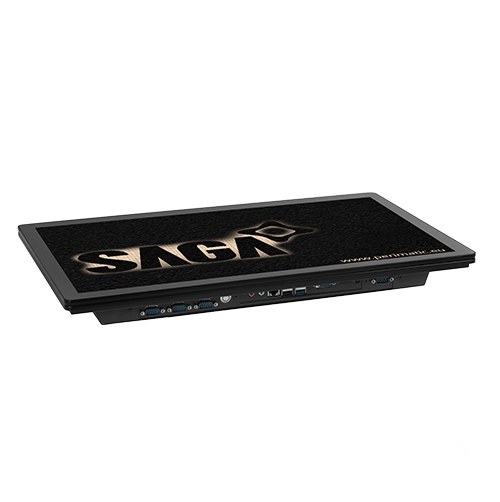

Usable mounted on a wall or on a retail pole, this 16:9 panel PC forms a complete touchscreen system in an ultra thin chassis. Its 21.5 inch projected capacitive LCD panel displays 1920 x 1080 with a brightness of 350 cd/m². Inside, an industrial motherboard combines a fanless Intel Core i5-8250 processor at 2.0 GHz, 8 GB of DDR3 SO-DIMM memory and a 128 GB Kingston mSSD. The aluminum housing handles heat dissipation and integrates a speaker and a Wi-Fi card. Connectivity covers professional uses: six USB ports, four RS-232C ports, one RJ45 port, one VGA output and one HDMI output, with an external 12 V 5 A power supply included. The IP65 certified front panel tolerates splashes and frequent cleaning, for indoor use only. Mounted in VESA 100 and running Windows or Linux, it serves digital signage as well as order reception in restaurants with KOBÉ kiosks, or OEM integration into kiosks, click and collect and self-service machines.
Specifications
| Screen | 21.5 inch LED, projected capacitive, 1920 x 1080, 350 cd/m², 16:9 |
|---|---|
| Motherboard | Industrial |
| Processor | Intel Core i5-8250, 2.0 GHz, fanless |
| Memory | 8 GB DDR3 SO-DIMM 1333/1600 MHz (8 GB max) |
| Storage | 128 GB internal Kingston mSSD |
| Interfaces | 6 x USB, 4 x RS-232C, 1 x RJ45, 1 x VGA, 1 x HDMI |
| Power supply | External 12 V 5 A included |
| Mounting | VESA 100 |
| Supported systems | Windows or Linux |
| Protection | IP65 front, indoor use only |
| Housing | Aluminum, built-in speaker and Wi-Fi card |
| Warranty | 1 year, return to workshop |
Delivery and warranty
Ships within 3 business days. Manufacturer warranty: 1 year return to workshop. A UPS is required to keep the warranty of integrated systems (Perimatic terms).
Use and tips
Mount it on a wall or on a retail pole thanks to the VESA 100 format; the QUICKMOUNT75 fixed bracket is available as an option. Plan for the Windows 11 IoT license (Value option) if your software runs on Windows, and for the SG-EXT36 on-site warranty extension for critical installations. In restaurants, it serves as a production screen paired with KOBÉ ordering kiosks.
Frequently asked questions
Which software and equipment does this product work with?
An open PC architecture running Windows or Linux, compatible with point of sale, digital signage and production management software on the market. The VESA 100 mounting makes it compatible with standard poles and brackets.
How is it delivered?
Ships within 3 business days. Tracking is sent by email as soon as the carrier picks up the parcel.
What is the warranty?
Manufacturer warranty: 1 year return to workshop. After-sales service is provided by Perimatic, maker of the SAGA brand; contact us for any support request.
