Description

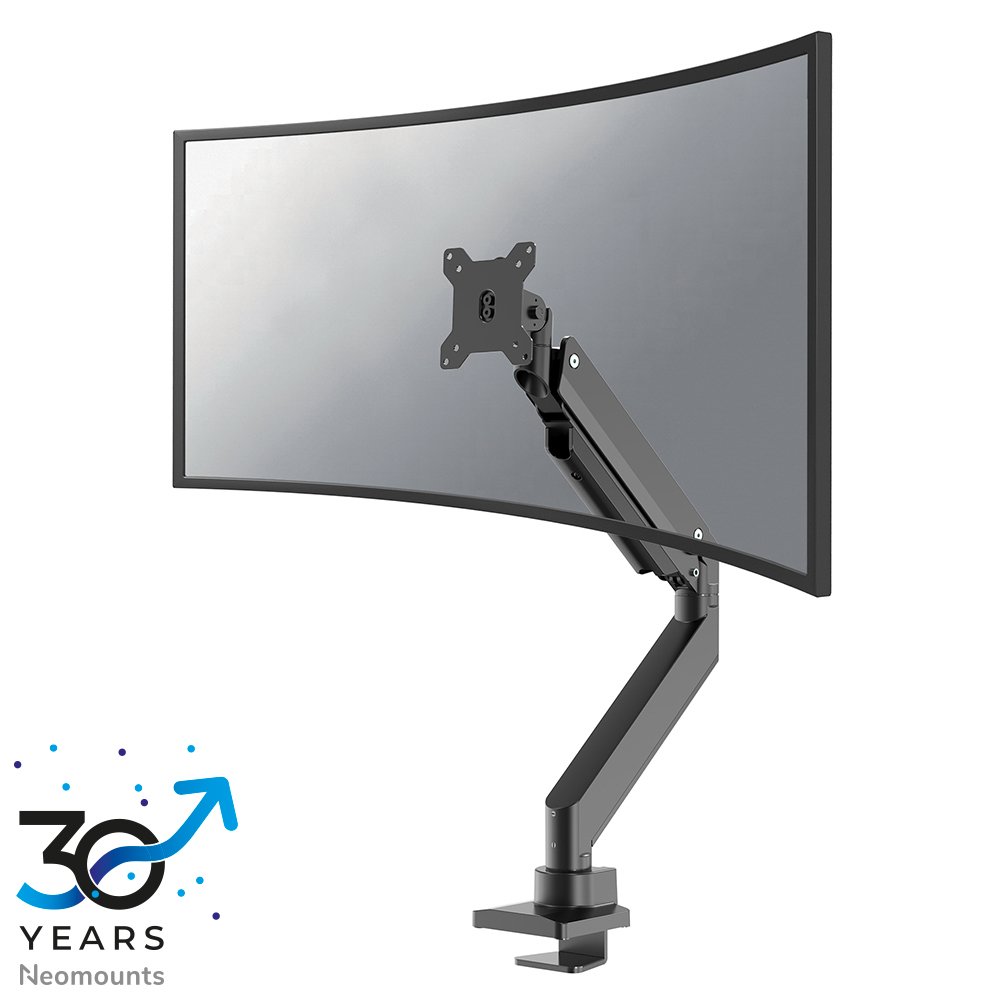

The NM-D775BLACKPLUS mounts are specifically designed to support curved screens. They feature a strengthened head for curved screens and are designed to support a higher total capacity up to 49" and a maximum weight of 18 kg. Neomounts unique tilt (180°), rotate (360°) and swivel (180°/ 360°) technology allows the NM-PLUS mounts to change to any viewing angle for optimal use of the capabilities of the ultra-wide screen. The mount is equipped with a 180° stop mechanism. The mounts are easily adjustable in height to 60 centimetres, using a gas spring. Additionally, the mounts are also adjustable in depth, from 0 to 63 centimetres. A unique cable management conceals and routes cables from mount to the ultra-wide screen. The NM-D775BLACKPLUS desk mounts are ideal for use in offices, on counters and in reception areas. All installation material is included with the product.
Specifications
| Min. screen size (inch) | 10 |
|---|---|
| Max. screen size (inch) | 49 |
| Min. weight (kg) | 1 |
| Max. weight (kg) | 18 |
| Max. weight curved/ultra-wide | 14 |
| Screens | 1 |
| Min. VESA | 75x75 mm |
| Max. VESA | 100x100 mm |
| VESA pattern | 75x75, 100x100 |
| Mount | Desk |
| Desk mount | Grommet, Clamp |
| Type | Full motion |
| Tilt (degrees) | +45°, -45° |
| Rotate (degrees) | 180° |
| Swivel (degrees) | 360° |
| Height adjustment | 27-60 cm |
| Depth adjustment (cm) | 0-63 cm |
| Clamp range | 1-4,5 cm |
| Cable management | Yes |
| Main material | Steel |
| EAN code | 8717371447809 |
Use and tips
A desk arm frees up the work surface and puts the screen at the right height, which reduces neck and shoulder strain over a full day. Before buying, check the desk thickness and whether a grommet hole is available, and confirm that your screen weight stays within the stated range: a screen that is too heavy prevents the spring from holding its position.
Frequently asked questions
Is my screen compatible?
This model accepts 10 to 49 inch, 18 kg maximum, VESA 75x75 to 100x100. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure, our contact page puts you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge: our Neomounts support page takes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
