Description

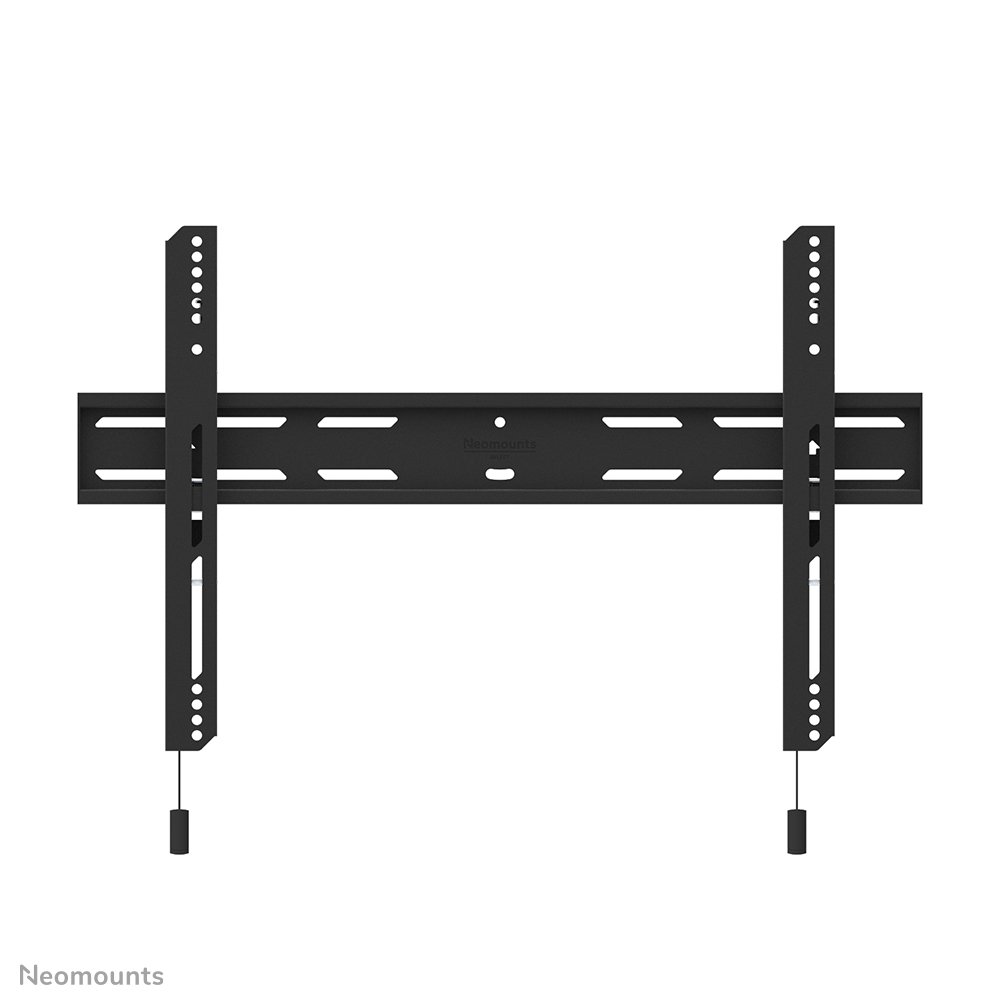

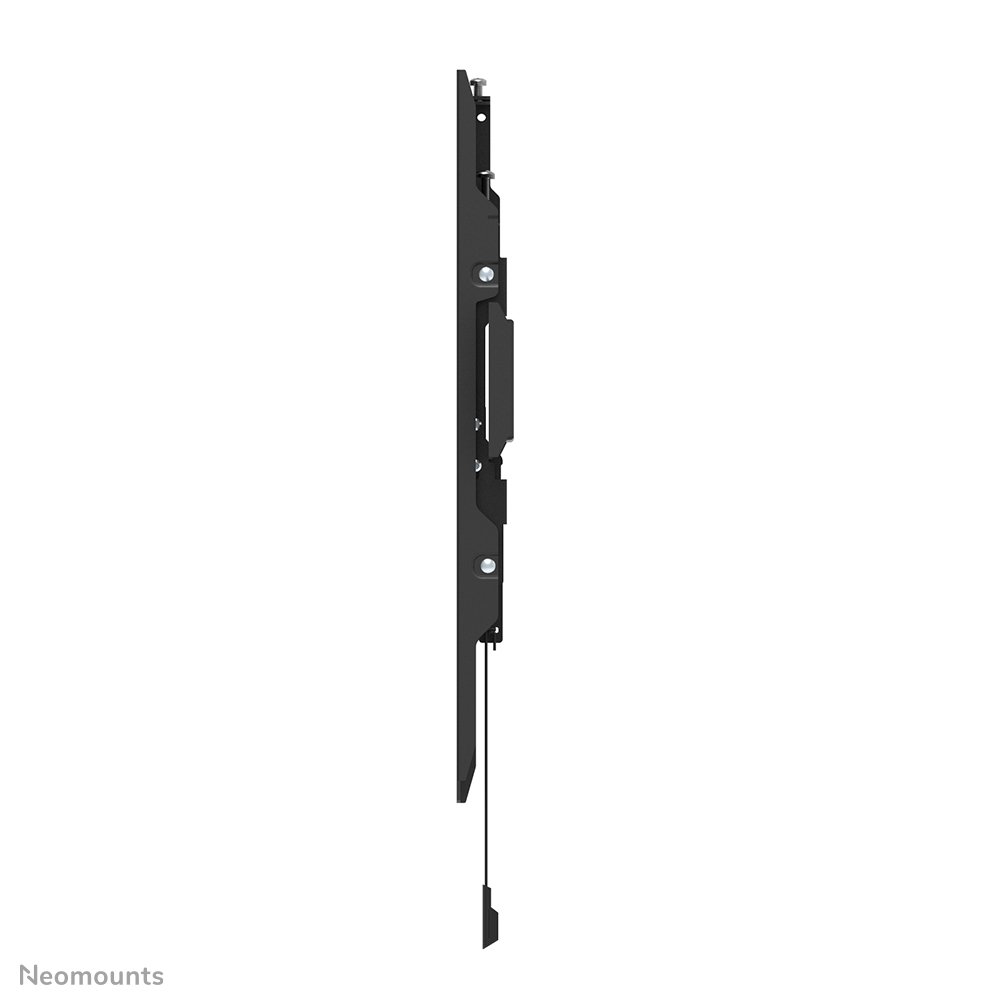

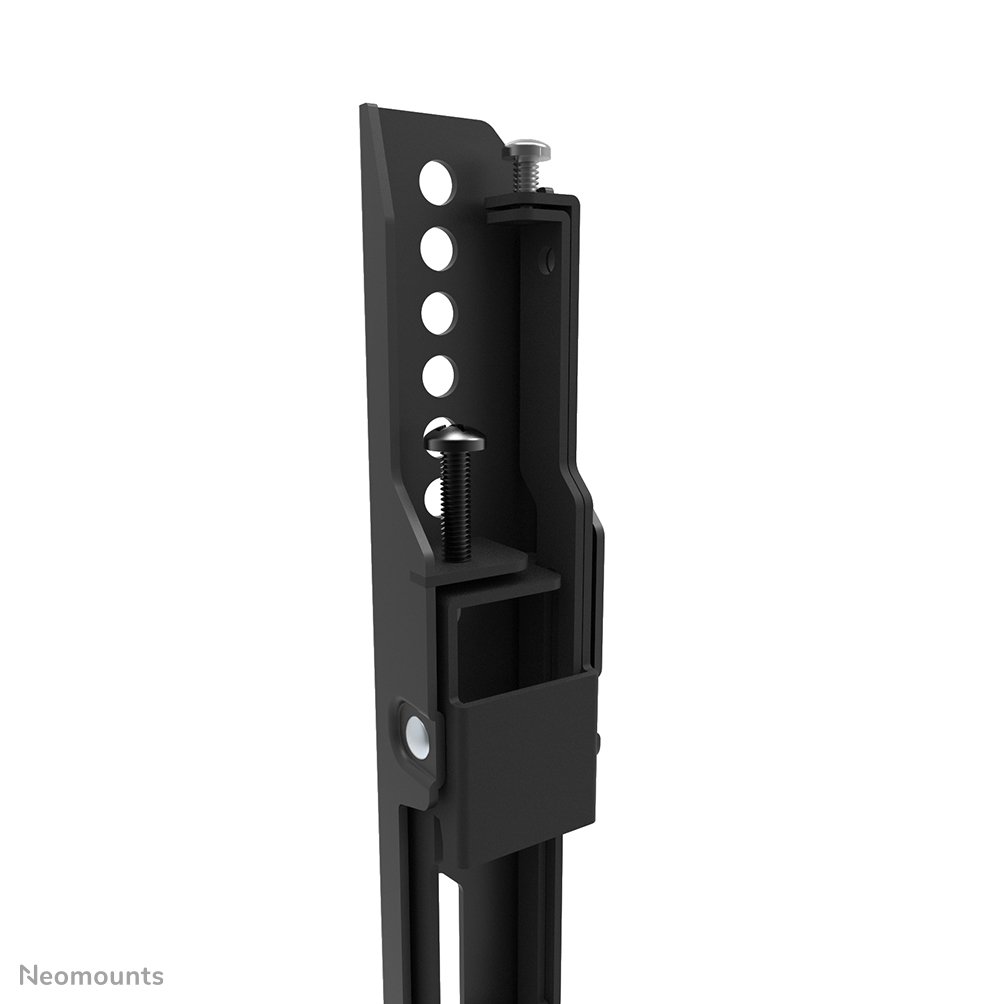

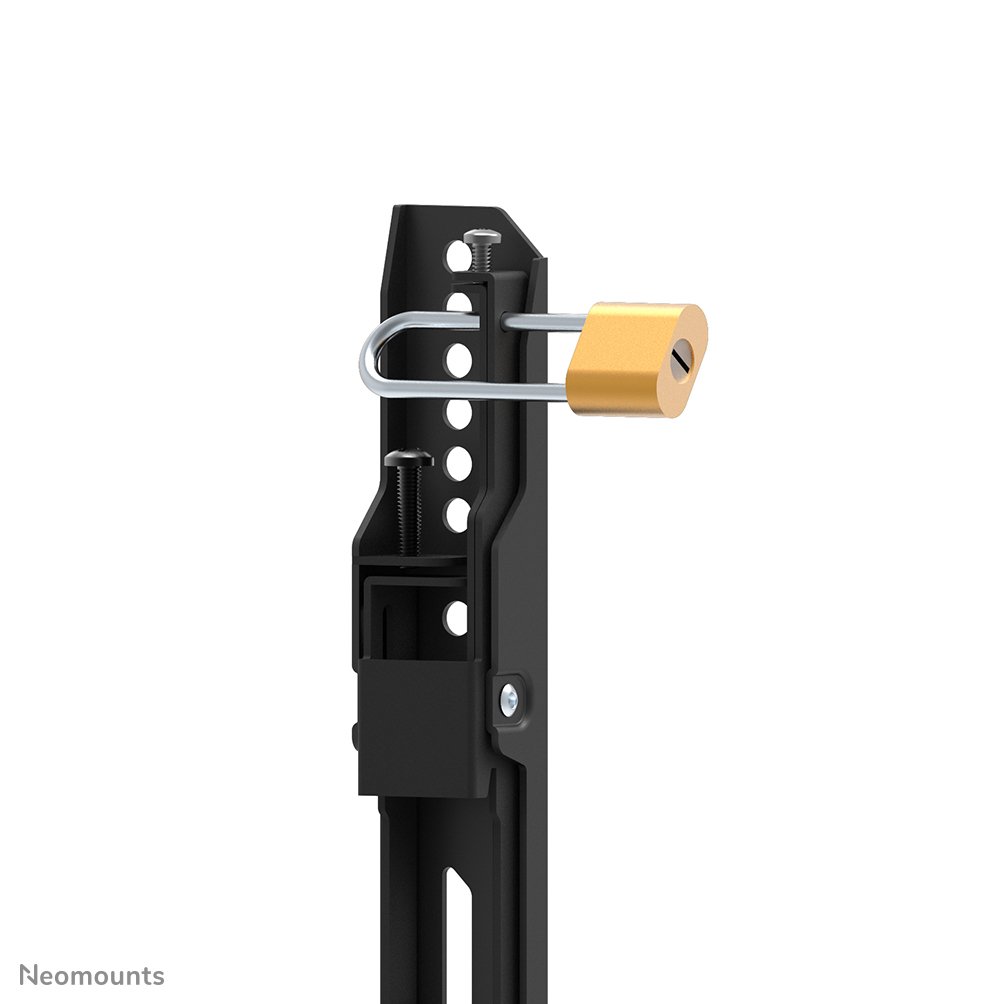

The LEVEL-850 wall mount has a depth of 3,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 600x400mm. It is possible to lock the wall mount using the included anti-theft screw or a padlock (not included). The WL30S-850BL16 features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount.
Specifications
| Min. screen size (inch) | 42 |
|---|---|
| Max. screen size (inch) | 86 |
| Max. weight (kg) | 60 |
| Screens | 1 |
| Min. VESA | 100x100 mm |
| Max. VESA | 600x400 mm |
| VESA pattern | 100x200, 200x400, 400x400, 200x300, 300x300, 440x400, 500x400, 600x200, 600x300, 600x400, 400x300, 200x100, 300x100, 100x150, 120x120, 350x350, 400x200, 150x200, 200x150, 100x100, 200x200, 300x200 |
| Mount | Wall |
| Type | Fixed |
| Height adjustment | 2 cm |
| Width (cm) | 68,4 cm |
| Depth (cm) | 3,3 cm |
| Height (cm) | 42,5 cm |
| Distance to wall (cm) | 3,3 cm |
| Main material | Steel |
| Lockable | Lockable - Security screw included |
| Net weight of product (kg) | 2.4 |
| Gross weight of packaging (kg) | 3.4 |
| Country of origin | China |
| EAN code | 8717371448851 |
Use and tips
A wall mount frees the floor and the furniture completely, which makes it the most durable option for meeting rooms, receptions and digital signage. Identify the wall type before installation: concrete and solid brick take the supplied anchors, while a hollow partition or a metal stud frame needs suitable fixings and often a reinforcement.
Frequently asked questions
Is my screen compatible?
This model accepts 42 to 86 inch, 60 kg maximum, VESA 100x100 to 600x400. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure,our contact pageputs you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge:our Neomounts support pagetakes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
