Description

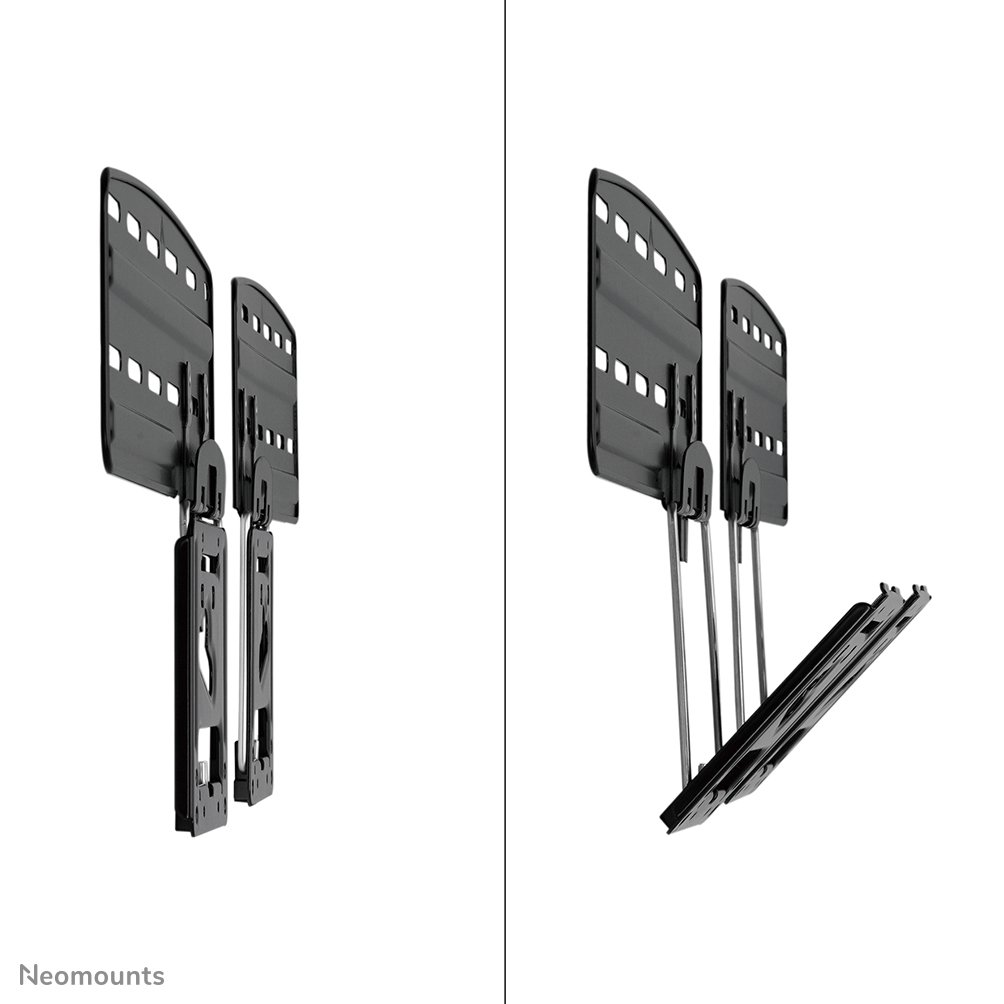

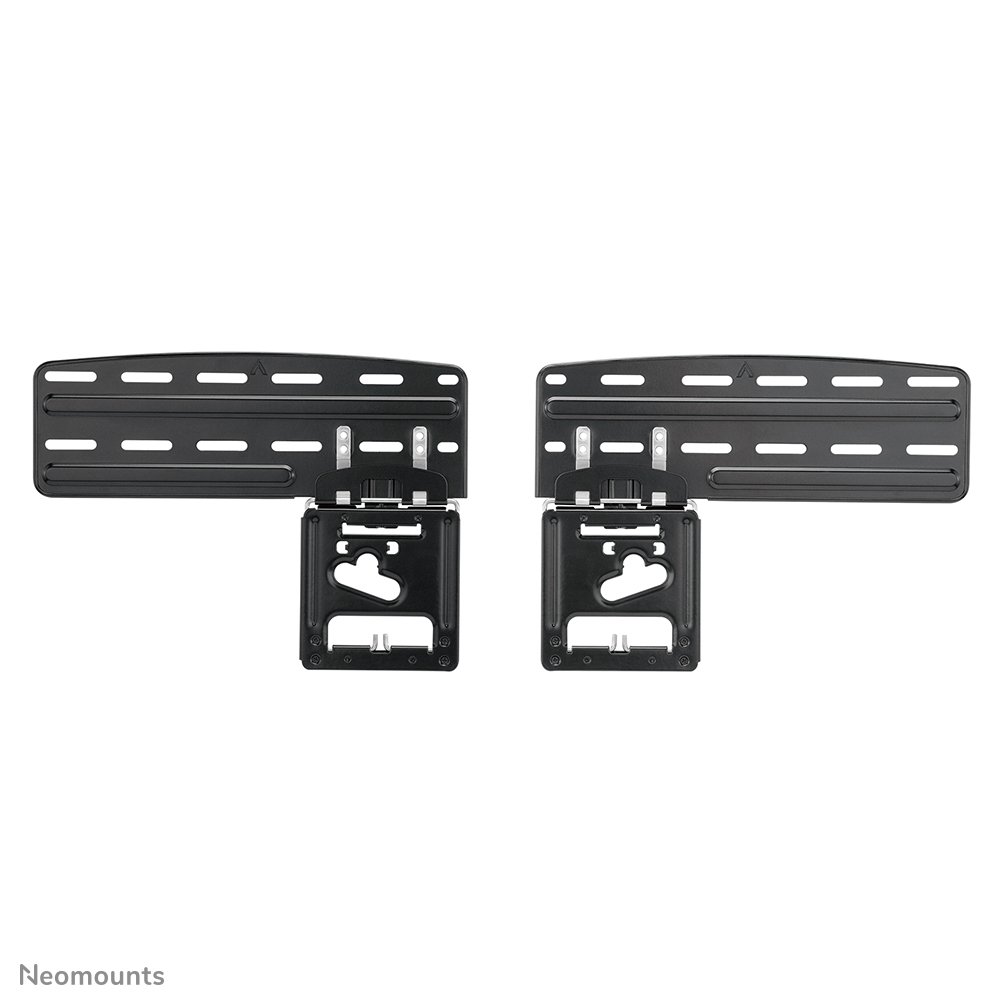

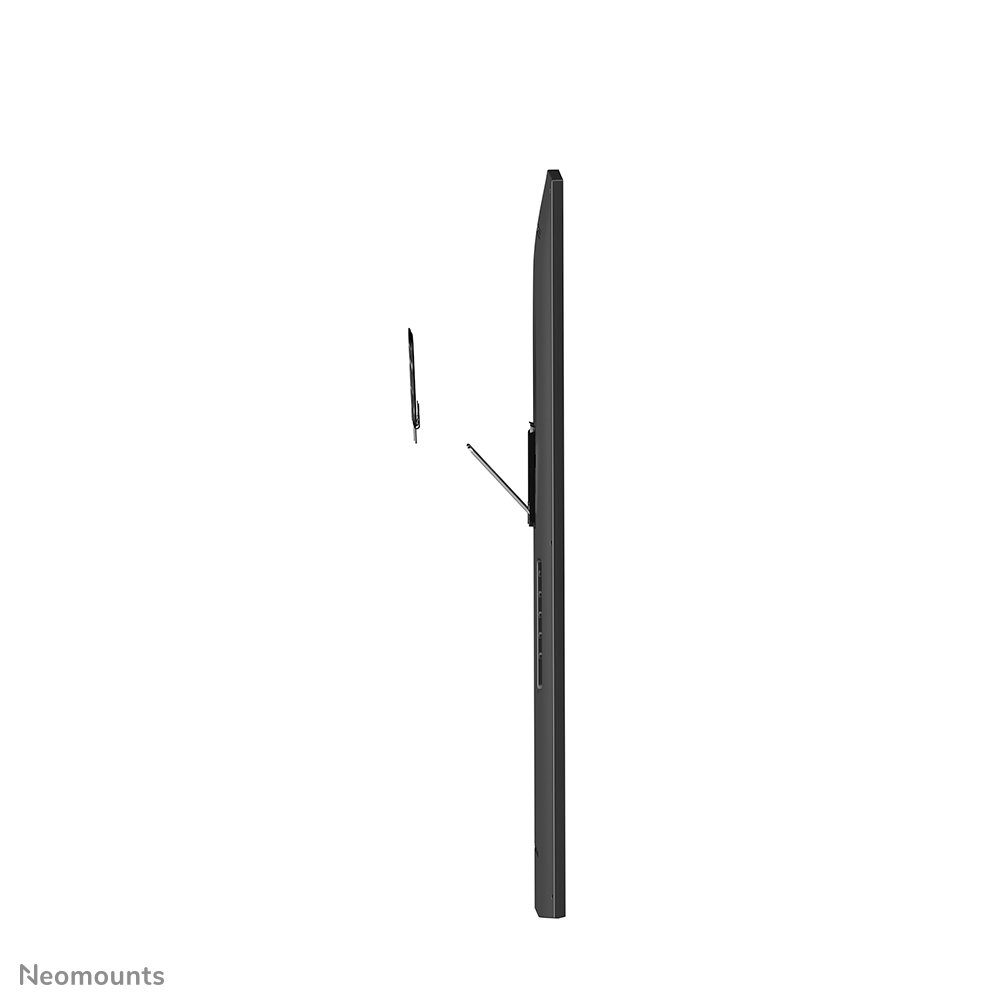

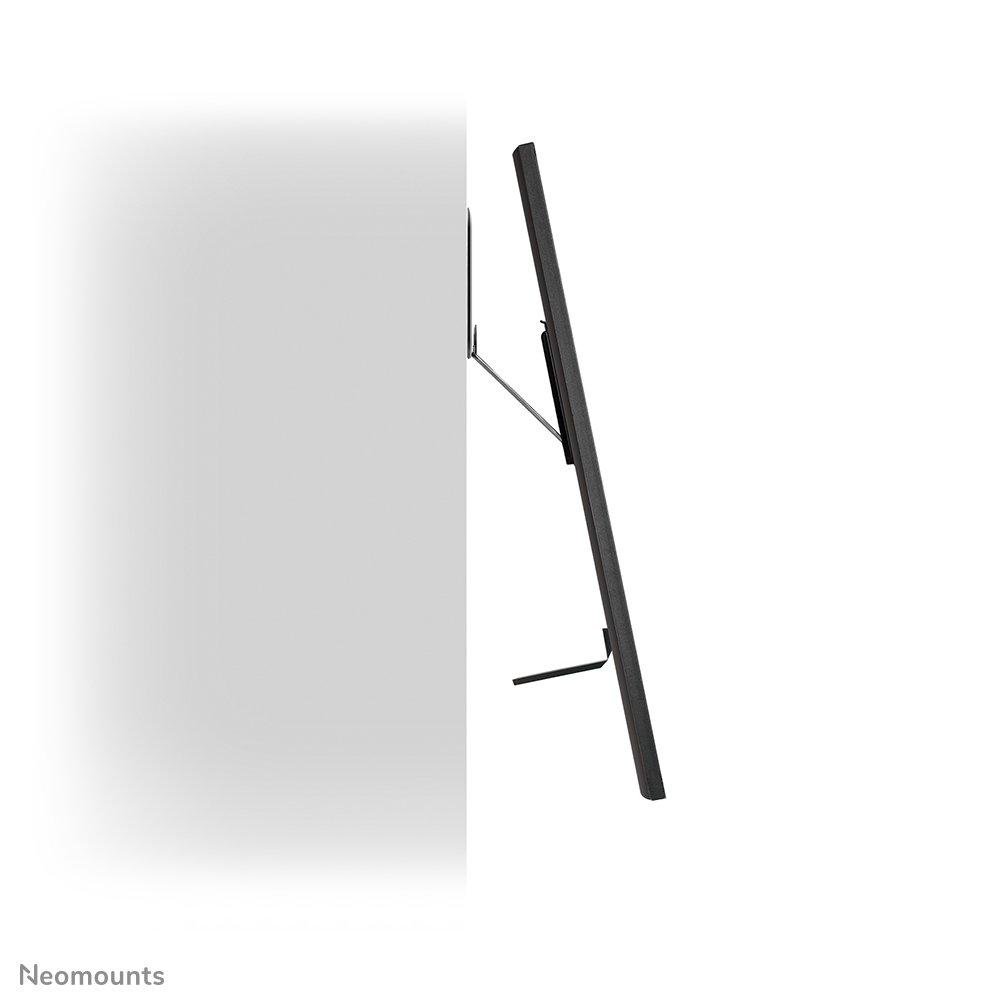

Your TV will look like a painting on the wall. Level adjustment is available for the perfect installation. The WL30-265BL1 is suitable for screens that meet VESA hole pattern 150x100 to 1200x800 mm and supports a maximum weight of 60kg. Strong magnetic contacts ensure solid placement of the screen while the convenient kickstand option allows easy access to cables and connectors behind the screen. Anti-skid pads ensure safe and scratch-free installation of the screen to the mount.
Specifications
| Min. screen size (inch) | 43 |
|---|---|
| Max. screen size (inch) | 85 |
| Max. weight (kg) | 60 |
| Screens | 1 |
| Min. VESA | 150x100 mm |
| Max. VESA | 1200x800 mm |
| VESA pattern | 200x400, 400x400, 400x600, 200x300, 300x300, 440x400, 500x400, 600x200, 600x300, 600x400, 680x300, 800x200, 400x300, 400x500, 600x500, 600x600, 800x500, 900x600, 200x100, 300x100, 1000x400, 1000x600, 460x640, 800x800, 300x900, 1000x700, 350x350, 1200x600, 400x200, 1000x800, 1200x800, 1200x900, 1400x800, 1500x600, 1600x600, 700x400, 500x500, 150x200, 800x450, 200x150, 200x200, 300x200, 800x400, 1500x900, 800x600 |
| Mount | Wall |
| Type | Fixed |
| Width (cm) | 64 cm |
| Depth (cm) | 0,75 cm |
| Height (cm) | 23,6 cm |
| Distance to wall (cm) | 0,75 cm |
| Cable management | No |
| Main material | Steel |
| Lockable | Not lockable |
| Net weight of product (kg) | 1.2 |
| Gross weight of packaging (kg) | 1.6 |
| Country of origin | China |
| EAN code | 8717371443900 |
Use and tips
A wall mount frees the floor and the furniture completely, which makes it the most durable option for meeting rooms, receptions and digital signage. Identify the wall type before installation: concrete and solid brick take the supplied anchors, while a hollow partition or a metal stud frame needs suitable fixings and often a reinforcement.
Frequently asked questions
Is my screen compatible?
This model accepts 43 to 85 inch, 60 kg maximum, VESA 150x100 to 1200x800. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure,our contact pageputs you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge:our Neomounts support pagetakes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
