Description

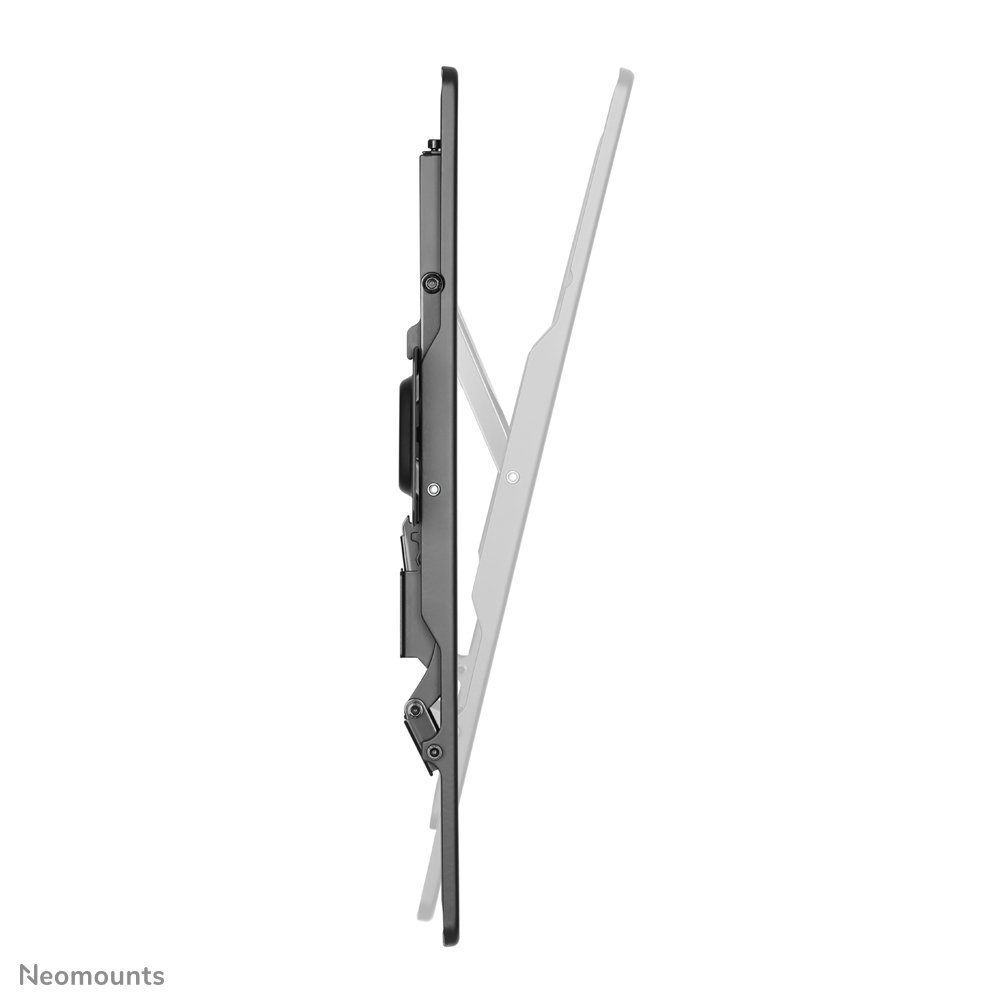

Neomounts' tilt (12°) technology allows the mount to change to a viewing angle to fully benefit from the capabilities of the flat screen. Ideal for flat screens that are mounted higher on the wall. The depth of this mount is 3 centimetres. Neomounts LED-W450BLACK is suitable for screens up to 55". The weight capacity of this product is 35 kg. The wall mount is suitable for screens that meet VESA hole pattern 100x100 to 400x400 mm. Create a clean design ambiance for your flat screen TV in a living room, bedroom or public environment. This bracket is ideal for screens that are mounted higher on the wall. All installation material is included with the product.
Specifications
| Min. screen size (inch) | 32 |
|---|---|
| Max. screen size (inch) | 55 |
| Max. weight (kg) | 35 |
| Screens | 1 |
| Min. VESA | 100x100 mm |
| Max. VESA | 400x400 mm |
| VESA pattern | 100x200, 200x400, 400x400, 200x300, 300x300, 400x300, 200x100, 300x100, 350x350, 400x200, 100x100, 200x200, 300x200 |
| Mount | Wall |
| Type | Tilt |
| Tilt (degrees) | 12° |
| Distance to wall (cm) | 3 cm |
| Main material | Steel |
| Net weight of product (kg) | 2.88 |
| Gross weight of packaging (kg) | 3.3 |
| Country of origin | China |
| EAN code | 8717371446420 |
Use and tips
A wall mount frees the floor and the furniture completely, which makes it the most durable option for meeting rooms, receptions and digital signage. Identify the wall type before installation: concrete and solid brick take the supplied anchors, while a hollow partition or a metal stud frame needs suitable fixings and often a reinforcement.
Frequently asked questions
Is my screen compatible?
This model accepts 32 to 55 inch, 35 kg maximum, VESA 100x100 to 400x400. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure,our contact pageputs you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge:our Neomounts support pagetakes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
