Description

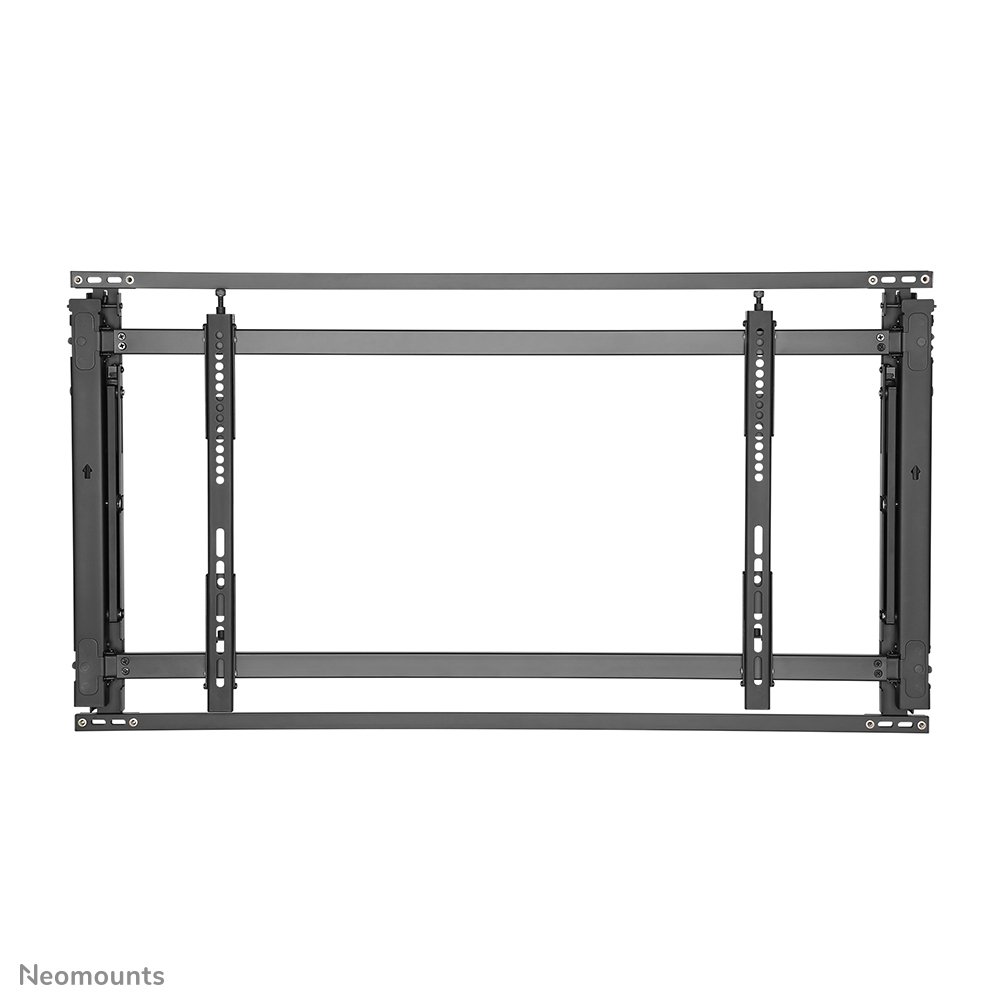

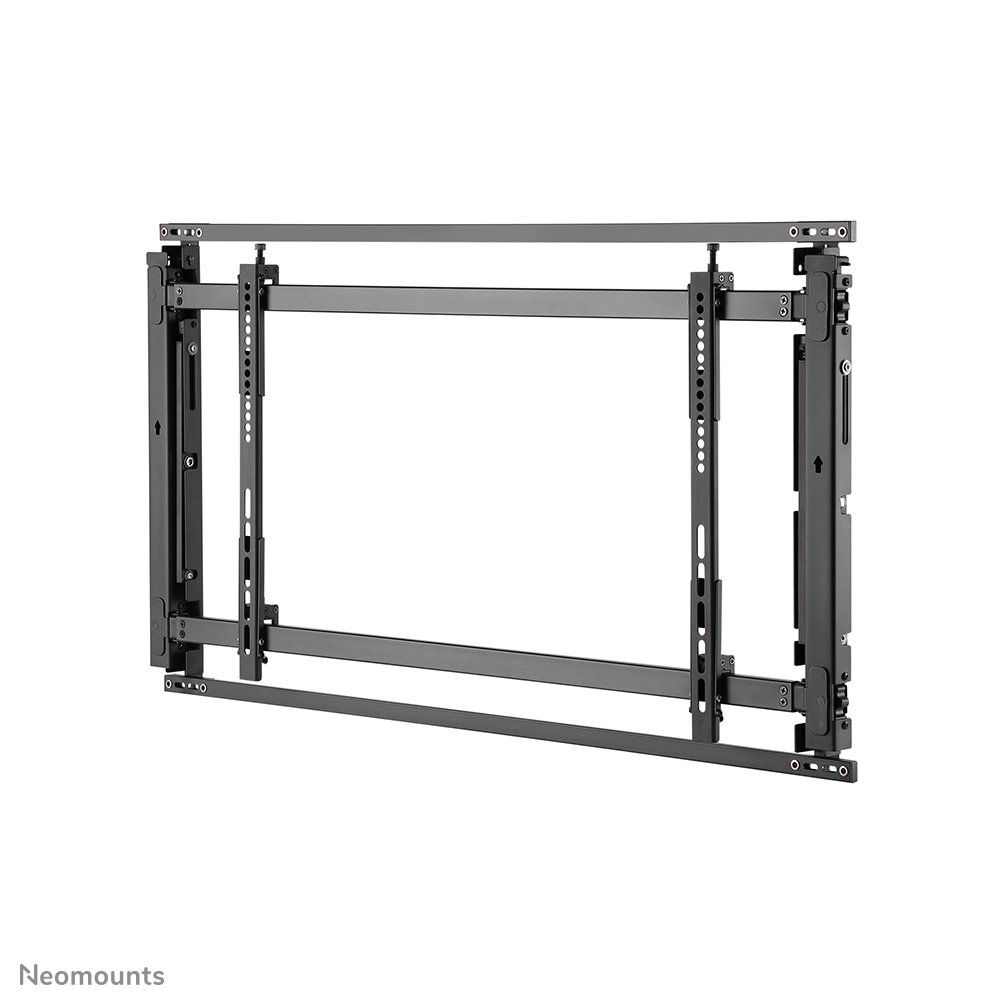

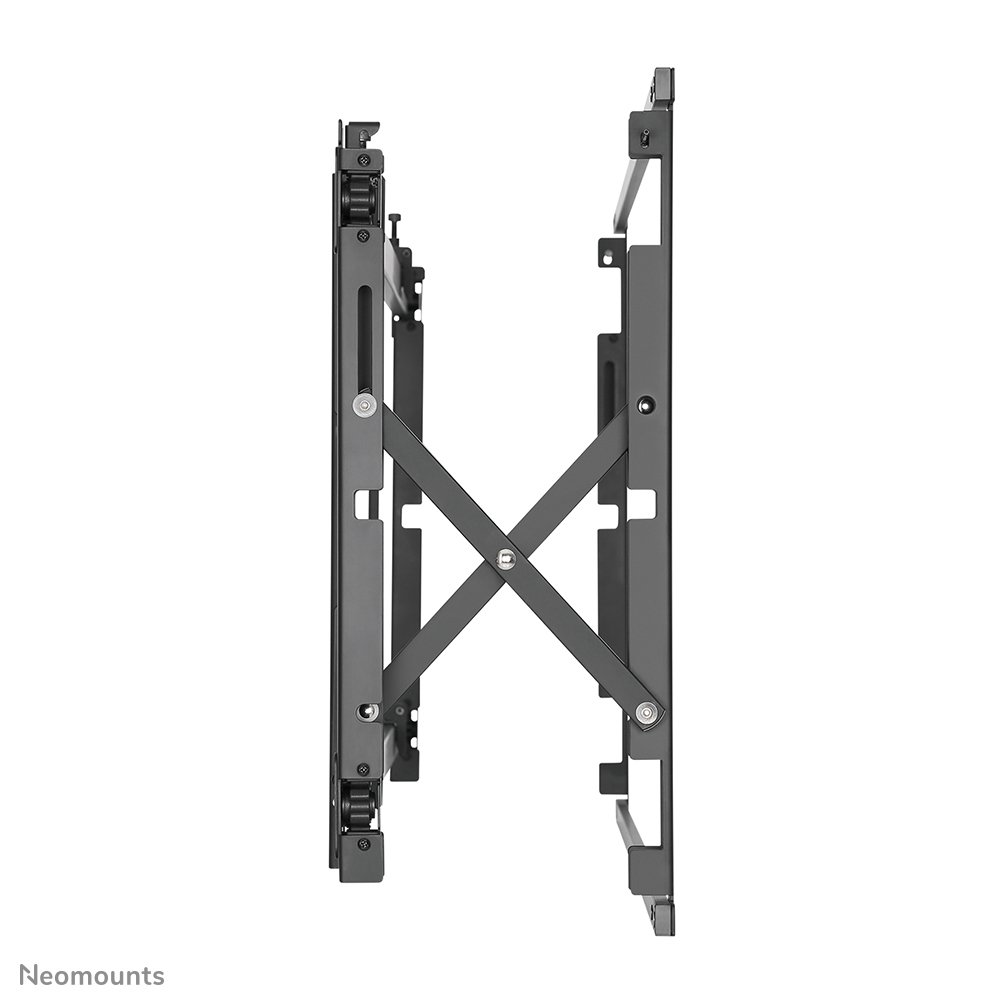

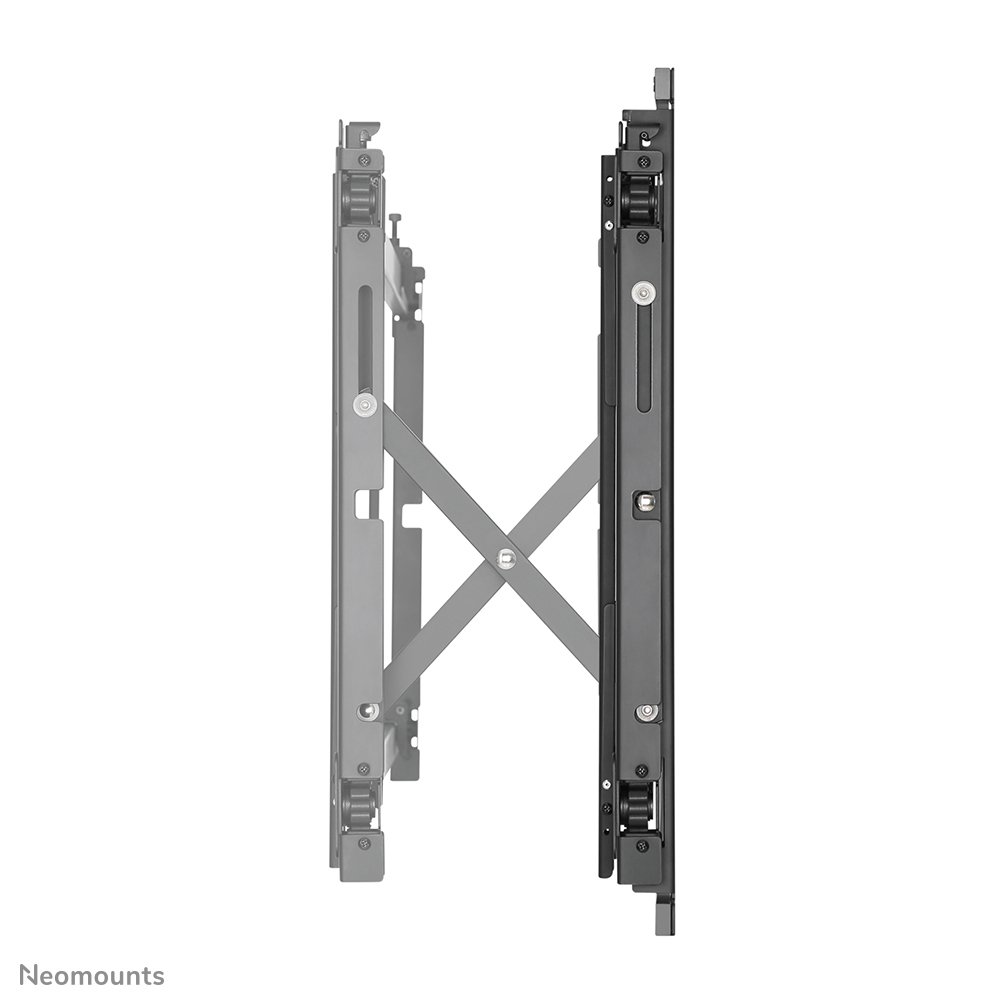

Depth of this mount is 5 to 20 centimetres. This wall mount is specially made to be used in video walls. The screen easily can be pulled out with the pull-out system. Neomounts LED-VW1750BLACK is suitable for flat screens up to 55" (140 cm). The weight capacity of this product is 35 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 200x200 to 600x400mm. Create a clean design videowall presentation with the Neomounts LED-VW1750BLACK videowall mount solution!.
Specifications
| Min. screen size (inch) | 32 |
|---|---|
| Max. screen size (inch) | 55 |
| Max. weight (kg) | 35 |
| Screens | 1 |
| Min. VESA | 200x200 mm |
| Max. VESA | 600x400 mm |
| VESA pattern | 200x400, 400x400, 400x600, 200x300, 300x300, 600x200, 600x300, 600x400, 400x300, 400x200, 200x200, 300x200 |
| Mount | Wall |
| Type | Fixed |
| Height adjustment | 54 cm |
| Width adjustment (cm) | 101 cm |
| Depth adjustment (cm) | 4,9-22,3 cm |
| Distance to wall (cm) | 4,9-22,3 cm |
| Cable management | No |
| Main material | Steel |
| Lockable | Not lockable |
| Net weight of product (kg) | 9.23 |
| Gross weight of packaging (kg) | 11.8 |
| Country of origin | China |
| EAN code | 8717371447311 |
Use and tips
A wall mount frees the floor and the furniture completely, which makes it the most durable option for meeting rooms, receptions and digital signage. Identify the wall type before installation: concrete and solid brick take the supplied anchors, while a hollow partition or a metal stud frame needs suitable fixings and often a reinforcement.
Frequently asked questions
Is my screen compatible?
This model accepts 32 to 55 inch, 35 kg maximum, VESA 200x200 to 600x400. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure,our contact pageputs you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge:our Neomounts support pagetakes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
