Description

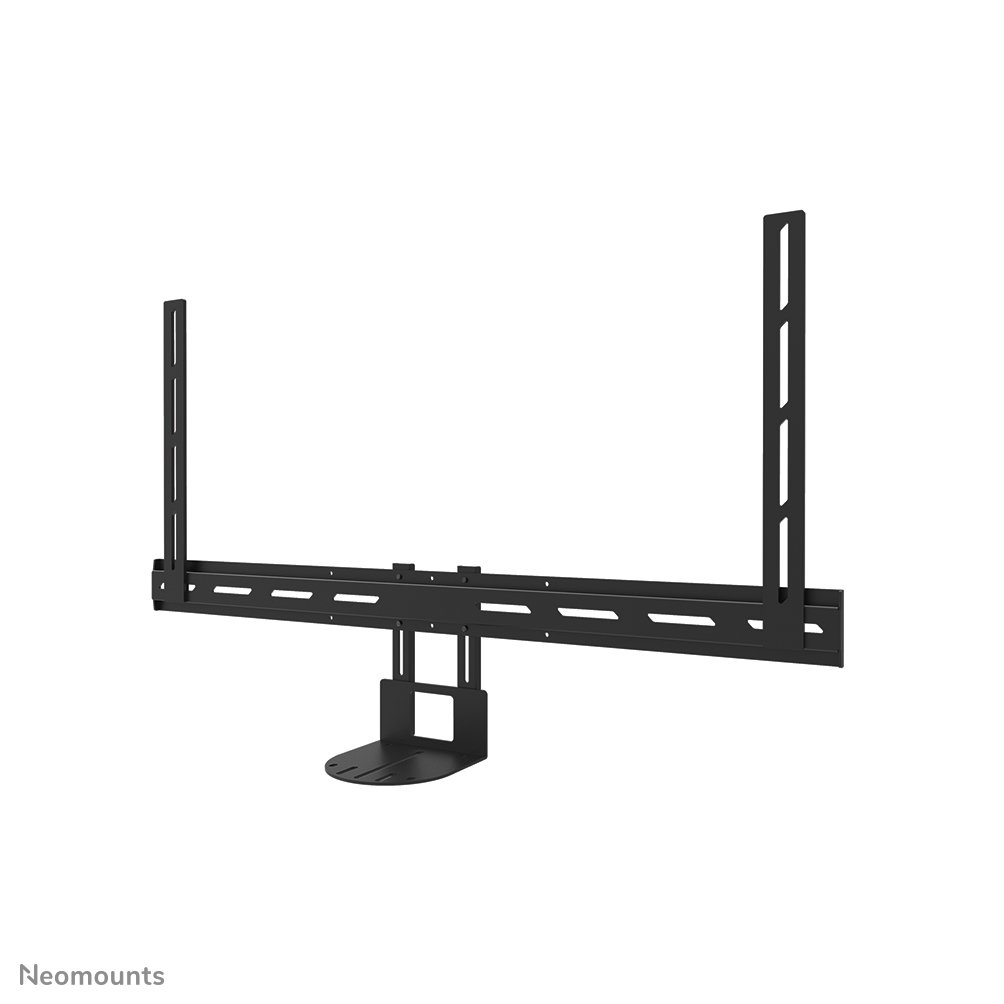

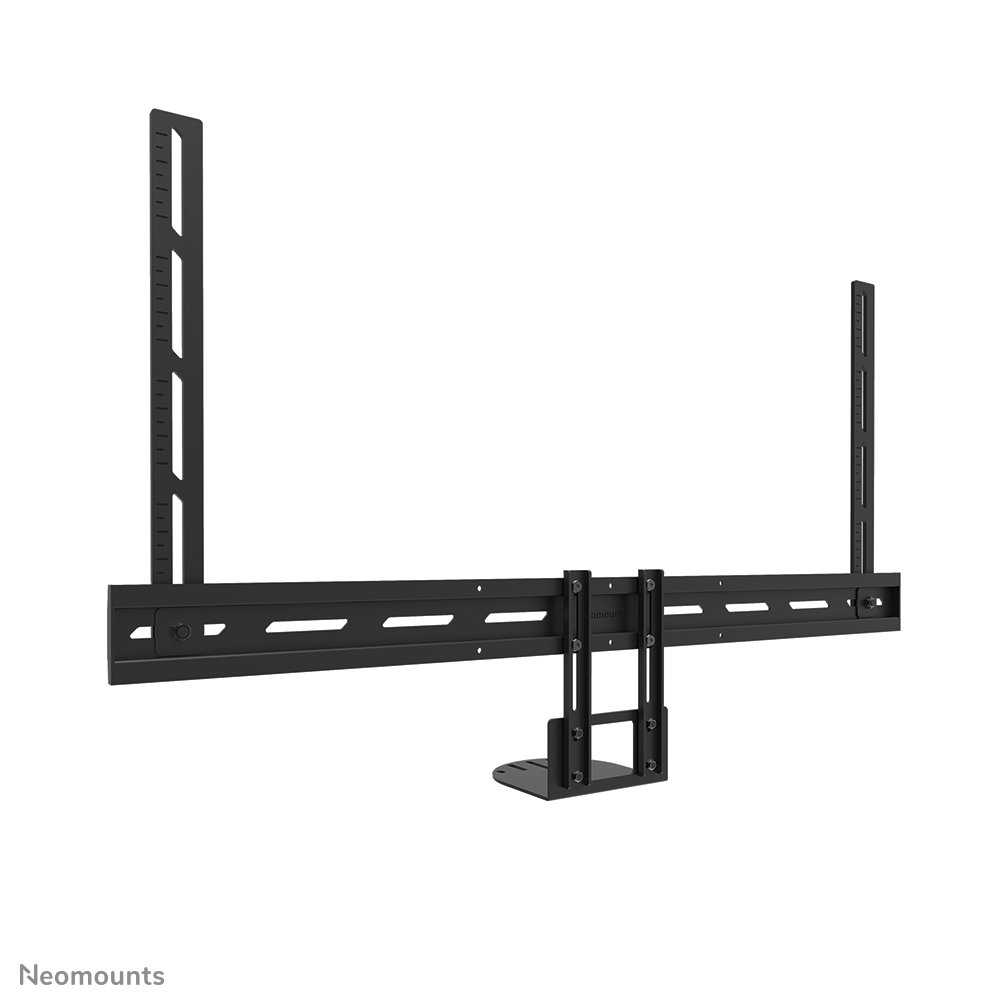

Both the camera support and the backplate brackets are height-adjustable for maximum flexibility. Compatible with virtually all* PTZ/UC cameras, the AV50-500BL guarantees broad applicability. The camera mounting allows both width and height variation, while the VESA frame adjusts in four positions (200/400/600/800). The kit is suitable for VESA orientated wall, floor, desk, and ceiling mounts. Despite its versatility, installation is simple and precise thanks to ruler-guided alignment. * The Neomounts AV50-500BL kit is truly universal, compatible with any PTZ/UC camera that fits within the bracket?s range (see line drawing).
Specifications
| Min. screen size (inch) | 43 |
|---|---|
| Max. screen size (inch) | 110 |
| Max. weight (kg) | 5 |
| Min. VESA | 200x200 mm |
| Max. VESA | 800x600 mm |
| VESA pattern | 200x400, 400x400, 400x600, 200x300, 600x200, 600x300, 600x400, 800x200, 400x300, 400x500, 600x500, 600x600, 800x500, 800x800, 400x200, 800x450, 200x200, 800x400, 800x600 |
| Height adjustment | 0-5,5 cm |
| Width (cm) | 90 cm |
| Depth (cm) | 15,8 cm |
| Height (cm) | 55,2 cm |
| Main material | Steel |
| Net weight of product (kg) | 4.5 |
| Gross weight of packaging (kg) | 5.8 |
| Country of origin | China |
| EAN code | 8717371449414 |
Use and tips
This accessory completes an existing installation and is chosen on dimensions first: check the mechanical compatibility with your mount and the load rating before ordering. If you are unsure about your setup, our contact page puts you in touch with our technical team.
Frequently asked questions
Is my screen compatible?
This model accepts 43 to 110 inch, 5 kg maximum, VESA 200x200 to 800x600. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure,our contact pageputs you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge:our Neomounts support pagetakes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
