Description

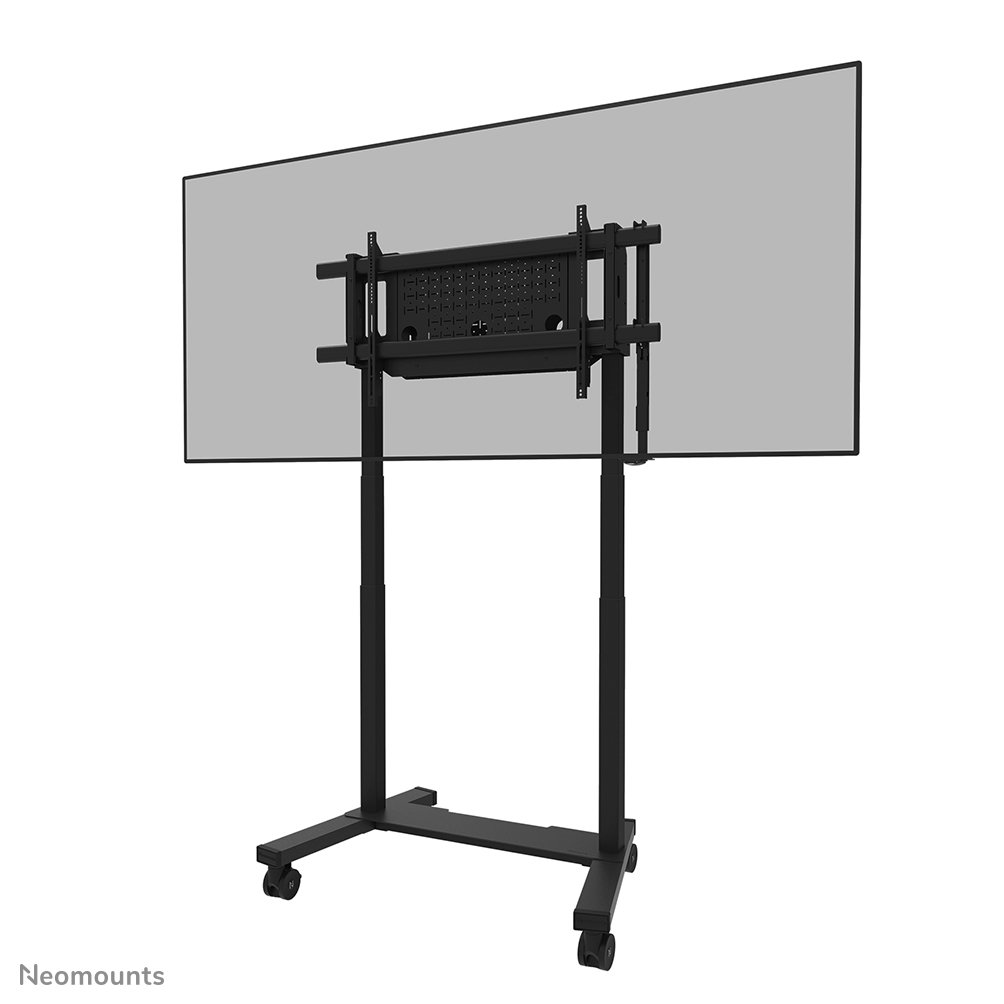

Operation is smooth and precise via a conveniently positioned control panel. The anti-collision system ensures safe height adjustments, and the brackets can be locked with a padlock (not included) for extra security. A ventilated, lockable hardware compartment with a cable opening can be optionally installed to provide clean and secure equipment storage. Designed for maximum mobility, the MOVE Lift XL features a large handlebar and heavy-duty 100 mm double-locking castor wheels for easy movement across any surface, including thresholds and carpet. The open wheelbase design allows easy access to (touch) displays and improves maneuverability around obstacles. A cable duct is included to route and conceal cables neatly from the floor stand to the screen. The MOVE Lift XL comes partially pre-assembled for quick, effortless installation.
Specifications
| Min. screen size (inch) | 75 |
|---|---|
| Max. screen size (inch) | 115 |
| Max. weight (kg) | 160 |
| Screens | 1 |
| Min. VESA | 200x200 mm |
| Max. VESA | 1200x600 mm |
| VESA pattern | 200x400, 400x400, 400x600, 200x300, 300x300, 440x400, 500x400, 600x200, 600x300, 600x400, 680x300, 800x200, 400x300, 400x500, 600x500, 600x600, 800x500, 900x600, 1000x400, 1000x600, 460x640, 350x350, 1200x600, 400x200, 700x400, 500x500, 800x450, 200x200, 300x200, 800x400, 800x600 |
| Mount | Floor |
| Type | Fixed |
| Height adjustment | 119,2-184,2 |
| Width (cm) | 125,3 |
| Depth (cm) | 81,6 |
| Height (cm) | 215,4 |
| Cable management | Yes |
| Main material | Steel |
| Lockable | Lockable - Padlock not included |
| Net weight of product (kg) | 28.5 |
| Gross weight of packaging (kg) | 34.5 |
| Country of origin | China |
| EAN code | 8717371449889 |
Use and tips
A mobile stand lets you move the screen from room to room without drilling again, which suits training, demonstrations and rented premises. Check the clear width of your doorways and the total loaded weight, and always lock the castors before handling the screen.
Frequently asked questions
Is my screen compatible?
This model accepts 75 to 115 inch, 160 kg maximum, VESA 200x200 to 1200x600. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure, our contact page puts you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge: our Neomounts support page takes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
