Description

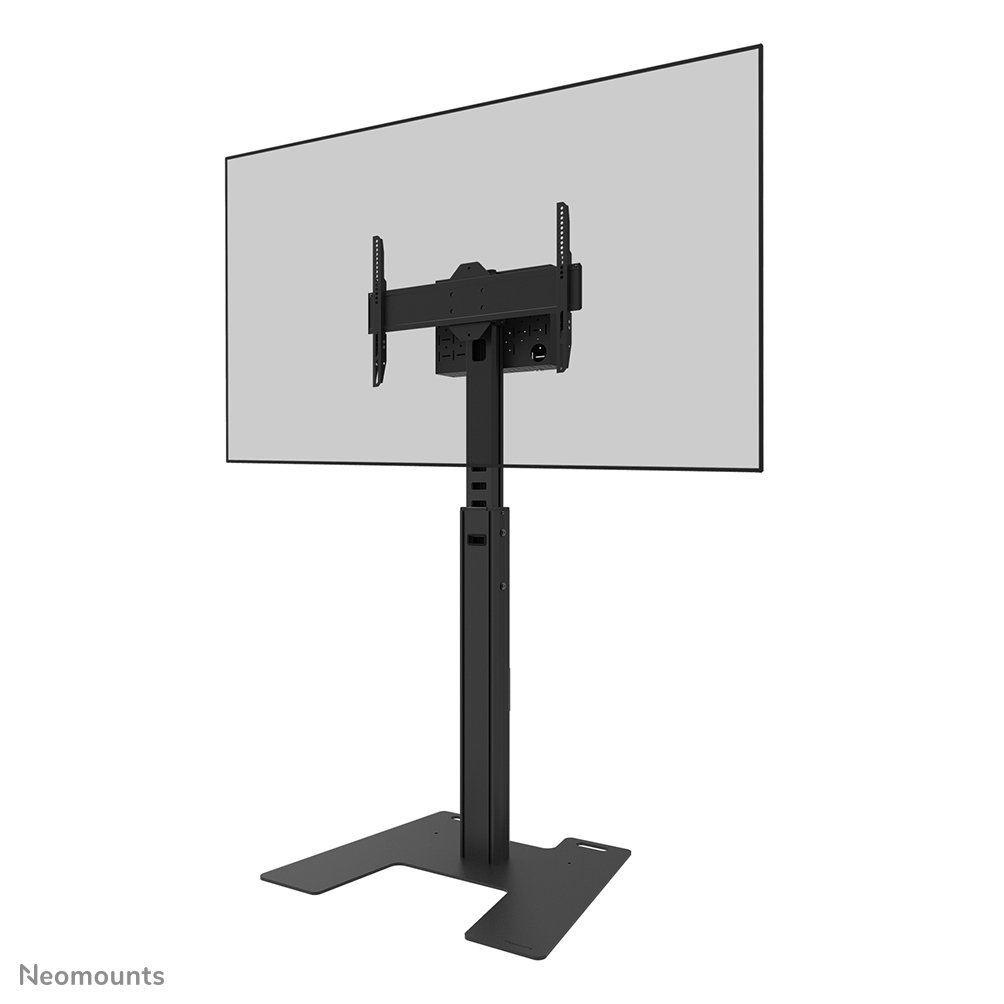

The floor stand is manually adjustable in height (104-157 cm), as well as the bracket head. A lockable, ventilated hardware compartment with cable opening is included and optional for installation (both portrait and landscape). The MOVE Up floor stand features a clever internal cable management system with various in and out outlets for flexible use (above, in the middle where the media player is placed and at the bottom) and conceals and routes cables from floor stand to screen. The FL45S-825BL1 has a solid steel floor plate equipped with fixing holes to optionally bolt the stand to the floor for additional safety. The floor plate has 2 handles for safer relocating. The AFLS-825BL1 and AV1-825BL videobar & multimedia kits are optionally available and enable the installation of a separate cam shelf and multimedia device shelf to the trolley.
Specifications
| Min. screen size (inch) | 37 |
|---|---|
| Max. screen size (inch) | 75 |
| Max. weight (kg) | 70 |
| Screens | 1 |
| Min. VESA | 100x100 mm |
| Max. VESA | 600x400 mm |
| VESA pattern | 100x200, 200x400, 400x400, 200x300, 300x300, 300x400, 440x400, 500x400, 600x200, 600x300, 600x400, 400x300, 200x100, 300x100, 100x150, 120x120, 350x350, 400x200, 100x100, 200x200, 300x200 |
| Mount | Floor |
| Type | Fixed |
| Tilt (degrees) | +0°, -5 |
| Height adjustment | 104-157 cm |
| Width (cm) | 86,5 cm |
| Depth (cm) | 70 cm |
| Height (cm) | 178,5 cm |
| Cable management | Yes |
| Main material | Steel |
| Lockable | Lockable - Lock not included |
| Net weight of product (kg) | 13.6 |
| Gross weight of packaging (kg) | 17.1 |
| Country of origin | China |
| EAN code | 8717371443085 |
Use and tips
A mobile stand lets you move the screen from room to room without drilling again, which suits training, demonstrations and rented premises. Check the clear width of your doorways and the total loaded weight, and always lock the castors before handling the screen.
Frequently asked questions
Is my screen compatible?
This model accepts 37 to 75 inch, 70 kg maximum, VESA 100x100 to 600x400. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure, our contact page puts you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge: our Neomounts support page takes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
