Description

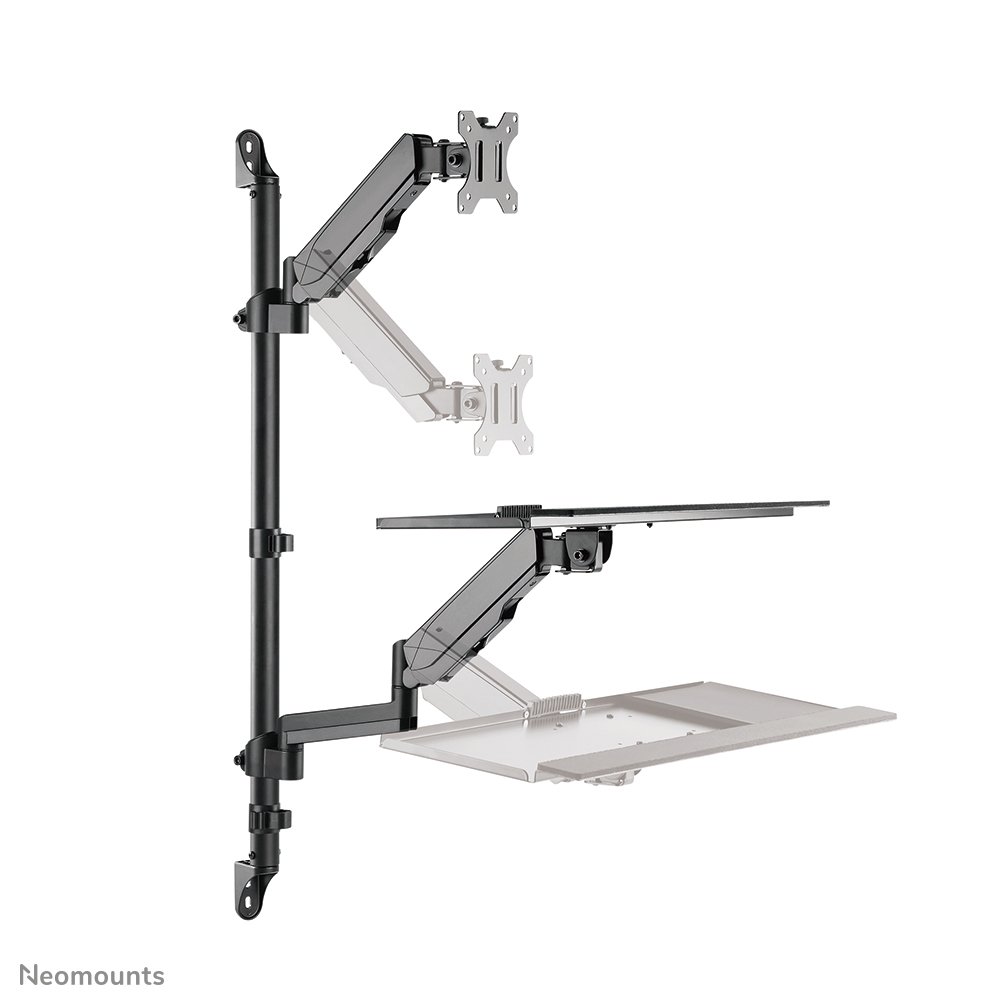

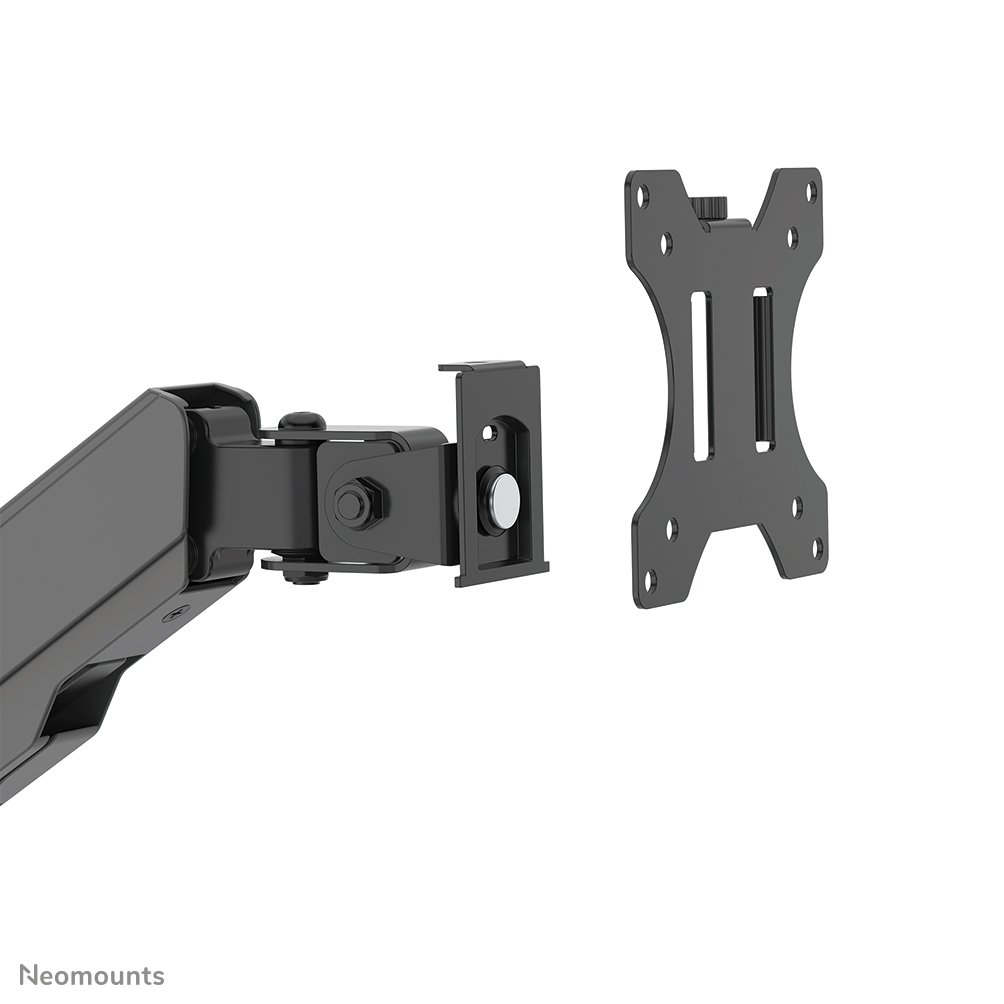

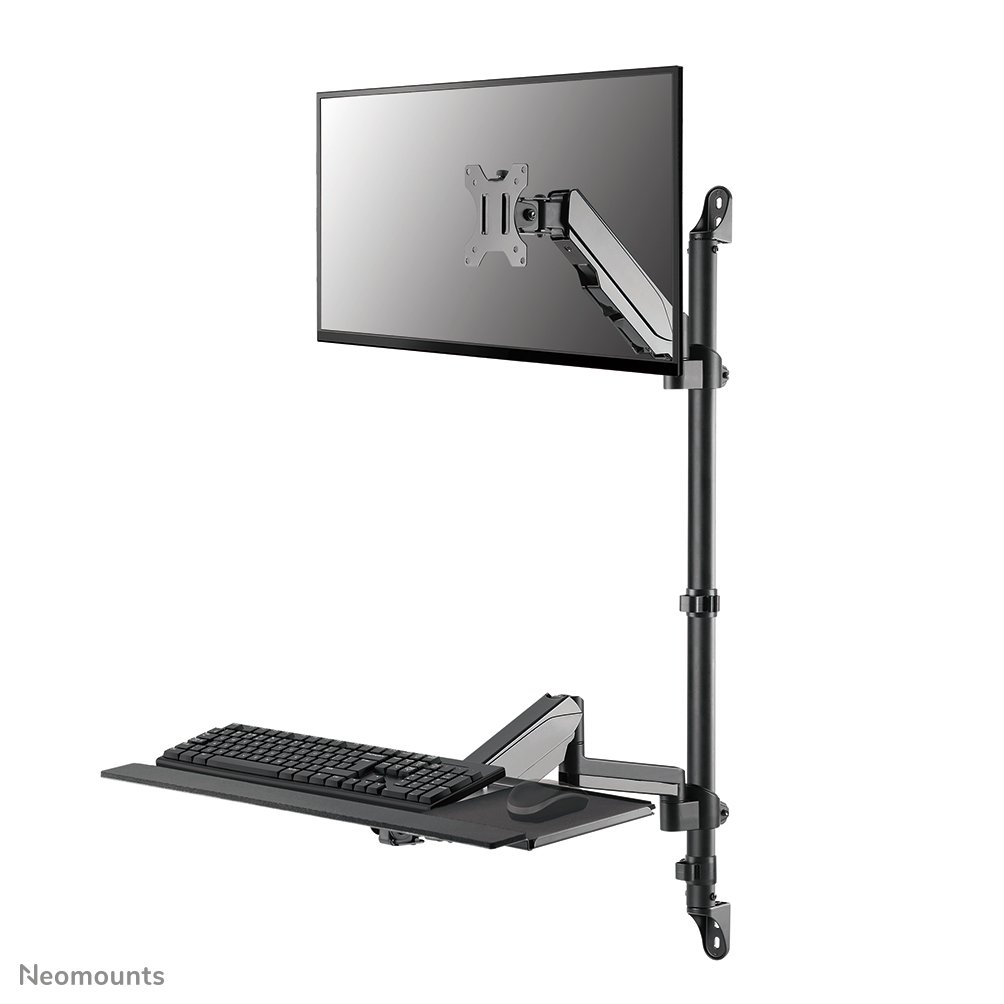

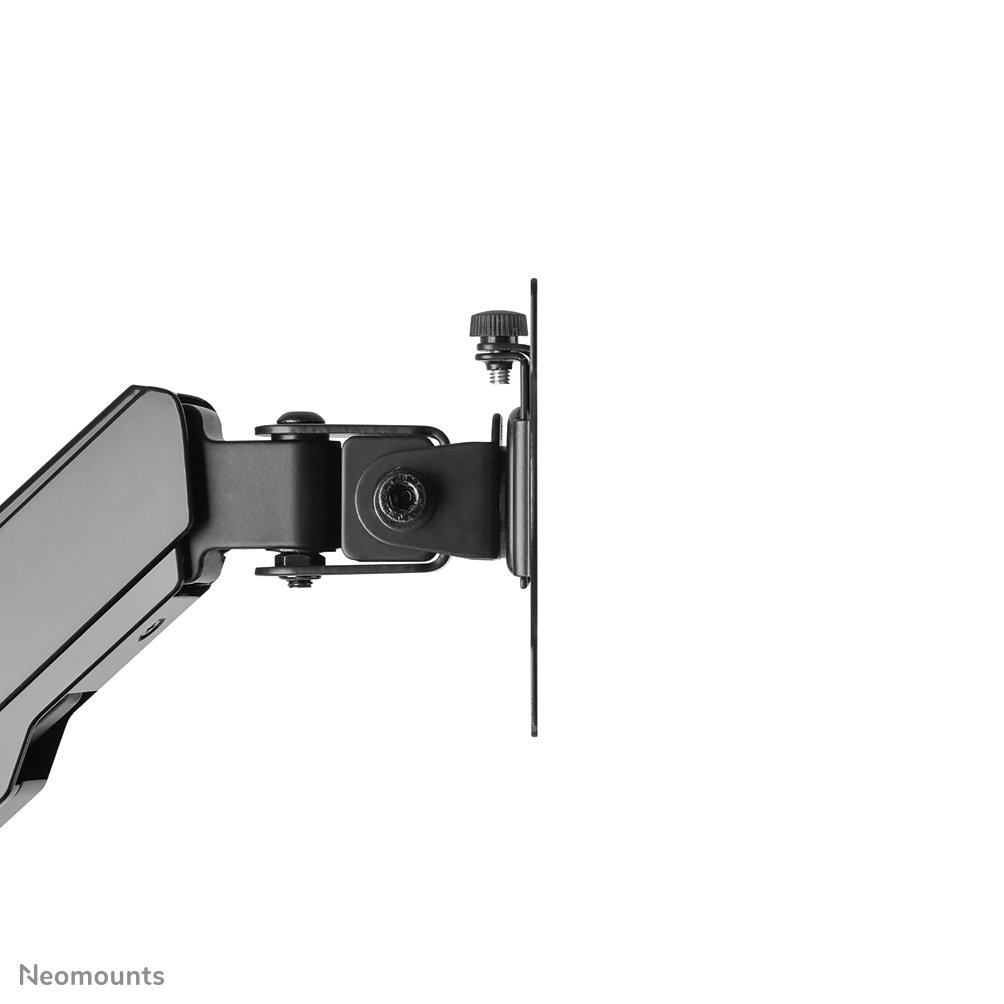

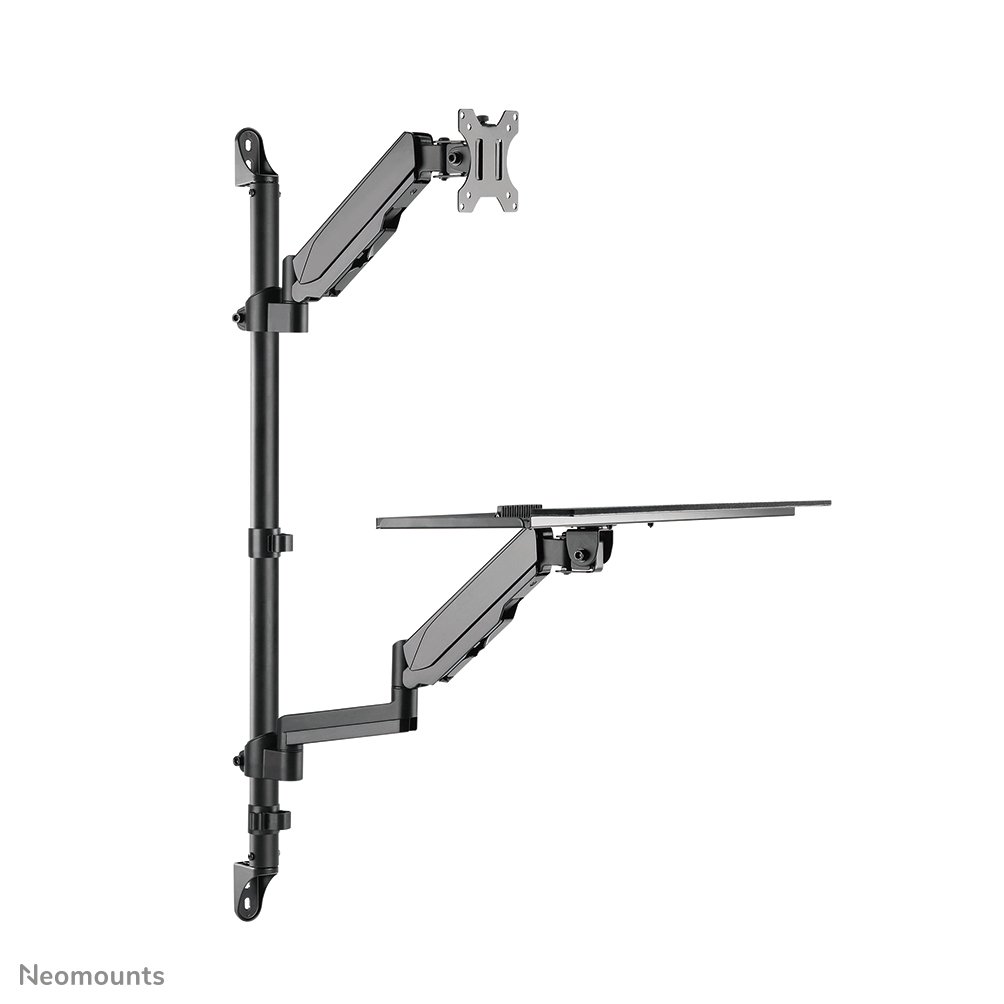

The versatile tilt (70°), rotate (360°) and swivel (180°) technology allows the monitor arm to change to any viewing angle to fully benefit from the capabilities of the screen. The keyboard tray includes a wrist support and mouse pad for optimum comfort. The wall mounted workstation has a large height adjustment range of 44-95 cm. To ensure quick repositioning and the most optimal working position, the WL90-325BL1 features gas spring height adjustment for both the monitor arm and keyboard tray arm. The smart cable management system ensures a secure routing of the cables. The WL90-325BL1 is suitable for screens that are compatible with VESA hole pattern 75x75 or 100x100 mm and is equipped with a Quick-release VESA system for fast and easy installation. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available.
Specifications
| Min. screen size (inch) | 17 |
|---|---|
| Max. screen size (inch) | 32 |
| Min. weight (kg) | 1 |
| Max. weight (kg) | 9 |
| Max. weight curved/ultra-wide | 6 |
| Screens | 1 |
| Min. VESA | 75x75 mm |
| Max. VESA | 100x100 mm |
| VESA pattern | 75x75, 100x100 |
| Mount | Wall |
| Type | Full motion |
| Tilt (degrees) | +35°, -35° |
| Rotate (degrees) | +180°, -180° |
| Swivel (degrees) | +90°, -90° |
| Height adjustment | 44-95 cm |
| Width adjustment (cm) | 52,4 cm |
| Depth adjustment (cm) | 6,8-37,4 cm |
| Clamp range | 1-8,8 cm |
| Width (cm) | 65,4 cm |
| Depth (cm) | 73 cm |
| EAN code | 8717371443702 |
Use and tips
A sit-stand workstation is set so that the forearms stay horizontal in both positions, with the screen at eye level. Alternating matters more than standing itself: change posture several times a day rather than standing for hours.
Frequently asked questions
Is my screen compatible?
This model accepts 17 to 32 inch, 9 kg maximum, VESA 75x75 to 100x100. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure,our contact pageputs you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge:our Neomounts support pagetakes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
