Description

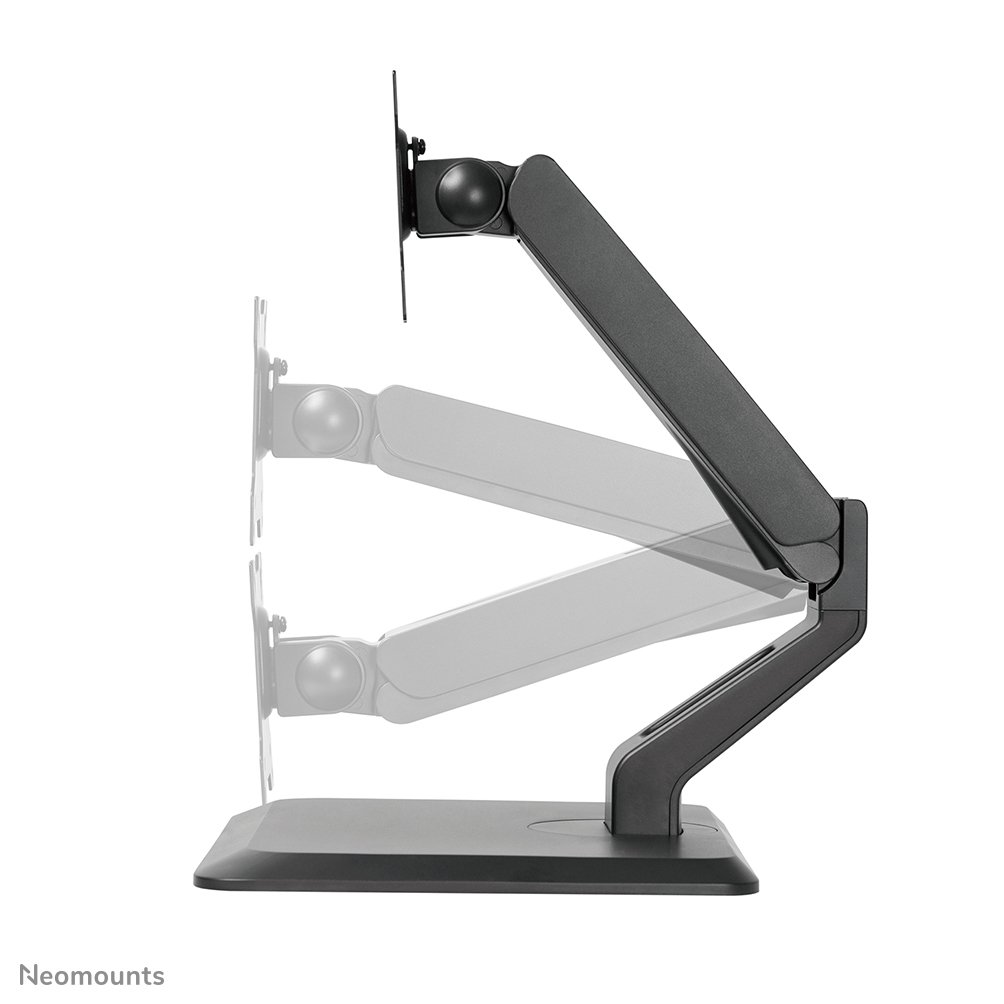

The mount is easily height adjustable from 7,5 to 32,5 centimetres using a gas spring. Depth 25 centimetres. Neomounts FPMA-D885BLACK is suitable for screens up to 32" (81 cm). The weight capacity of this product is 10 kg. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates. By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area. All installation material is included with the product.
Specifications
| Min. screen size (inch) | 15 |
|---|---|
| Max. screen size (inch) | 32 |
| Min. weight (kg) | 2 |
| Max. weight (kg) | 10 |
| Screens | 1 |
| Min. VESA | 75x75 mm |
| Max. VESA | 100x100 mm |
| VESA pattern | 75x75, 100x100 |
| Mount | Desk |
| Desk mount | Stand |
| Type | Tilt, Rotate, Swivel, Fixed, Full motion |
| Tilt (degrees) | 180° |
| Rotate (degrees) | 360° |
| Swivel (degrees) | 80° |
| Height adjustment | 7,5-32,5 cm |
| Width adjustment (cm) | 32,5 cm |
| Depth adjustment (cm) | 25 cm |
| Cable management | Yes |
| Main material | Steel |
| Net weight of product (kg) | 3.87 |
| EAN code | 8717371448035 |
Use and tips
A freestanding base is set up in minutes without drilling or clamping the desk, which suits fragile desktops and shared workstations. Allow for the depth required behind the screen and check the height adjustment range: the top of the panel should sit at eye level when seated.
Frequently asked questions
Is my screen compatible?
This model accepts 15 to 32 inch, 10 kg maximum, VESA 75x75 to 100x100. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure,our contact pageputs you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge:our Neomounts support pagetakes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
