Description

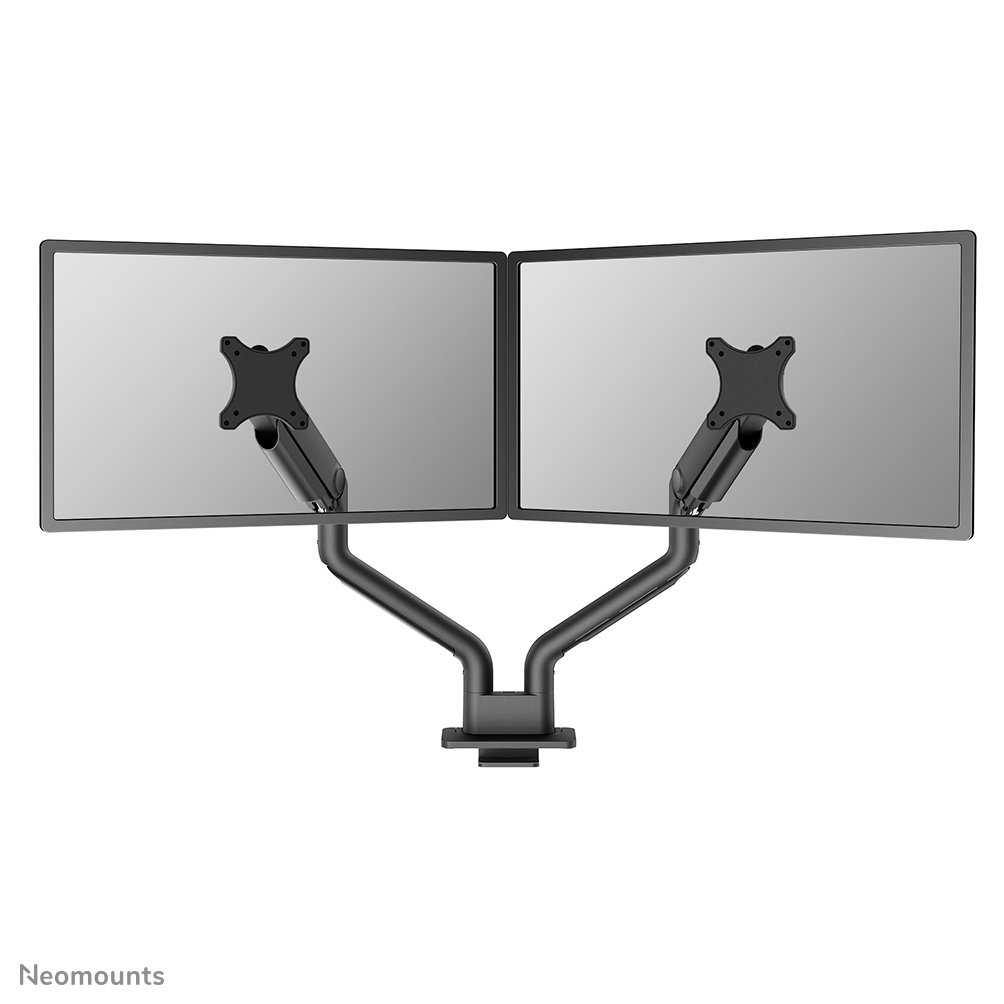

The NEXT One features a strengthened head to support a higher maximum weight up to 18 kg per screen. The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20,2-52,2 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position. The DS70S-950BL2 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables. The black VESA plates of the NEXT One integrate stylishly with the black back of your screens. The DS70S-950BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm.
Specifications
| Min. screen size (inch) | 17 |
|---|---|
| Max. screen size (inch) | 35 |
| Min. weight (kg) | 1 |
| Max. weight (kg) | 18 |
| Max. weight curved/ultra-wide | 15 |
| Screens | 2 |
| Min. VESA | 75x75 mm |
| Max. VESA | 100x100 mm |
| VESA pattern | 75x75, 100x100 |
| Mount | Desk |
| Desk mount | Grommet, Clamp |
| Type | Full motion |
| Tilt (degrees) | +90°, -90° |
| Rotate (degrees) | +180°, -180° |
| Swivel (degrees) | +90°, -90° |
| Height adjustment | 20,2-52,2 cm |
| Width adjustment (cm) | 115,9 cm |
| Depth adjustment (cm) | 8,8-62,5 cm |
| Clamp range | 1-5,5 cm |
| Width (cm) | 18,6 cm |
| EAN code | 8717371441227 |
Use and tips
A desk arm frees up the work surface and puts the screen at the right height, which reduces neck and shoulder strain over a full day. Before buying, check the desk thickness and whether a grommet hole is available, and confirm that your screen weight stays within the stated range: a screen that is too heavy prevents the spring from holding its position.
Frequently asked questions
Is my screen compatible?
This model accepts 17 to 35 inch, 18 kg maximum, VESA 75x75 to 100x100. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure, our contact page puts you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 10 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge: our Neomounts support page takes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
