Description

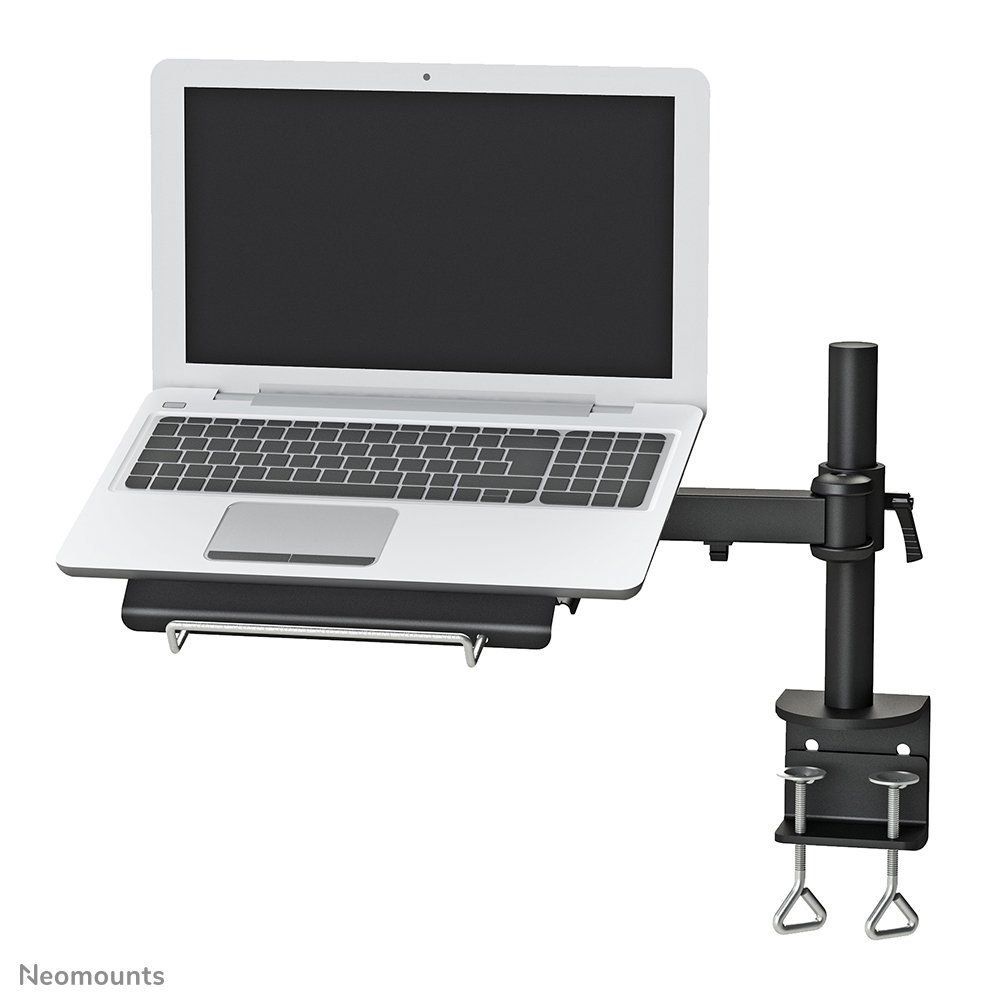

They keyboard holder included stores extra keyboards if used. Neomounts versatile tilt (30°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the notebook. The mount is manually height adjustable from 0 to 26 centimetres. Depth adjustable from 0 to 57 centimetres. An innovative cable management conceals and routes cables from mount to notebook. Hide your cables to keep the workplace nice and tidy. Neomounts NOTEBOOK-D100 has two pivot points and is suitable for notebooks up to 22" (55 cm). The weight capacity of this product is 10 kg. The desk mount is suitable for most notebooks. By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area. All installation material is included with the product.
Specifications
| Min. screen size (inch) | 10 |
|---|---|
| Max. screen size (inch) | 22 |
| Max. weight (kg) | 10 |
| Screens | 1 |
| Min. VESA | 75x75 mm |
| Max. VESA | 75x75 mm |
| Type | Tilt, Swivel, Full motion |
| Tilt (degrees) | 30° |
| Swivel (degrees) | 180° |
| Height adjustment | 0-26 cm |
| Depth adjustment (cm) | 0-57 cm |
| Main material | Steel |
| Net weight of product (kg) | 4.18 |
| Gross weight of packaging (kg) | 4.5 |
| Country of origin | Taiwan |
| EAN code | 8717371441593 |
Use and tips
A laptop stand raises the screen to eye level and is used with a separate keyboard and mouse: that combination is what delivers the real postural benefit, since the laptop alone stays too low. Check the supported screen size and weight, and keep the ventilation openings clear.
Frequently asked questions
Is my screen compatible?
This model accepts 10 to 22 inch, 10 kg maximum, VESA 75x75. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure, our contact page puts you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge: our Neomounts support page takes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
