Description

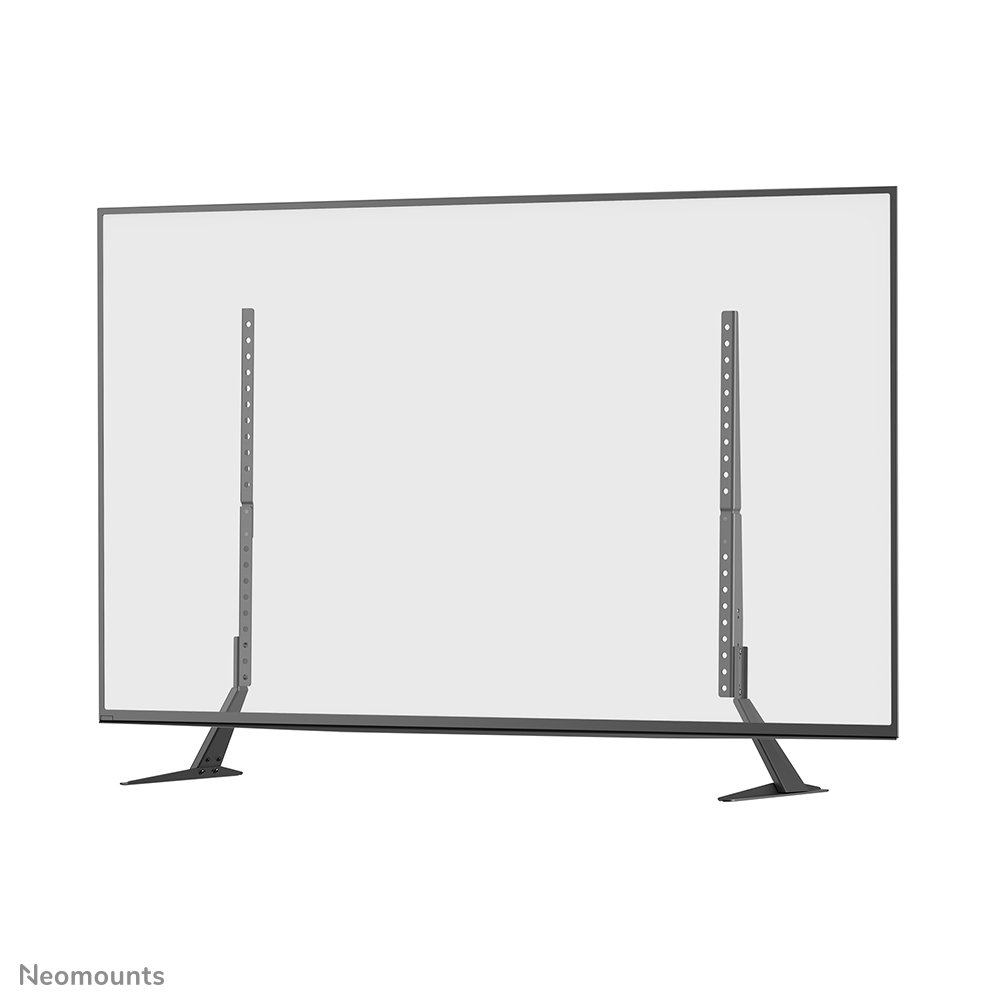

For maximum compatibility the DS45-430BL19 is suitable for screens that meet pattern 200x200 to 800x400 mm. Additionally, the DS45-430BL19 is also available for non-standard VESA patterns. The DS45-430BL19 TV stand provides an excellent solution for users who prefer not to drill holes in walls or for those who no longer have the original TV stand.
Specifications
| Min. screen size (inch) | 23 |
|---|---|
| Max. screen size (inch) | 75 |
| Max. weight (kg) | 40 |
| Screens | 1 |
| Min. VESA | 200x200 mm |
| Max. VESA | 800x400 mm |
| VESA pattern | 200x400, 400x400, 200x300, 300x300, 440x400, 500x400, 600x200, 600x300, 600x400, 800x200, 400x300, 300x100, 400x200, 700x400, 200x200, 300x200, 800x400 |
| Mount | Desk |
| Desk mount | Stand |
| Type | Fixed |
| Height adjustment | 6,2 cm |
| Width (cm) | 42,6 cm |
| Depth (cm) | 35,5 cm |
| Height (cm) | 73,5 cm |
| Cable management | Yes |
| Main material | Steel |
| Lockable | Not lockable |
| Net weight of product (kg) | 2.4 |
| Gross weight of packaging (kg) | 2.6 |
| Country of origin | China |
| EAN code | 8717371445294 |
Use and tips
A freestanding base is set up in minutes without drilling or clamping the desk, which suits fragile desktops and shared workstations. Allow for the depth required behind the screen and check the height adjustment range: the top of the panel should sit at eye level when seated.
Frequently asked questions
Is my screen compatible?
This model accepts 23 to 75 inch, 40 kg maximum, VESA 200x200 to 800x400. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure,our contact pageputs you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge:our Neomounts support pagetakes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
