Description

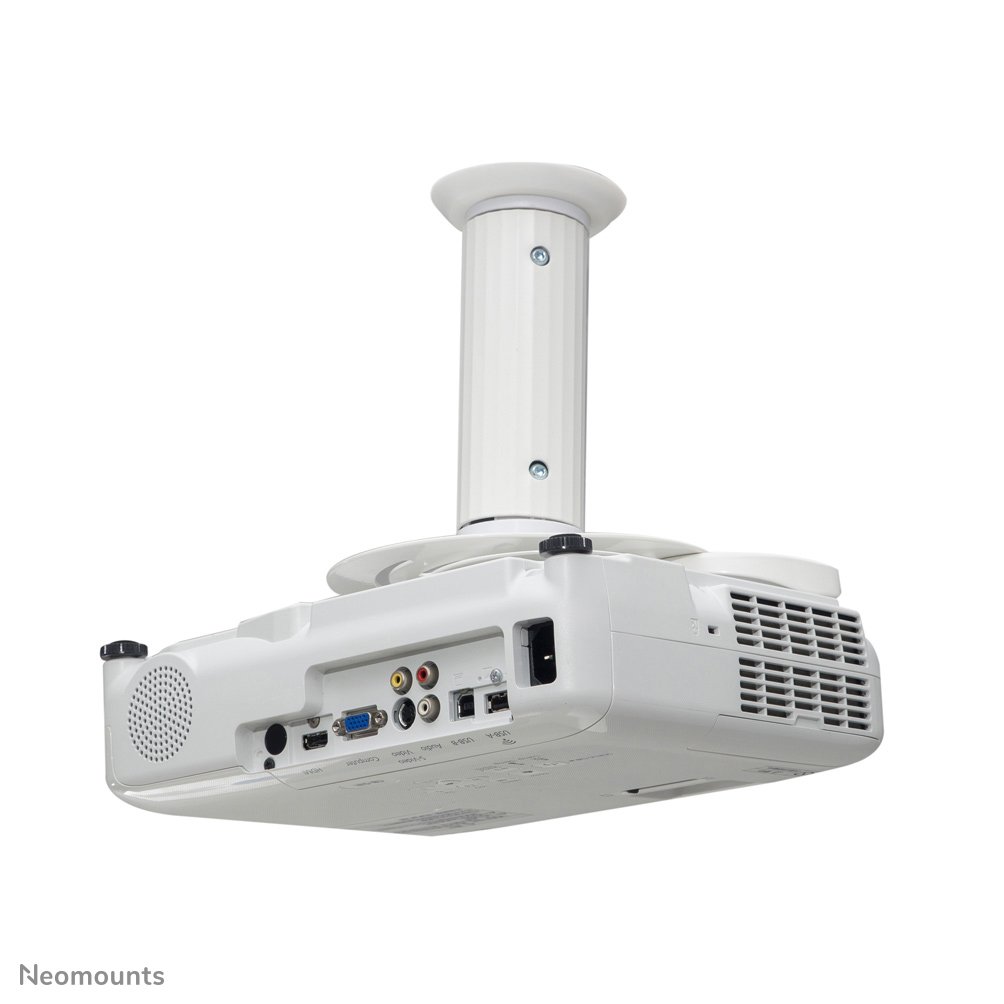

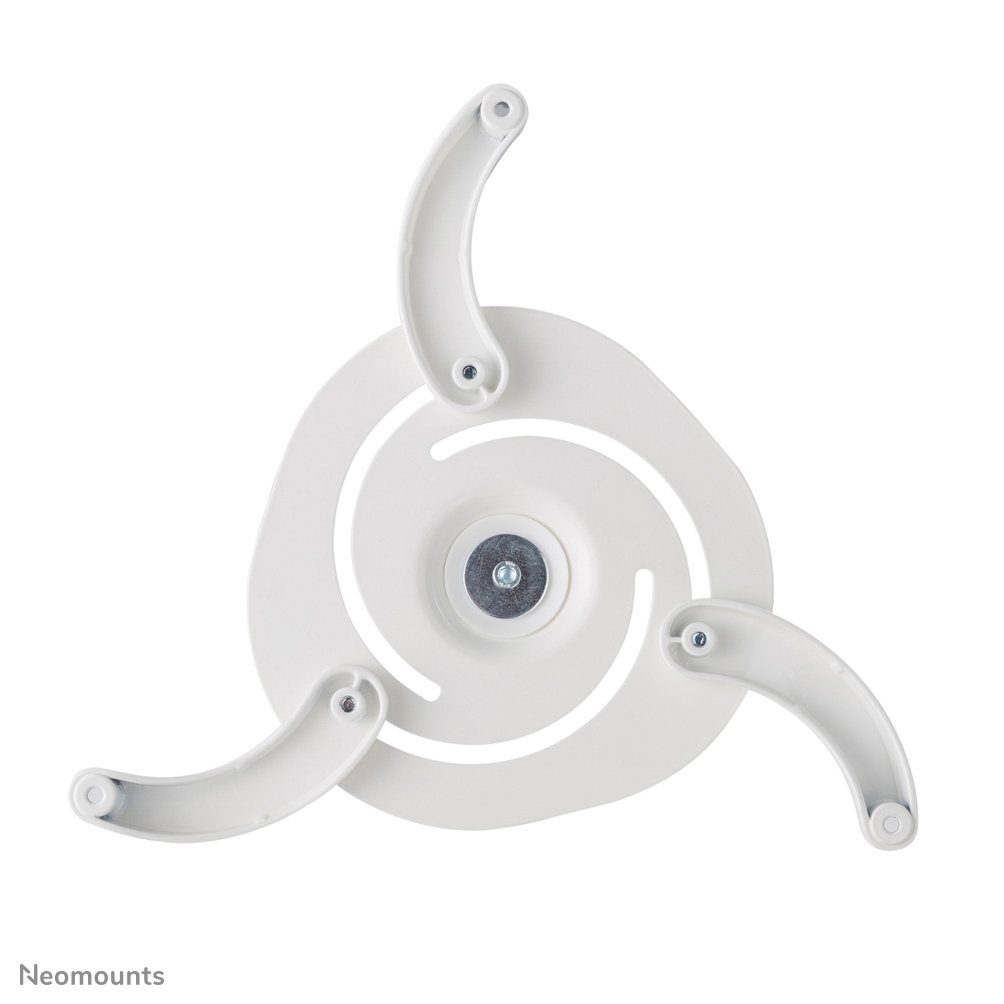

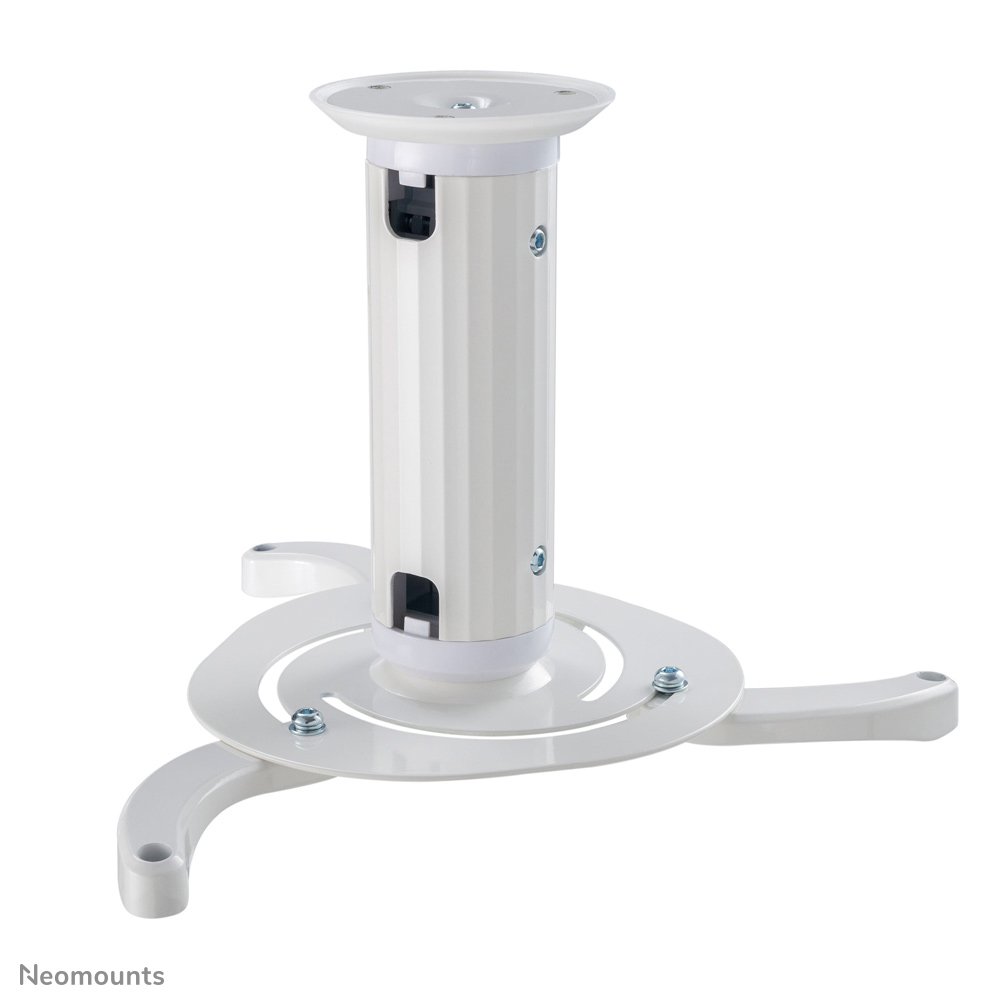

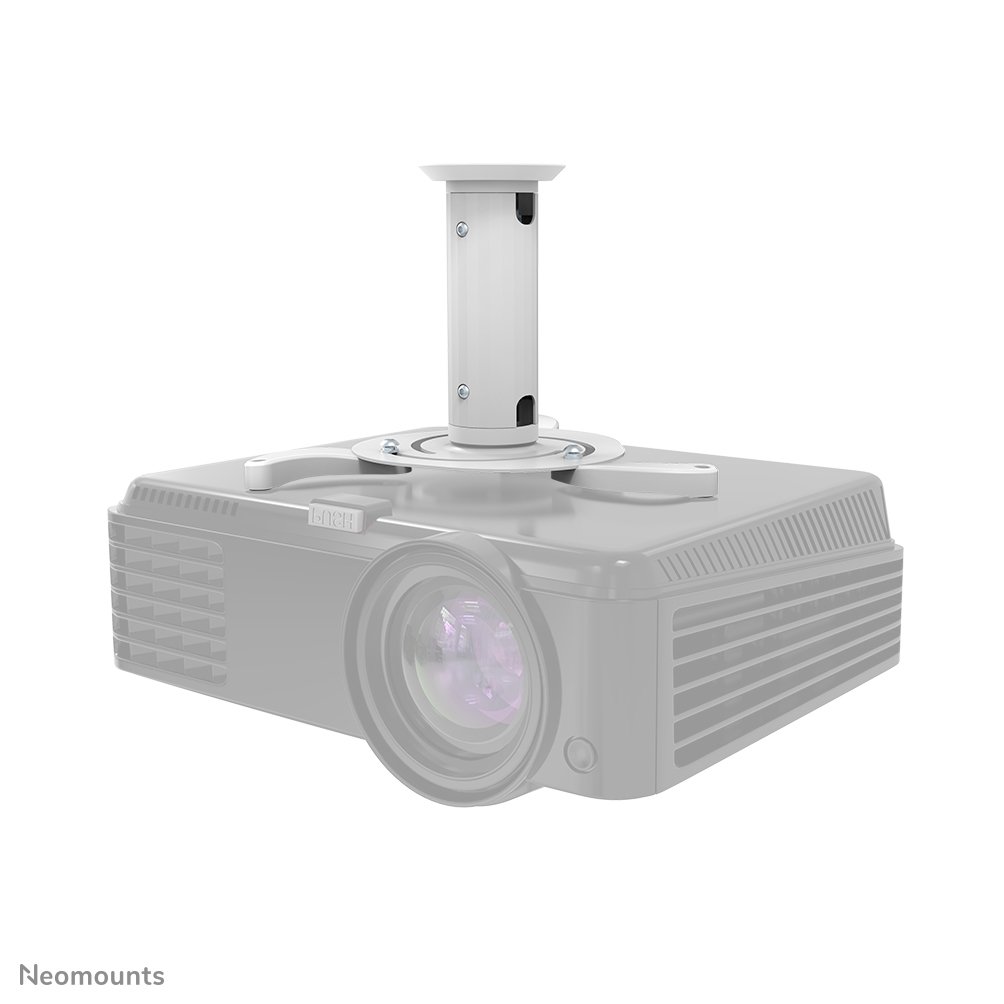

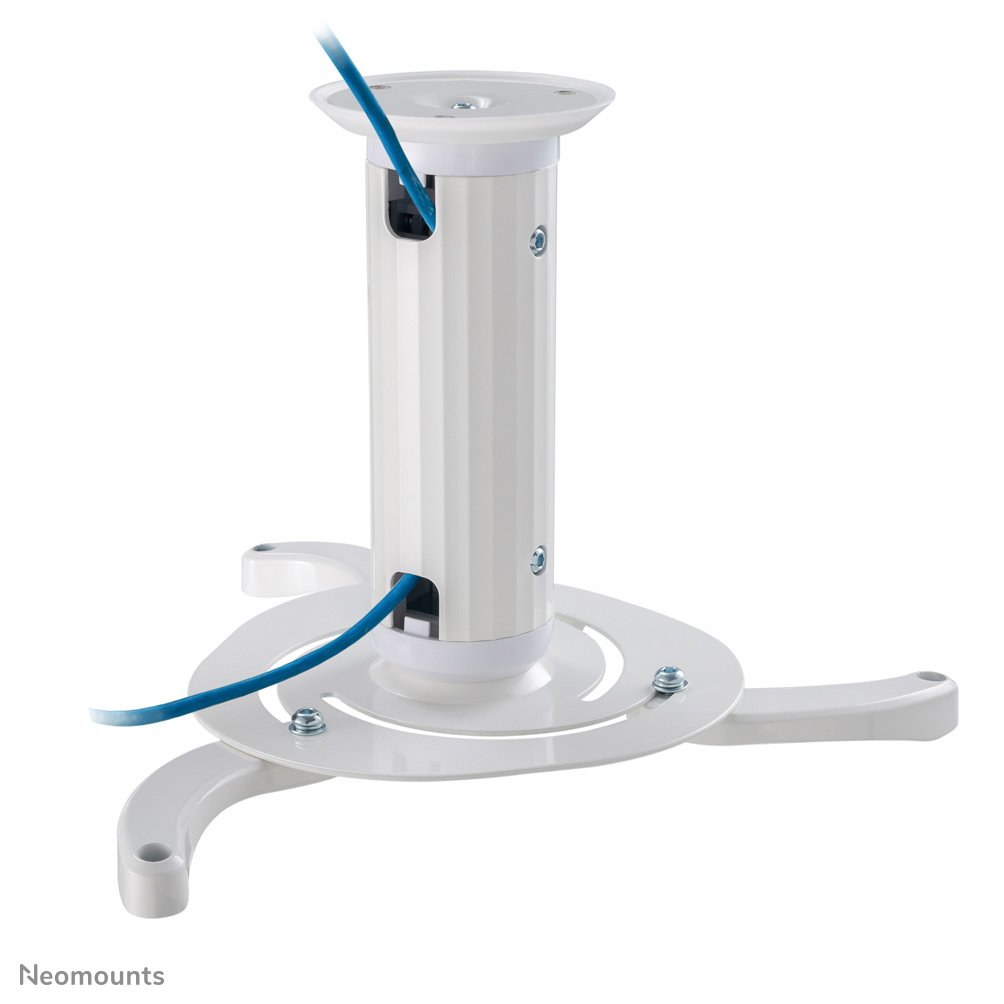

This versatile, ready to install mount, offers the convenience of installation to the ceiling without the need of additional accessories. Neomounts versatile tilt (30°), rotate and/or swivel (360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the projector. The mount is height adjustable from 13 to 20 centimetres. An innovative cable management conceals and routes cables from ceiling to projector. Hide your cables to keep the installation nice and tidy. Neomounts BEAMER-C80WHITE has two pivot points and is suitable for most projectors. The weight capacity of this product is 15 kilograms. This universal ceiling mount is easy to install and suitable for projectors using the mounting holes on the bottom side of the projector. The legs included with this mount, cover most projector hole patterns.
Specifications
| Max. weight (kg) | 15 |
|---|---|
| Mount | Ceiling |
| Type | Tilt, Rotate, Full motion |
| Tilt (degrees) | 30° |
| Rotate (degrees) | 360° |
| Height adjustment | 13-20 cm |
| Main material | Steel |
| Net weight of product (kg) | 1.18 |
| Gross weight of packaging (kg) | 1.2 |
| Country of origin | China |
| EAN code | 8717371444396 |
Use and tips
A projector mount is chosen on the weight of the unit and the projection distance you need, not only on the model. Identify the insert pattern under the projector, keep access to the filter and lamp for servicing, and check the structure before drilling.
Frequently asked questions
Is my screen compatible?
This model accepts 15 kg maximum. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure,our contact pageputs you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge:our Neomounts support pagetakes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
