Description

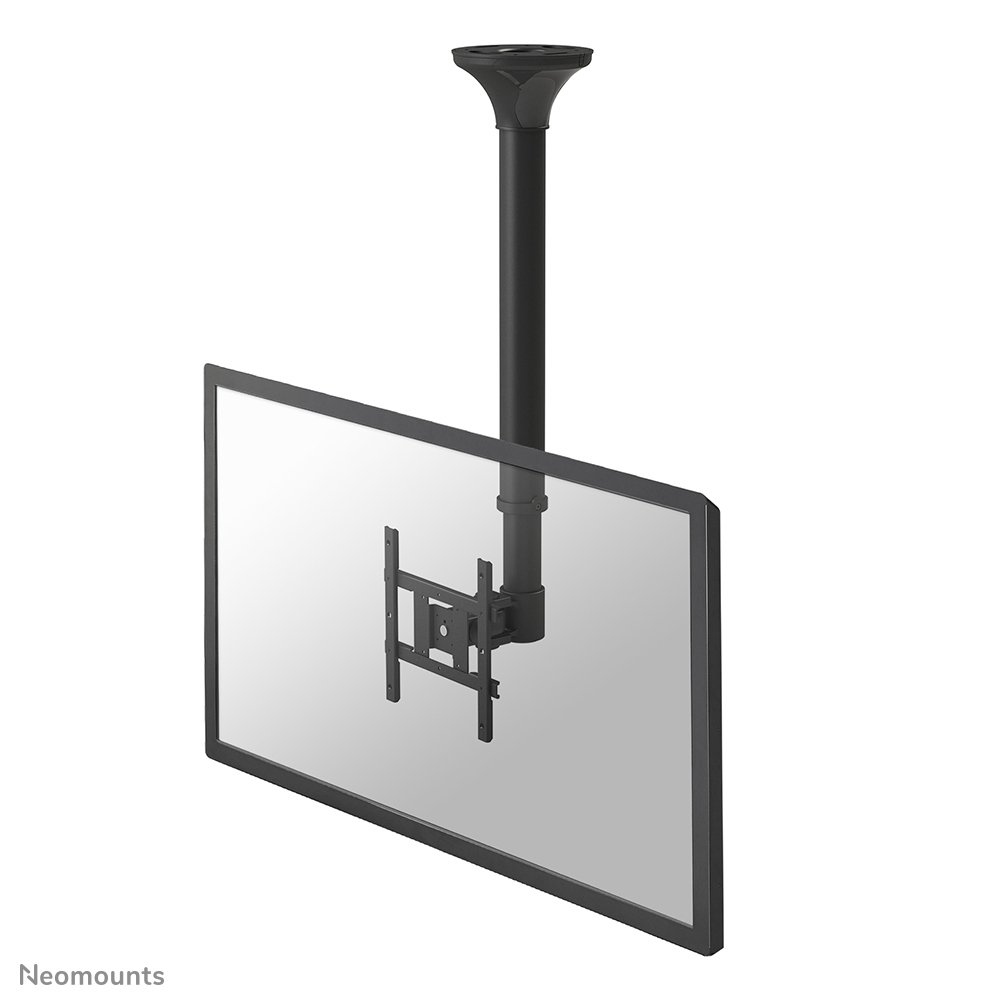

Neomounts versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 64 to 104 centimetres. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy. Neomounts FPMA-C200BLACK has two pivot points and is suitable for screens up to 40" (102 cm). The weight capacity of this product is 20 kg. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 to 200x200mm. Different hole patterns can be covered using Neomounts VESA adapter plates. All installation material is included with the product.
Specifications
| Min. screen size (inch) | 10 |
|---|---|
| Max. screen size (inch) | 40 |
| Max. weight (kg) | 20 |
| Screens | 1 |
| Min. VESA | 75x75 mm |
| Max. VESA | 200x200 mm |
| VESA pattern | 75x75, 100x200, 200x100, 100x100, 200x200 |
| Mount | Ceiling |
| Type | Tilt, Rotate, Swivel, Full motion |
| Tilt (degrees) | 180° |
| Rotate (degrees) | 360° |
| Swivel (degrees) | 180° |
| Height adjustment | 64-104 cm |
| Depth adjustment (cm) | 9 cm |
| Main material | Steel |
| Net weight of product (kg) | 5.83 |
| Gross weight of packaging (kg) | 4.5 |
| Country of origin | Taiwan |
| EAN code | 8717371444235 |
Use and tips
A ceiling mount is used where no wall is suitable: open plan areas, shop windows, circulation zones and double sided signage. Check the ceiling structure and the free height below the slab, and plan the cable run inside the pole to keep the installation tidy.
Frequently asked questions
Is my screen compatible?
This model accepts 10 to 40 inch, 20 kg maximum, VESA 75x75 to 200x200. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure, our contact page puts you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge: our Neomounts support page takes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
