Description

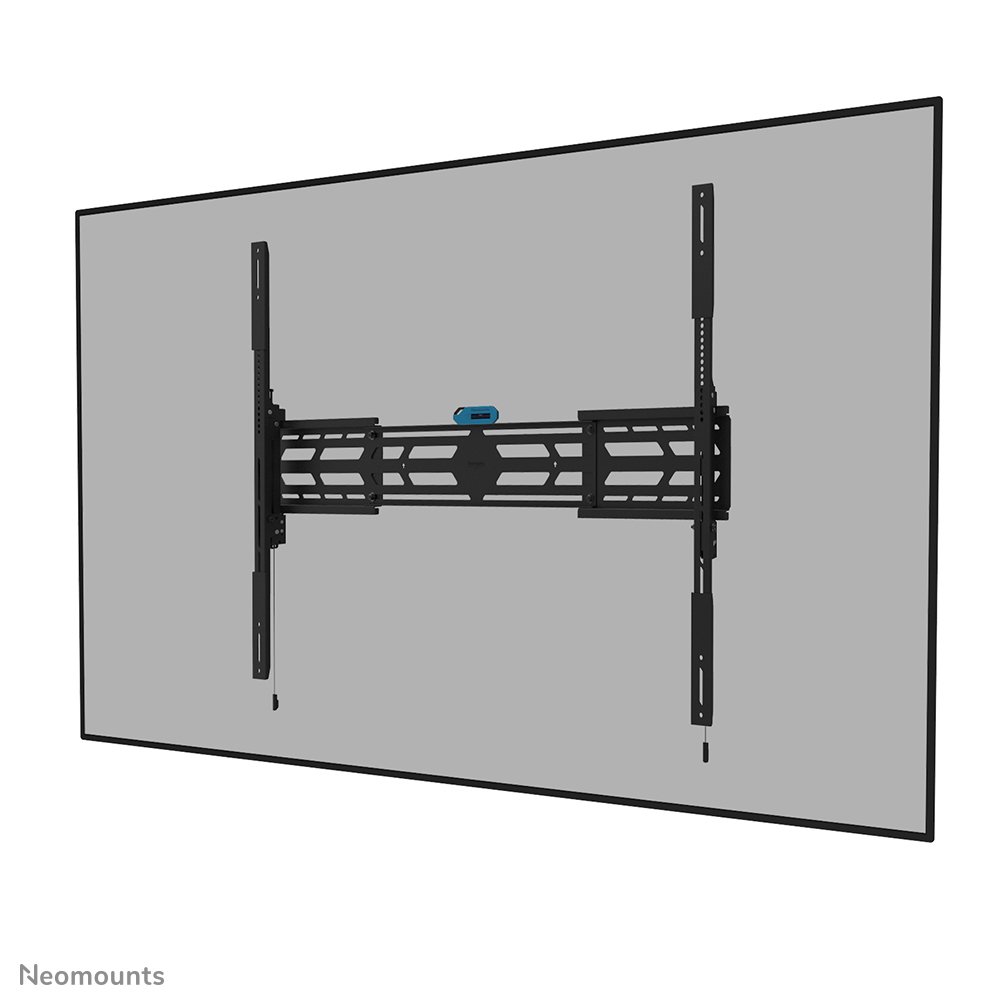

The mount features individual height adjustable brackets and level adjustment is available for the perfect installation. The WL30S-950BL19 has a depth of 6,5 cm and is, thanks to the included vertical extension brackets, suitable for screens that meet VESA hole pattern 100x100 to 1500x900 mm. Due to the unique extendable design, the mount can be adjusted to a wide range of screens dimensions; from 55" up to 115". It is possible to lock the mount using a padlock (not included). The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount to ensure easy installation of the mount.
Specifications
| Min. screen size (inch) | 55 |
|---|---|
| Max. screen size (inch) | 115 |
| Max. weight (kg) | 160 |
| Screens | 1 |
| Min. VESA | 100x100 mm |
| Max. VESA | 1500x900 mm |
| VESA pattern | 100x200, 200x400, 400x400, 400x600, 200x300, 300x300, 440x400, 500x400, 600x200, 600x300, 600x400, 680x300, 800x200, 400x300, 400x500, 600x500, 600x600, 800x500, 900x600, 200x100, 300x100, 1000x400, 1000x600, 460x640, 800x800, 100x150, 300x900, 1000x700, 350x350, 1200x600, 400x200, 1000x800, 1200x800, 1200x900, 1400x800, 1500x600, 500x500, 200x150, 100x100, 200x200, 300x200, 800x400, 1500x900, 800x600 |
| Mount | Wall |
| Type | Fixed |
| Rotate (degrees) | +3°, -3° |
| Height adjustment | 0-2 cm |
| Width adjustment (cm) | 89,3-160 cm |
| Width (cm) | 160 cm |
| Depth (cm) | 6,7 cm |
| Height (cm) | 93,6 cm |
| Distance to wall (cm) | 6,7 cm |
| Main material | Steel |
| Lockable | Lockable - Security screw included |
| Net weight of product (kg) | 10.15 |
| Gross weight of packaging (kg) | 11.7 |
| EAN code | 8717371449551 |
Use and tips
A wall mount frees the floor and the furniture completely, which makes it the most durable option for meeting rooms, receptions and digital signage. Identify the wall type before installation: concrete and solid brick take the supplied anchors, while a hollow partition or a metal stud frame needs suitable fixings and often a reinforcement.
Frequently asked questions
Is my screen compatible?
This model accepts 55 to 115 inch, 160 kg maximum, VESA 100x100 to 1500x900. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure, our contact page puts you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge: our Neomounts support page takes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
