Description

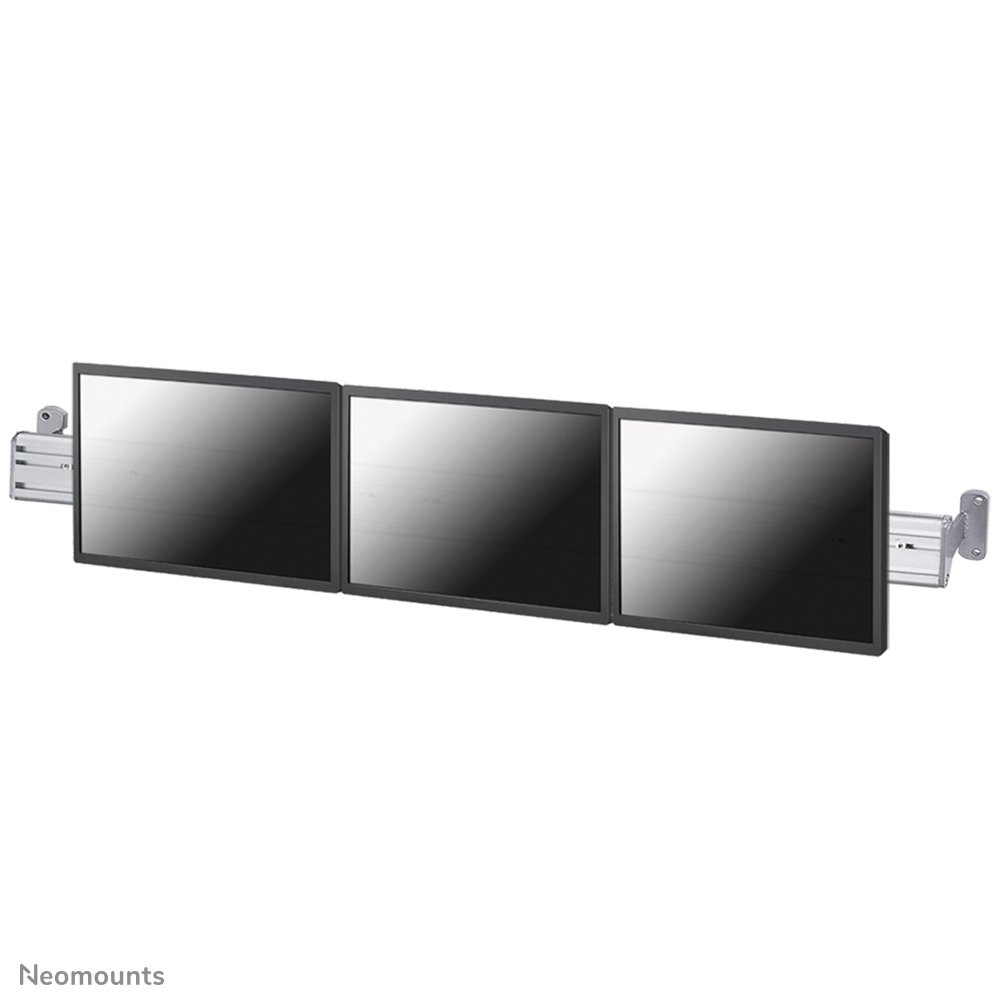

The toolbar wall rail is supplied without monitor bracket; these should be ordered separately. Each screen requires one bracket. There are various monitor brackets available that can be combined with the FPMA-WTB100 toolbar wall mount: * The FPMA-DTBW100 monitor bracket is 8 cm deep and can both tilt and rotate. Its maximum capacity is 8 kg. * The FPMA-DTBW200 monitor bracket is 12 cm deep and features a tilt, rotate and swivel option. The maximum capacity of this bracket is 10 kg. Both monitor brackets are suitable for screens with a VESA hole pattern of 75x75 and 100x100 mm. FPMA-WTB100 toolbar wall mount features cable clips so cables can be easily and neatly routed.
Specifications
| Min. screen size (inch) | 10 |
|---|---|
| Max. screen size (inch) | 24 |
| Max. weight (kg) | 10 |
| Screens | 3 |
| Min. VESA | 75x75 mm |
| Max. VESA | 100x100 mm |
| VESA pattern | 75x75 |
| Mount | Wall |
| Type | Fixed |
| Width adjustment (cm) | 130 cm |
| Depth adjustment (cm) | 6,5 cm |
| Main material | Aluminium |
| Net weight of product (kg) | 2.3 |
| Gross weight of packaging (kg) | 2.8 |
| Country of origin | Taiwan |
| EAN code | 8717371442422 |
Use and tips
A wall mount frees the floor and the furniture completely, which makes it the most durable option for meeting rooms, receptions and digital signage. Identify the wall type before installation: concrete and solid brick take the supplied anchors, while a hollow partition or a metal stud frame needs suitable fixings and often a reinforcement.
Frequently asked questions
Is my screen compatible?
This model accepts 10 to 24 inch, 10 kg maximum, VESA 75x75 to 100x100. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure, our contact page puts you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge: our Neomounts support page takes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
