Description

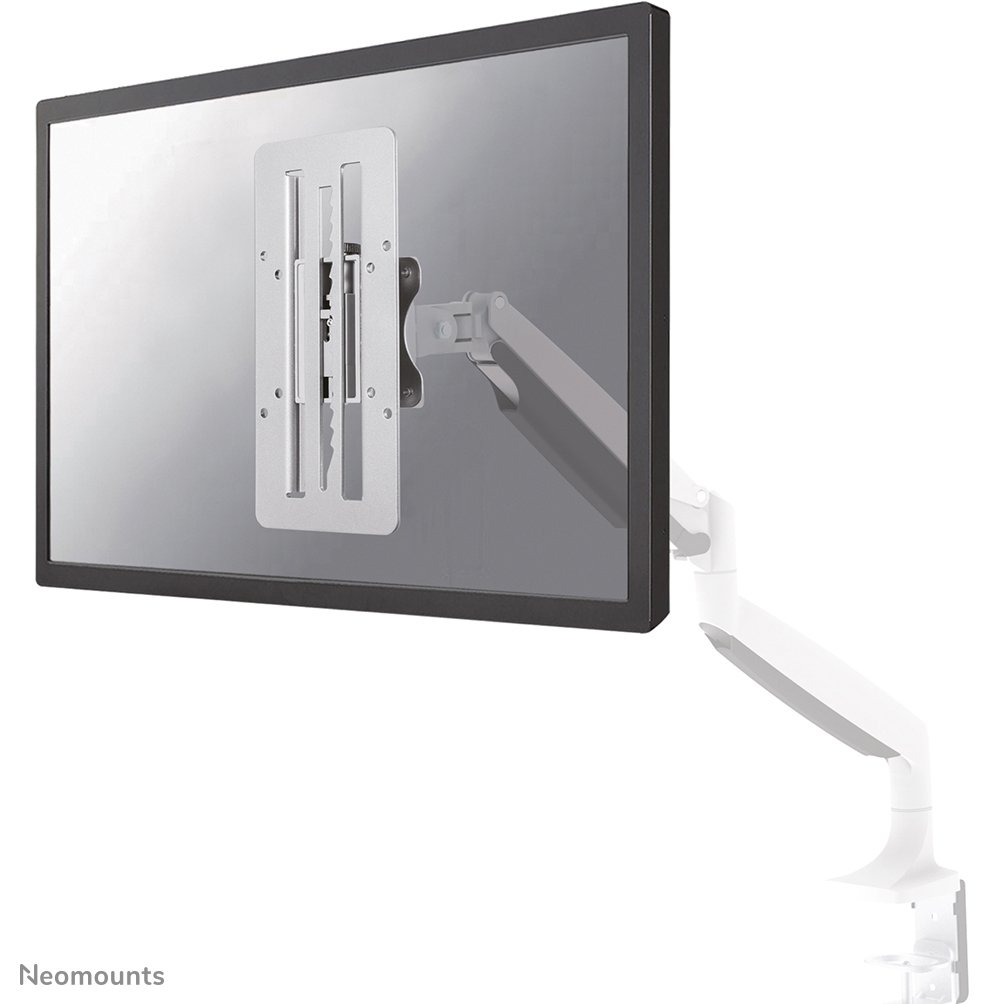

Ideal to combine with wall mounts, desk mounts, and ceiling mounts. Combinations with the keyboard tray are also possible. The height is adjustable from 0 to 17,7 cm. This offers maximum height range for the best viewing position. The FPMA-LIFT100 is suitable for screens up to 27" (68 cm). Weight capacity is 8 kg per screen. This product is suitable for screens with a VESA hole pattern 75x75 or 100x100 mm. Do you have a different (larger) hole pattern, you can solve this with one of our VESA conversion plates. All installation material is included with the product.
Specifications
| Max. weight (kg) | 8 |
|---|---|
| Screens | 1 |
| Min. VESA | 75x75 mm |
| Max. VESA | 100x100 mm |
| VESA pattern | 75x75, 100x100 |
| Type | Fixed |
| Height adjustment | 0-17,7 cm |
| Main material | Steel |
| Net weight of product (kg) | 0.66 |
| Gross weight of packaging (kg) | 1 |
| Country of origin | China |
| EAN code | 8717371444389 |
Use and tips
This accessory completes an existing installation and is chosen on dimensions first: check the mechanical compatibility with your mount and the load rating before ordering. If you are unsure about your setup, our contact page puts you in touch with our technical team.
Frequently asked questions
Is my screen compatible?
This model accepts 8 kg maximum, VESA 75x75 to 100x100. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure, our contact page puts you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge: our Neomounts support page takes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
