Description

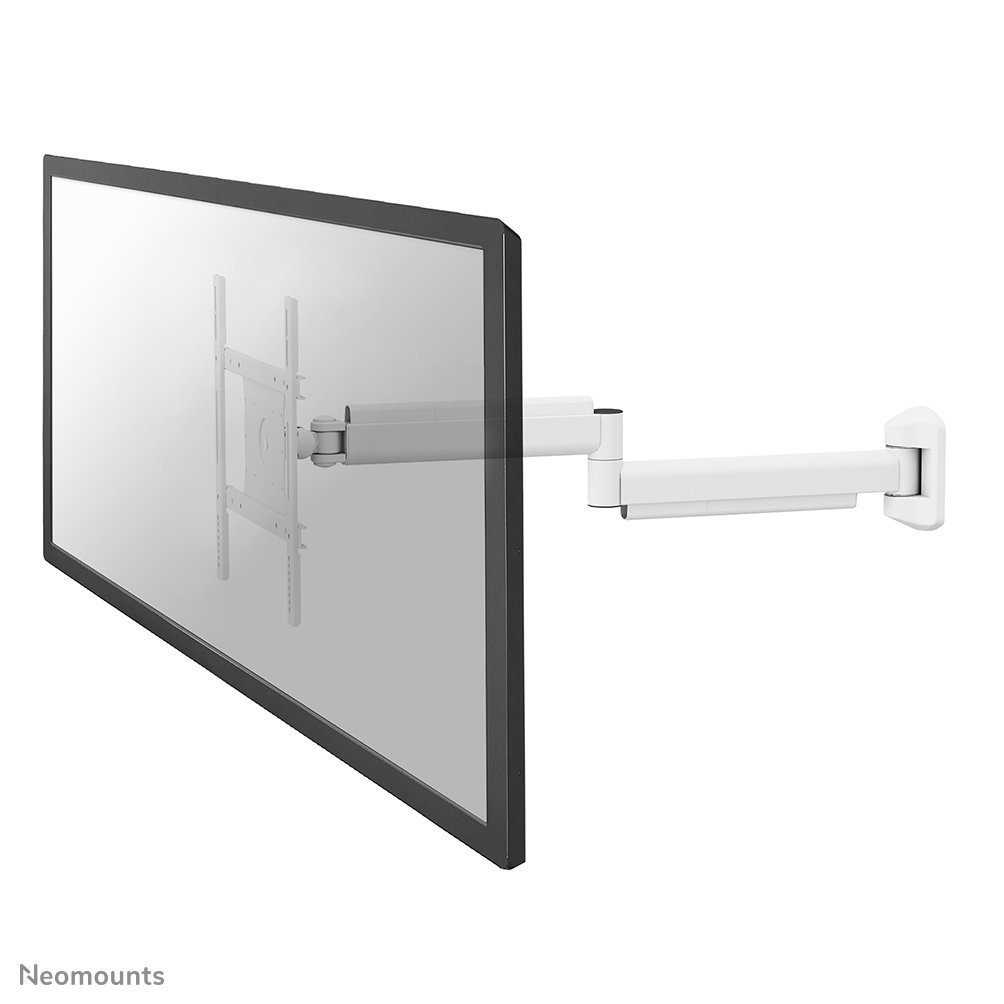

Neomounts' unique tilt (30°), turn (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily depth adjustable from 15 to 102 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. Neomounts FPMA-HAW050 has three pivot points and is suitable for screens up to 40" (102 cm). The weight capacity of this product is 10 kg. The wall mount is suitable for screens that meet VESA hole pattern 100x100 to 400x400mm. Different hole patterns can be covered using Neomounts VESA adapter plates. All installation material is included with the product.
Specifications
| Min. screen size (inch) | 10 |
|---|---|
| Max. screen size (inch) | 40 |
| Max. weight (kg) | 10 |
| Screens | 1 |
| Min. VESA | 100x100 mm |
| Max. VESA | 400x400 mm |
| VESA pattern | 100x200, 200x400, 400x400, 200x300, 300x300, 400x300, 200x100, 300x100, 400x200, 100x100, 200x200, 300x200 |
| Mount | Wall |
| Type | Tilt, Rotate, Swivel |
| Tilt (degrees) | 30° |
| Rotate (degrees) | 360° |
| Swivel (degrees) | 180° |
| Depth adjustment (cm) | 15-102 cm |
| Pivot points | 3 |
| Cable management | Yes |
| Main material | Steel |
| Net weight of product (kg) | 8.97 |
| Gross weight of packaging (kg) | 10 |
| Country of origin | Taiwan |
| EAN code | 8717371446925 |
Use and tips
Equipment for care environments is cleaned frequently: favour smooth surfaces with no recesses, compatible with the disinfectants used on site. Check the load rating with every peripheral fitted and the clearance needed for beds and trolleys to pass.
Frequently asked questions
Is my screen compatible?
This model accepts 10 to 40 inch, 10 kg maximum, VESA 100x100 to 400x400. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure, our contact page puts you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge: our Neomounts support page takes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
