Description

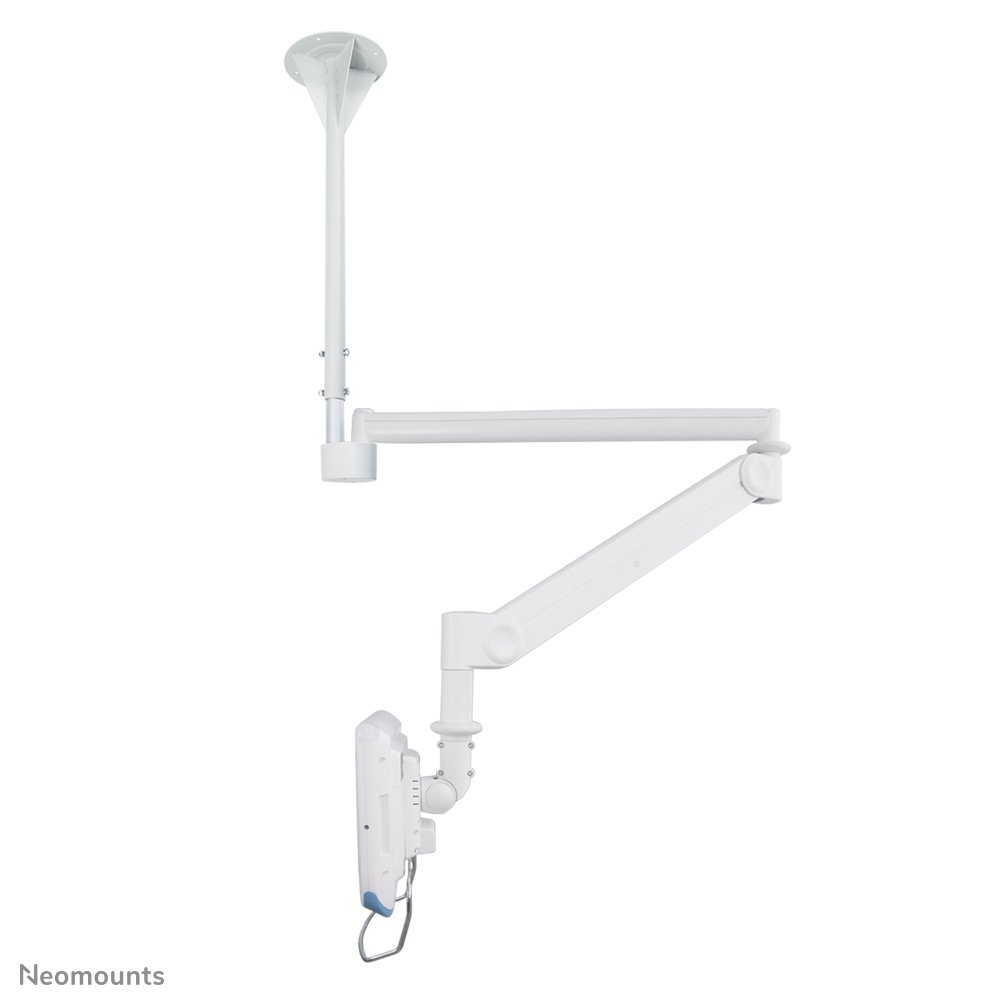

Neomounts versatile tilt (55°) and swivel (370°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 0 to 170 centimetres using a gas spring. Depth adjustable from 0 to 170 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. Neomounts FPMA-HAC100 has two pivot points and is suitable for screens up to 24" (61 cm). The weight capacity of this product is 6 kg each screen. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates. All installation material is included with the product.
Specifications
| Min. screen size (inch) | 10 |
|---|---|
| Max. screen size (inch) | 24 |
| Max. weight (kg) | 6 |
| Screens | 1 |
| Min. VESA | 75x75 mm |
| Max. VESA | 100x100 mm |
| VESA pattern | 75x75, 100x100 |
| Mount | Ceiling |
| Type | Tilt, Swivel, Full motion |
| Tilt (degrees) | 55° |
| Swivel (degrees) | 370° |
| Height adjustment | 0-170 cm |
| Depth adjustment (cm) | 0-189 cm |
| Pivot points | 3 |
| Main material | Aluminium |
| Net weight of product (kg) | 13.6 |
| Gross weight of packaging (kg) | 13.9 |
| Country of origin | Taiwan |
| EAN code | 8717371441081 |
Use and tips
Equipment for care environments is cleaned frequently: favour smooth surfaces with no recesses, compatible with the disinfectants used on site. Check the load rating with every peripheral fitted and the clearance needed for beds and trolleys to pass.
Frequently asked questions
Is my screen compatible?
This model accepts 10 to 24 inch, 6 kg maximum, VESA 75x75 to 100x100. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure, our contact page puts you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge: our Neomounts support page takes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
