Description

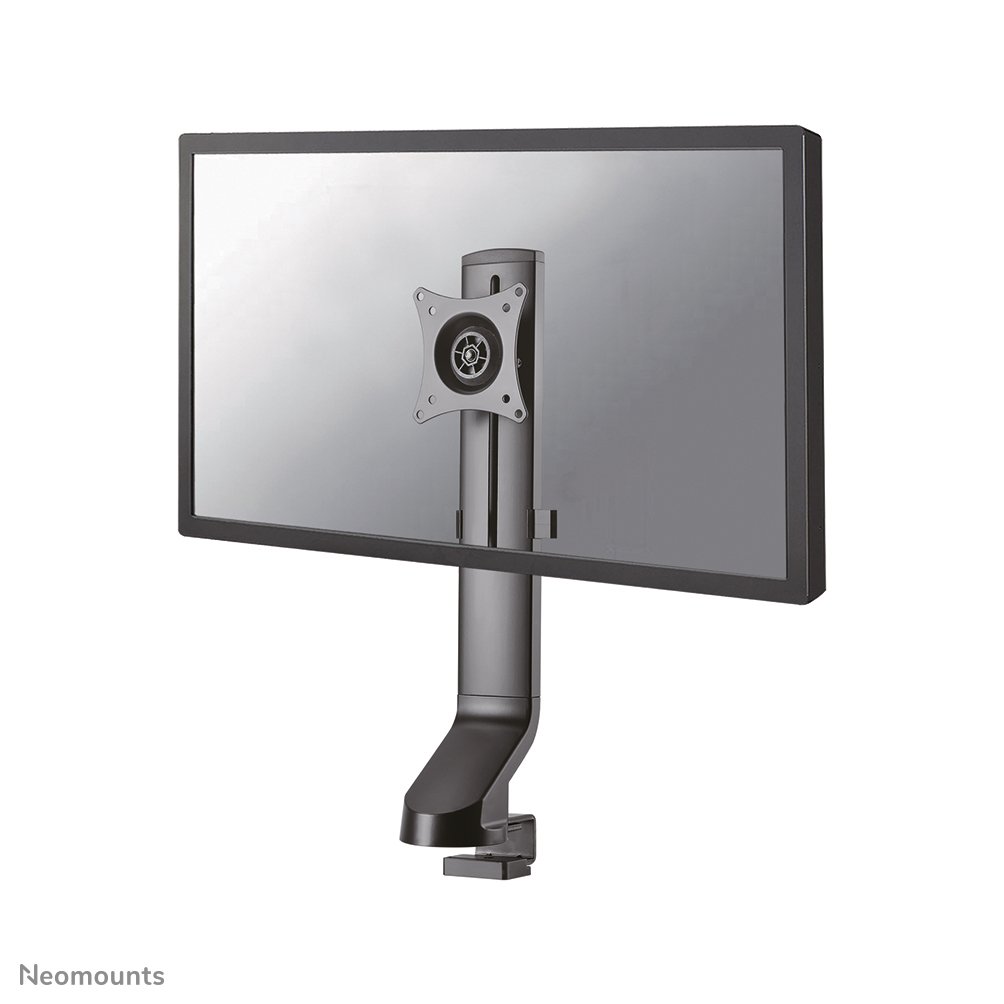

Neomounts' versatile tilt (20°), rotate (360°) and swivel (20°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 26 to 45 centimetres. Depth 5 centimetres. Neomounts FPMA-D860BLACK has one pivot point and is suitable for screens up to 32" (81 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates. By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area. All installation material is included with the product.
Specifications
| Min. screen size (inch) | 10 |
|---|---|
| Max. screen size (inch) | 32 |
| Max. weight (kg) | 8 |
| Screens | 1 |
| Min. VESA | 75x75 mm |
| Max. VESA | 100x100 mm |
| VESA pattern | 75x75, 100x100 |
| Mount | Desk |
| Desk mount | Grommet, Clamp |
| Type | Tilt, Rotate, Swivel, Full motion |
| Tilt (degrees) | +10°, -10° |
| Rotate (degrees) | +180°, -180° |
| Swivel (degrees) | +10°, -10° |
| Height adjustment | 26-45 cm |
| Depth adjustment (cm) | 5 cm |
| Clamp range | 2,5 cm |
| Pivot points | 1 |
| Cable management | Yes |
| Main material | Steel |
| Net weight of product (kg) | 2.08 |
| EAN code | 8717371446710 |
Use and tips
A desk arm frees up the work surface and puts the screen at the right height, which reduces neck and shoulder strain over a full day. Before buying, check the desk thickness and whether a grommet hole is available, and confirm that your screen weight stays within the stated range: a screen that is too heavy prevents the spring from holding its position.
Frequently asked questions
Is my screen compatible?
This model accepts 10 to 32 inch, 8 kg maximum, VESA 75x75 to 100x100. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure, our contact page puts you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge: our Neomounts support page takes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
