Description

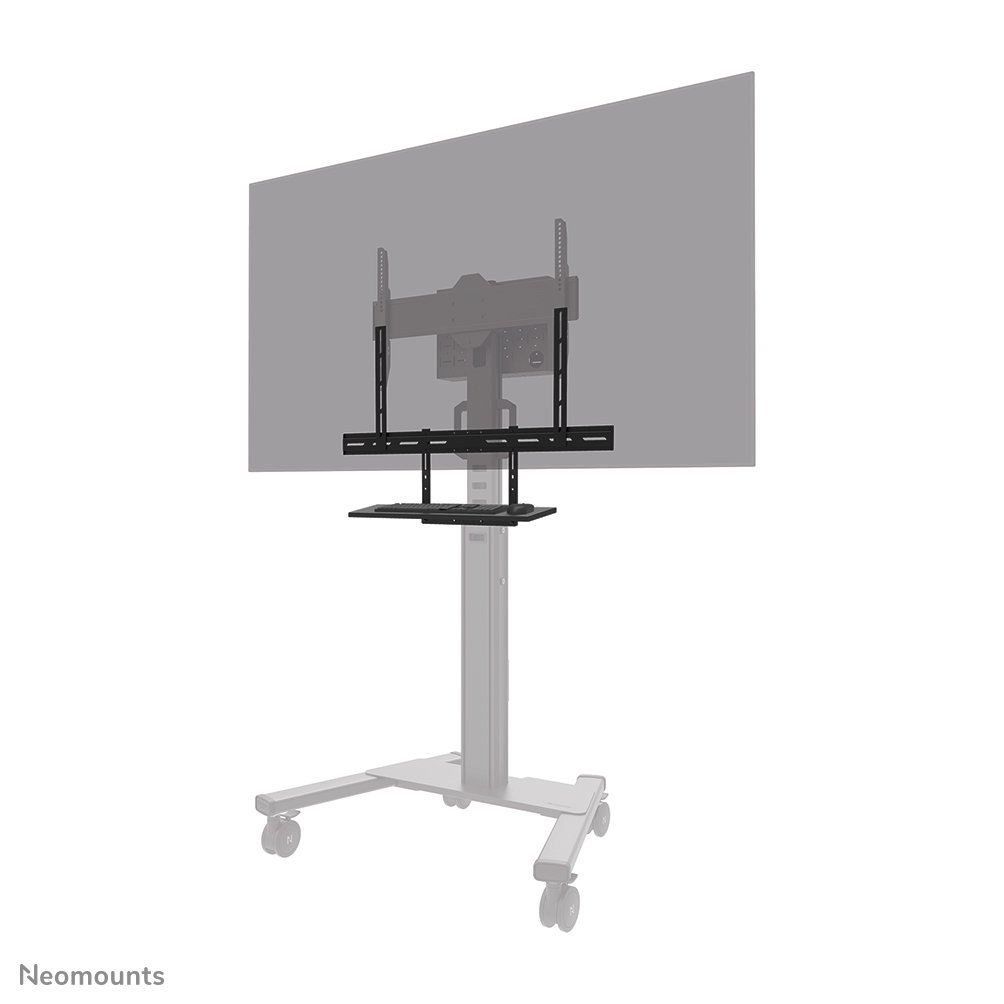

For optimal flexibility, both the shelf support and backplate brackets are height adjustable. The AV40-500BL mounting holes allow width and height variations, while the VESA frame adjusts in four positions (200/400/600/800). The kit is compatible with both wall and floor mounts. Installation is quick and straightforward, with ruler-guided alignment ensuring a precise and seamless fit. For detailed compatibility with specific models and mounting sizes, please consult the online manual.
Specifications
| Min. screen size (inch) | 43 |
|---|---|
| Max. screen size (inch) | 110 |
| Max. weight (kg) | 5.5 |
| Min. VESA | 200x200 mm |
| Max. VESA | 800x600 mm |
| VESA pattern | 200x400, 400x400, 400x600, 200x300, 600x200, 600x300, 600x400, 800x200, 400x300, 400x500, 600x500, 600x600, 800x500, 800x800, 400x200, 800x450, 200x200, 800x400, 800x600 |
| Height adjustment | 0-5,5 cm |
| Width (cm) | 90 cm |
| Depth (cm) | 27,9 cm |
| Height (cm) | 64 cm |
| Main material | Steel |
| Gross weight of packaging (kg) | 6.3 |
| Country of origin | China |
| EAN code | 8717371449407 |
Use and tips
This accessory completes an existing installation and is chosen on dimensions first: check the mechanical compatibility with your mount and the load rating before ordering. If you are unsure about your setup, our contact page puts you in touch with our technical team.
Frequently asked questions
Is my screen compatible?
This model accepts 43 to 110 inch, 5.5 kg maximum, VESA 200x200 to 800x600. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure, our contact page puts you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge: our Neomounts support page takes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
